NavLinkz r.LiNK RL4-NAC Manual

Video-inserter compatible with opel, citroen, peugeot and toyota vehicles with nac or rcc infotainment and 7inch or 8inch monitor

Advertisement

Quick Links

Opel, Citroen, Peugeot and Toyota vehicles
Video-inserter for front- and rear-view camera
Product features
• Video-inserter for factory-infotainment systems
• 1 CVBS Input for rear-view camera
• 1 CVBS Input for front camera
• 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Automatic front camera switching after reverse gear for 10 seconds
• Activatable parking guide lines for the rear-view camera (not available for all
vehicles)
• Video-in-motion (ONLY for connected video-sources)
• Video-inputs NTSC compatible
Version 02.12.2020
r.LiNK Video-inserter
RL4-NAC
Compatible with
with NAC or RCC infotainment
and 7inch or 8inch monitor
and two additional video inputs
HW: CAM(V100)/(V52)
RL4-NAC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the r.LiNK RL4-NAC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NavLinkz r.LiNK RL4-NAC

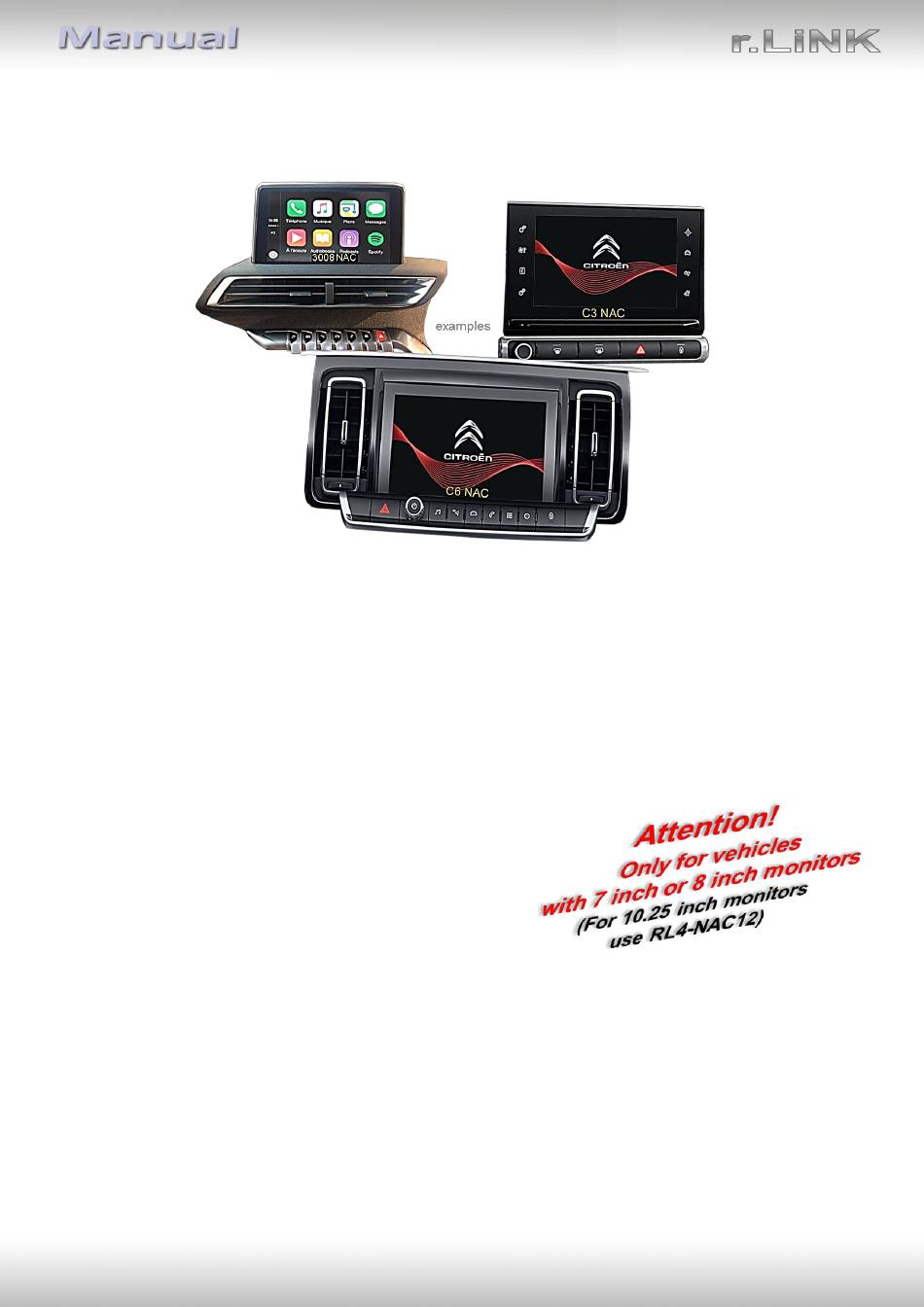

  • Page 1 r.LiNK Video-inserter RL4-NAC Compatible with Opel, Citroen, Peugeot and Toyota vehicles with NAC or RCC infotainment and 7inch or 8inch monitor Video-inserter for front- and rear-view camera and two additional video inputs Product features • Video-inserter for factory-infotainment systems • 1 CVBS Input for rear-view camera •...
  • Page 2: Table Of Contents

    Contents 1. Prior to installation 1.1. Delivery contents 1.2. Checking the compatibility of vehicle and accessories 1.3. Warning notes 1.4. Connection Video-Interface 1.5. Settings of the 8 Dip switches (black) 1.5.1. Adjustment – power supply output (dip 1) 1.5.2. Enabling the interface’s video inputs (dip 2-3) 1.5.3.
  • Page 3: Prior To Installation

    Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product. Apart from using this product in an unmoved vehicle, it should only be used to display fixed menus or rear-view- camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
  • Page 4: Checking The Compatibility Of Vehicle And Accessories

    1.2. Checking the compatibility of vehicle and accessories Compatibility Brand Compatible vehicles Infotainment systems Berlingo since model year 2019 C3 since model year 2017 C3 Aircross since model year 2018 NAC low/high (Continental), RCC (Bosch) C4 since model year 2018 Citroen C4 Picasso since model year 2017 C6 since model year 2016...
  • Page 5: Warning Notes

    1.3. Warning notes: Damage to the head-unit is possible, if this RL4-NAC interface is installed to older Citroen / Peugeot SMEG or SMEG+ head-units (by Magneti Marelli)! Use this RL4-NAC interface only on Citroen/Opel/Peugeot/Toyota head-units NAC (by Continental) or RCC (Bosch).
  • Page 6 1.4. Checking the head unit’s version Prior to installation, it has to be determined if whether the head-units version is a low version head-unit (single black male 4pin HSD on backside) Attention: Bosch Low Version requires different Dip 8 switch position (see following chapters) high version head-unit (double black male 4pin...
  • Page 7: Connection Video-Interface

    1.5. Connectors - Video-Interface The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface.
  • Page 8: Adjustment - Power Supply Output (Dip 1)

    1.6.1. Adjustment – power supply output (dip 1) If set to ON, the video interfaces’ red wire will supply +12V (max 3A) with engaging the reverse gear and additionally 10 more seconds delay for the time of the front camera’s back- switching after the reverse gear has been disengaged.
  • Page 9: Settings Of The 4 Dip Switches (Can Function - Red)

    1.7. Settings of the 4 Dip switches (CAN function - red) Dip position down is ON and position up is OFF. Navigation / Sy5tem Dip 1 Dip 2 Dip 3 Dip 4 NAC infotainments Set all 4 dips to OFF. After each Dip-switch-change a power-reset of the Can-box has to be performed! 2.
  • Page 10: Connection Schema

    2.2. Connection schema Version 02.12.2020 HW: CAM(V100)/(V52) RL4-NAC...
  • Page 11: Connection Picture Signal Cable

    2.3. Connections to the head-unit Remove the vehicle’s head unit 2.3.1. Connection picture signal cable 2.3.1.1. High version head unit (4 X 4pin HSD) Disconnect the vehicle harness’ female double 4pin HSD connector from the head unit’s rearside and connect it to the double 4pin HSD connector of the enclosed 4pin HSD harness.
  • Page 12: Low Version Head Unit (1 X 4Pin Hsd)

    2.3.1.2. Low version head unit (1 X 4pin HSD) Disconnect the single female 4pin HSD connector of the vehicle harness at the rearside of the head unit and connect it to the 4pin HSD connector„Low version HU – to vehicle harness“ of the enclosed 4pin HSD harness.
  • Page 13: Connection- Power / Can

    2.3.2. Connection – Power / CAN Disconnect the female PSA Quadlock connector at the rearside of the head unit and click out the green female 22pin connector of the female PSA Quadlock connector. Connect the singel four cables of the POWER / CAN cable to ACC and exactely to the 22pin connector’s shown chambers, as the vehicle’s cable colours may vary! Connect the power / CAN cable’s female 10pin connector to the 10pin connector of the video interface.
  • Page 14: Analog Power Supply For The Video Interface

    2.3.3. Analog power supply for the video interface Connect the female 12pin connector of the 12pin interface cable to the male 12pin connector of the video interface. Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V or to +12V S-contact terminal 86s +12V (e.g.
  • Page 15: Power Supply Output

    2.4. Power supply output The red power supply output ACC/front cam out 12V (max 3A) can be used to power an external source and has a different assignment depending on the position of dip switch 1 (of the black 8 dips): Function Dip 1 ON +12V (max.
  • Page 16: Connection - Video Sources

    2.5. Connection - video sources It is possible to connect two after-market video-sources, an after-market rear-view camera and an after-market front camera to the video-interface. Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of the video-interface. Connect the video RCA of the rear-view camera to the 12pin interface cable’s female RCA connector „Reverse...
  • Page 17: Audio Insertion

    2.5.1. Audio insertion This interface can only insert video signals into the factory infotainment. If an AV source is connected, the audio insertion has to be performed by a factory aux input or an FM modulator. The inserted video-signal can be activated simultaneously to each audio-mode of the factory infotainment.
  • Page 18: After-Market Rear-View Camera

    2.5.3. After-market rear-view camera Some vehicles have a different reverse gear code on the CAN-bus which the video-interface is not compatible with. Therefore, there are two different ways of installation. If the video interface receives a signal of the reverse gear, the green wire “Reverse-OUT”...
  • Page 19: Case 2: Video Interface Does Not Receive The Reverse Gear Signal

    2.5.3.2. Case 2: Video interface does not receive the reverse gear signal If the video interface does not receive +12V on the green wire of the 20pin cable when reverse gear is engaged (not all vehicles are compatible), an external switching signal from the reverse gear light is required.
  • Page 20: Connection - External Keypad

    2.6. Connection - external keypad Connect the keypad’s female 4pin connector to the video-interface’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 02.12.2020 HW: CAM(V100)/(V52) RL4-NAC...
  • Page 21: Picture Settings And Guide Lines

    2.7. Picture settings and guide lines The picture settings can be adjusted by the 3 buttons on the video-interface. Press the MENU button to open the OSD settings menu. To switch to the next menu item, pressing DOWN will change the selected value. The buttons are embedded in the housing to avoid accidental changes during or after installation.
  • Page 22: Interface Operation

    3. Interface operation 3.1. By Navi button A press of the infotainment’s “Navi”-button switches the input from factory mode to the inserted video sources. If, by dip switch setting, all inputs are enabled, the order is the following: → → →...
  • Page 23: Specifications

    3.2. By keypad Alternatively or additionally to the infotainment’s “Navi” button, the interface’s enabled inputs can also be switched by the external keypad. ➢ Long press of keypad (2-3 seconds) By long pressing the external keypad (2-3 seconds), the video interfaces witches the input from the factory video to the inserted video sources.
  • Page 24: Faq - Trouble Shooting

    FAQ – Trouble shooting Interface functions For any troubles which may occur, check the following table for a solution before requesting support from your vendor. Symptom Reason Possible solution Not all connectors have been reconnected to factory head- Connect missing connectors. unit or monitor after installation.
  • Page 25: Technical Support

    6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
