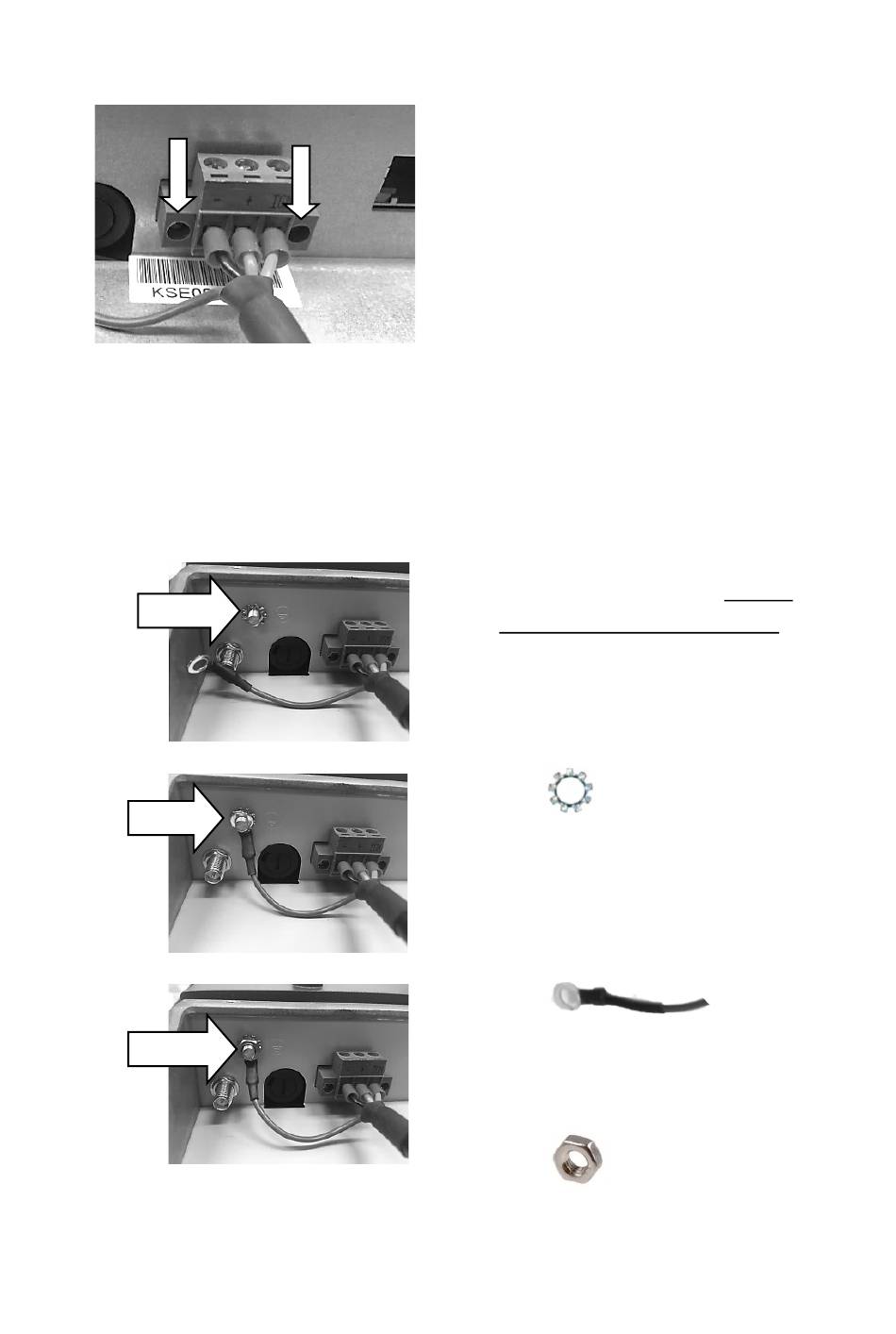

STEP 1: Plugging in and screwing on the power supply cable
STEP 2: Secure the ring tongue of the power supply cable to the
ground bolt (important for correct grounding!)
1
2
3
− Plug the power supply cable into the
power supply plug-in location.
− Tighten both mounting screws hand-
tight. The screws required for this are
already fixed in the delivered cable
plug.
NOTICE: To make sure the device
is grounding correctly, it is
important to follow the correct
order to put the components on the
ground bolt as below (from inside
to outside):
1. Place toothed washer first:
2. Then put the ring tongue of
the power supply cable (flat
side faces the DLT-V6210
connector panel):
Place the nut and tighten it
3.
hand-tight:
