7 Connect cables and cable cover

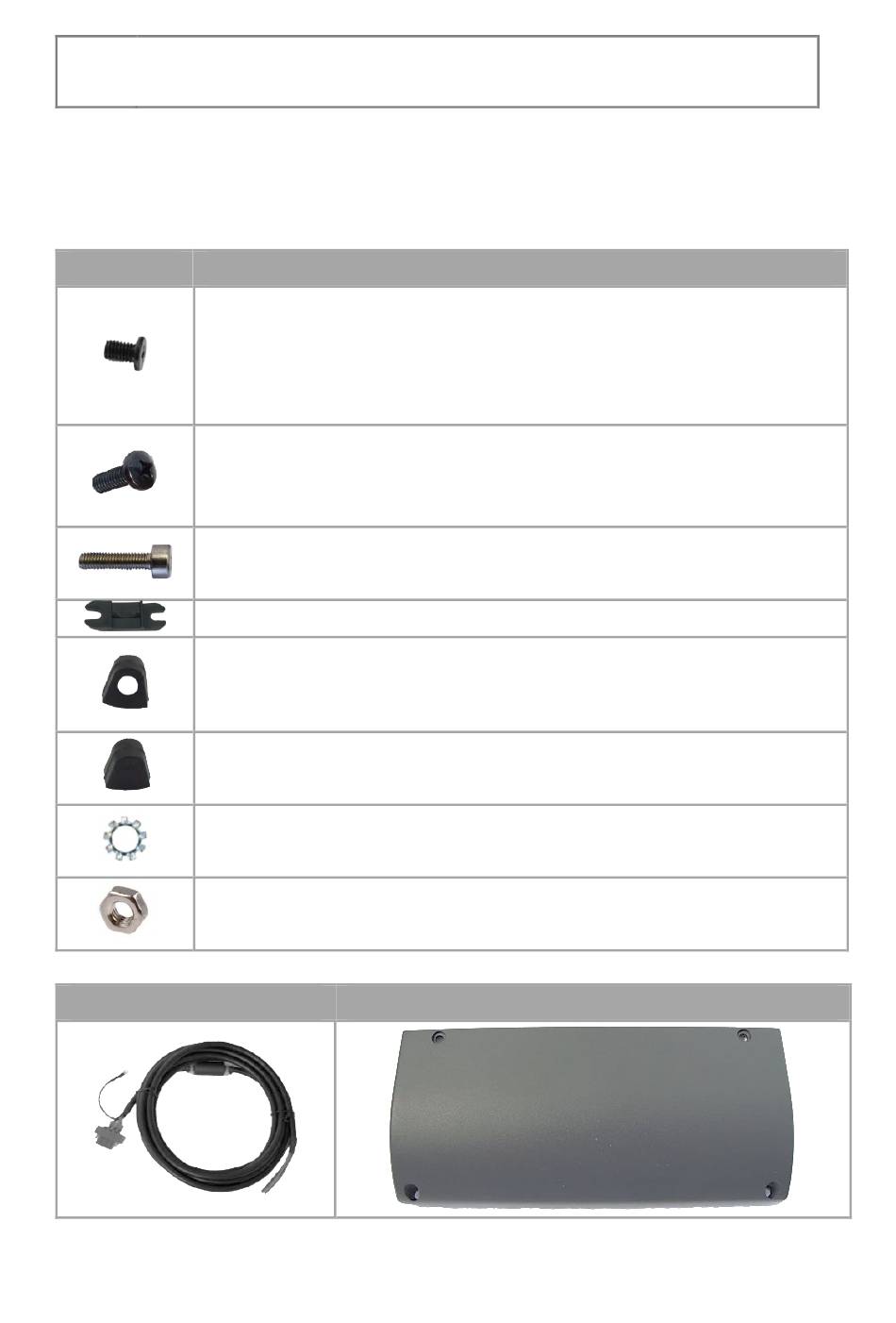

Parts required
NOTICE: Some screws and grommets delivered are spare parts.
Part Name / Purpose
Phillips screw, flat screw head, M3x5L F/S D=5.0 H=0.8
(1+)SUS BZn NK:
− For fixing the cable cover to the terminal
− For securing thinner cables to the terminal's strain relief rail
Phillips screw, middle round screw head, M3x10L R/S D=5.5
H=2.0 (2+)SUS BZn NK:
− For securing regular cables to the terminal's strain relief rail
Hexagon screw M3x12L H/S D=5.5 H=3 SUS/H Nylok:
− For securing thicker cables to the terminal's strain relief rail
Cable clip for securing the cables to the strain relief rail
Cable grommets which openings have different sizes; must be
attached to all cables before the cables are inserted into the
cable passages
Dummy grommets for sealing up unused cable passages
Tooth washer D=8.5 d=4.2 t=0.5 ST Ni
− For grounding the power supply cable
Nut (W) B=6 M4*0.7 H=2.5 ST Zn
− For grounding the power supply cable
Power supply cable
8
Cable cover
