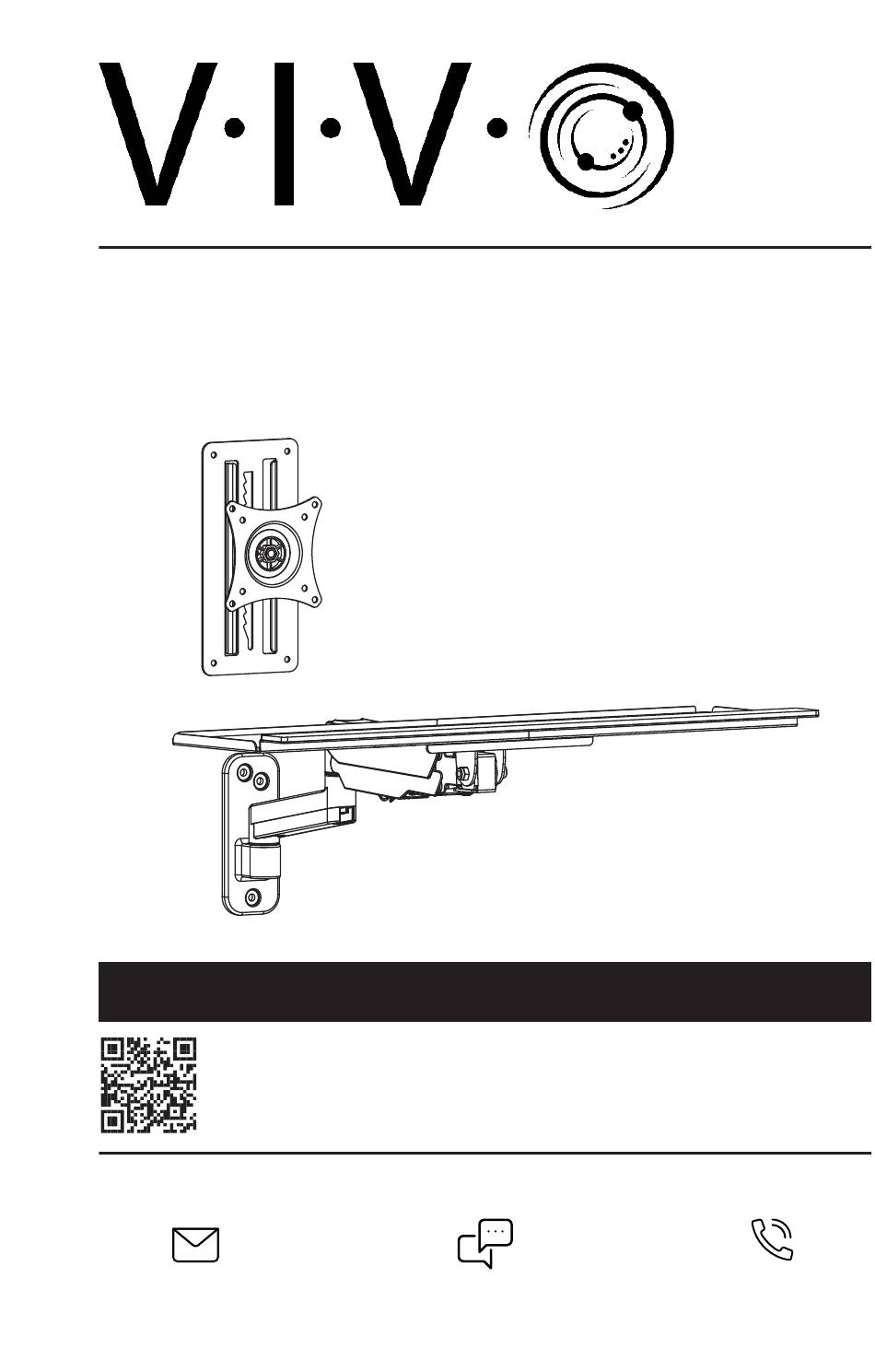

Single Monitor Wall Mount + Keyboard Tray Wall
Mount
Instruction Manual
SKU: MOUNT-VWKB1
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vwkb1
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo MOUNT-VWKB1
Summary of Contents for Vivo MOUNT-VWKB1
- Page 1 Single Monitor Wall Mount + Keyboard Tray Wall Mount Instruction Manual SKU: MOUNT-VWKB1 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vwkb1 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED Phillips Level Drill Pencil Socket Wrench Stud Finder Screwdriver ASSEMBLY STEPS STEP 1 Loosen the screw on Wall Mount (A) and slide off VESA Plate (A1). STEP 2 Place Wall Mount (A) against the wall at the desired location and mark drilling locations with a pencil. Use of a level is recommended. - Page 4 STEP 3 Assemble VESA Plate (A1) to the back of the monitor using Screws (M-A or M-B) and M5 Washers (M-C). STEP 4 Slide VESA Plate (A1) back into Wall Mount (A) and secure by retightening the screw. Raise the monitor by lifting up.
- Page 5 STEP 5 Wood Stud Installation Brick/Concrete Installation Use Arm (B) to mark mounting locations. Use of Use Arm (B) to mark mounting locations. Using a level and stud finder is recommended. Using a a 3/8” (10mm) bit, drill holes 2.4” (60mm) deep. Insert Concrete Anchors (W-B) into holes.
- Page 6 STEP 6 Insert Covers (G) into the mounting holes in Arm (B). STEP 7 Assemble Keyboard Tray (C) using Keyboard Tray Bracket (D) with M4x8mm Screws (S-A) and a Phillips screwdriver. STEP 8 Mount the keyboard tray assembly to Arm (B) using M4x12mm Flat Head Screws (S-B) and M4 Nuts (S-C).
- Page 7 STEP 9 Remove the adhesive backing from Wrist Pad (F) and place it on Keyboard Tray (C) along with Mouse Pad (E). STEP 10 Route cables through the cable management channels in Arm (B). Adjust the tilt of Arm (B) using 6mm Allen Wrench (T-A).
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
