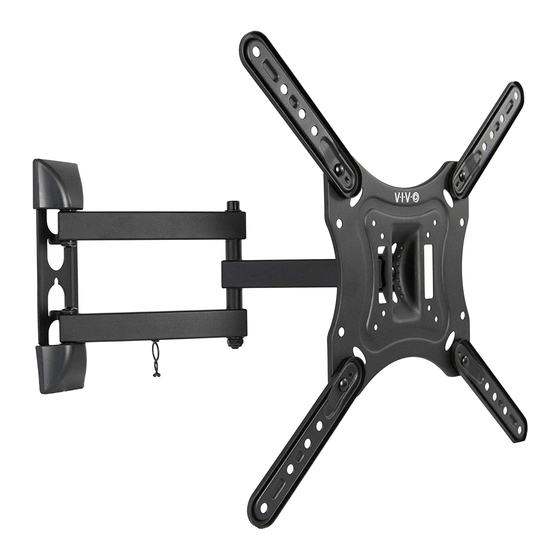

TV Wall Mount 75x75mm to 400x400mm
Instruction Manual
SKU: MOUNT-VW01E
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vw01e
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-VW01E
Summary of Contents for Vivo MOUNT-VW01E
- Page 1 TV Wall Mount 75x75mm to 400x400mm Instruction Manual SKU: MOUNT-VW01E Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw01e GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
- Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Wood Wall Use Mount (A) to mark mounting holes on wall where stud is located. Using a 3/16” bit, drill approximately 2.2” into marked locations. Screw top two Screws (W-A), making sure to leave 3mm of threads exposed.
- Page 4 STEP 2 Mount VESA Adapters (D) to VESA Plate using M6x15mm Screws (S-A) and M6 Nuts (S-B) in the apporpriate configuration to match your television mounting holes. 400m m 300m m 400m m STEP 3 After placing TV on a flat surface, mount VESA Plate (B) to back using appropriate Screws (M-A or M-B). Make sure top of the mount is facing the top of the TV.
- Page 5 STEP 3 (Continued) If Screws are too long, Spacers (M-C) may be required. Attach mount to TV with appropriate Screws and Spacers. STEP 4 Slide Mount (A) over two Screws (W-A) already inserted into wall and insert third Screw and Waser (W-C) into bottom hole.
- Page 6 STEP 5 Insert Plastic covers (B) as shown in the diagram. STEP 6 Attach Cable Clip (C) to bottom of Mount (A).
- Page 7 STEP 7 Run cables through Cable Clip (C) and adjust monitor to desired angle as shown in the diagram. +20° -20°...
