Summary of Contents for Vivo MOUNT-VWKB2

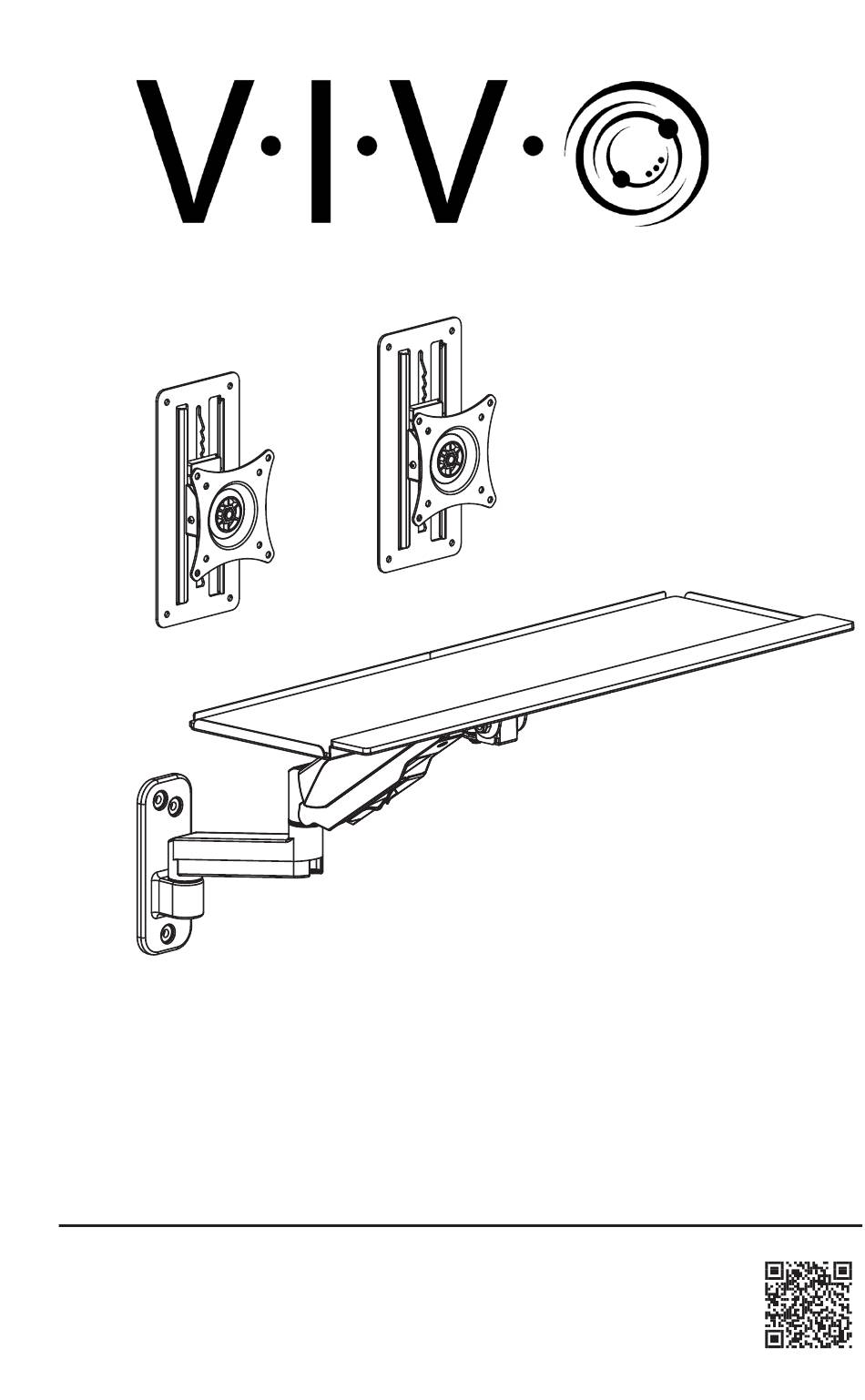

- Page 1 Dual Monitor Wall Mounts + Keyboard Tray Wall Mount SKU: MOUNT-VWKB2 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-vwkb2...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Monitor Mount
Monitor Mount Package Contents A (x2) Wall Mount Included Hardware & Tools M-A (x8) M-B (x8) M-C (x8) W-D (x8) M4x12mm Screw M5x12mm Screw M5 Washer ST4x30 Screw W-E (x8) Drywall Anchor Keyboard Tray C (x1) B (x1) D (x1) Left Keyboard Right Keyboard Tray... -
Page 4: Tools Needed
Included Hardware & Tools S-A (x4) S-B (x4) S-C (x4) W-A (x3) M4x8mm Screw M4x12mm Screw M4 Nut ST6.3x55mm Screw W-B (x3) W-C (x3) T-A (x1) T-B (x1) Concrete Anchor M6 Washer Wrench 6mm Allen Wrench Tools Needed Phillips Stud Level Pencil Drill... - Page 5 Monitor Mount ASSEMBLY STEPS STEP 1 Loosen the screw on the side of both Wall Mounts (A) and slide off VESA Plates (A1).
- Page 6 STEP 2 Place Wall Mounts (A) in the desired location against the wall and mark drilling locations with a pencil. Use of a level is recommended. Wood Wall: Drill 1.75” (45mm) deep holes using a 3/32” (2.5mm) drill bit. Drywall: Drill holes using a 5/16” - 25/64” (8 - 10mm) drill bit.
- Page 7 STEP 3 Assemble VESA Plate (A1) to the back of monitors using Screws (M-A or M-B) and M6 Washers (M-C). STEP 4 Slide VESA Plate (A1) back into Wall Mount (A) and secure by retightening the screw.
- Page 8 STEP 5 Raise monitors by lifting up. To lower, raise it up to the highest setting, then slowly lower it.
- Page 9 Keyboard Tray ASSEMBLY STEPS STEP 1 Wood Stud Installation Use Arm (B) to mark mounting locations. Use of a level and stud finder is recommended. Using a 3/16” (4.5mm) bit, drill holes 2.2” (55mm) deep.
- Page 10 Wood Wall - Cont’D Secure Arm (B) to the wall using ST6.3x55mm Screws (W-A) and M6 Washers (W-C). Proceed to Step 2 on Page 12...
- Page 11 Brick/Concrete Use Arm (B) to mark mounting locations. Use of a level is recommended. Using a 3/8” (10mm) bit, drill holes 2.4” (60mm) deep.
- Page 12 Brick/Concrete - Cont’D Insert Concrete Anchors (W-B) into holes. Secure Arm (B) to the wall using ST6.3x55mm Screws (W-A) and M6 Washers (W-C). STEP 2 ALL installation Types Insert Covers (J) into the mounting holes in Arm.
- Page 13 STEP 3 Assemble Left & Right Keyboard Tray Pieces (C,D) using Keyboard Tray Bracket (E) with M4x8mm Screws (S-A) and a Phillips screwdriver. Mount the keyboard tray assembly to Arm (B) using M4x12mm Flat Head Screws (S-B) and M4 Nuts (S-C). Tighten using Wrench (T-A) and a Phillips screwdriver.
- Page 14 STEP 4 Remove the adhesive backing from Wrist Pad (G) and place it assembed keyboard tray along with Mouse Pad (F). STEP 5 Route cables through the Cable Management Channels in Arm (B). Cable Management Channel...
-
Page 15: Height Adjustment
Height Adjustment Insert 6mm Allen Wrench (T-B) Position Arm Into Adjustment Screw Position the arm at desired height and firmly hold in place. Insert the 6mm Allen Wrench (T-B) in to the adjustment screw on the back of the monitor arm. Turn 10-20x to Set Monitor Height Turn 6mm Allen Wrench... - Page 16 LAST UPDATED: 04/12/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
