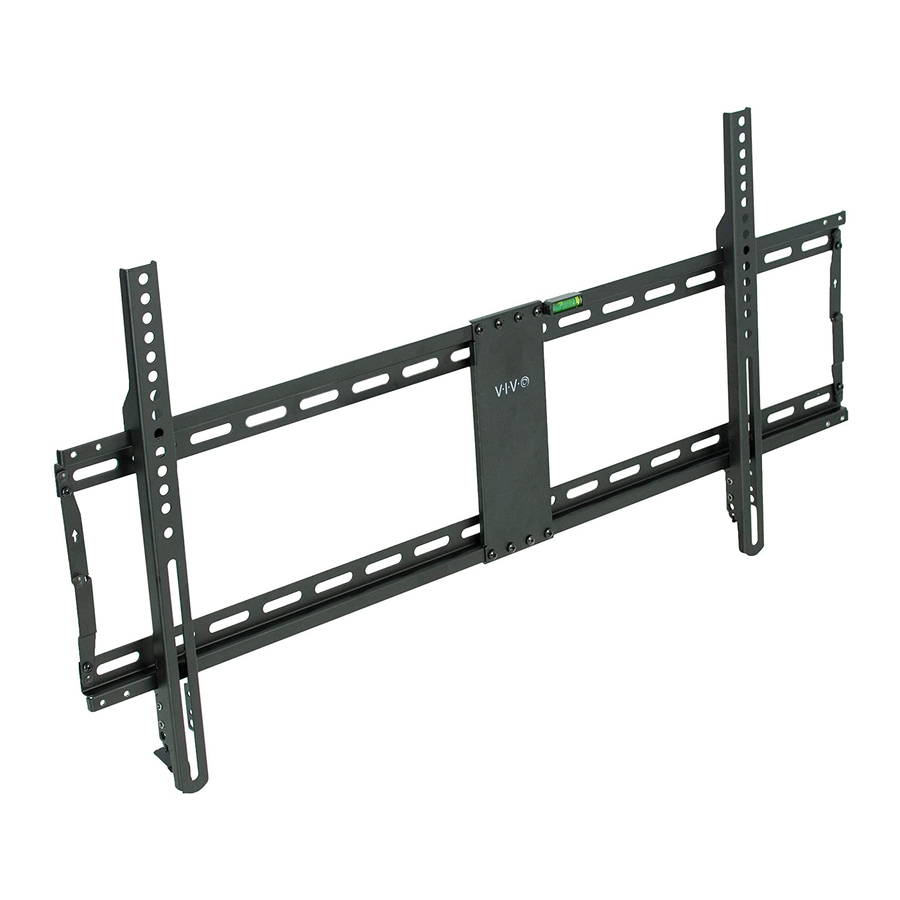

Ultra Heavy Duty TV Wall Mount
Instruction Manual
SKU: MOUNT-VW090F
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vw090f
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-VW090F
Summary of Contents for Vivo MOUNT-VW090F
- Page 1 Ultra Heavy Duty TV Wall Mount Instruction Manual SKU: MOUNT-VW090F Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw090f GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Extend Mounts (A) to full height and secure vertical arms with M4x6mm Bolts (E). Assemble mounts using Center Plate (B) and M5x6mm Bolts (C). - Page 4 STEP 2 OPTION A: Wood Wall 55mm 55mm 2”) 2”) Use mount (A) with Bubble Level (F) to ø 4.5mm mark drilling locations on wall where studs are located. Using a 5/32” (4mm) drill bit, drill holes at least 2.2” (55mm) deep into marked locations.
- Page 5 STEP 3 OPTION A: Flat Back TV Attach VESA Brackets (D) to back of TV using Bolts (M-A, M-B) and Washers (M-F, M-G) with a Phillips head screwdriver. M- F M- G OPTION B: Curved Back TV Attach VESA Brackets (D) to back of TV using Bolts (M-C, M-D, M-E), Washers (M-G) and Spacers (M-H, M-I) with a Phillips head screwdriver.
- Page 6 STEP 4 Hang TV with VESA brackets onto Mount, then push back until you hear a click from each bracket to indicate the locks are engaged. Keep pull cords hidden by attaching magnetic end to any part of the mount.
- Page 7 STEP 5 To remove TV, pull down on pull cords at the same time to release locks, then lift TV off from mount.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
