Akuvox R28A Quick Manual

Smart intercom
Hide thumbs Also See for R28A:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

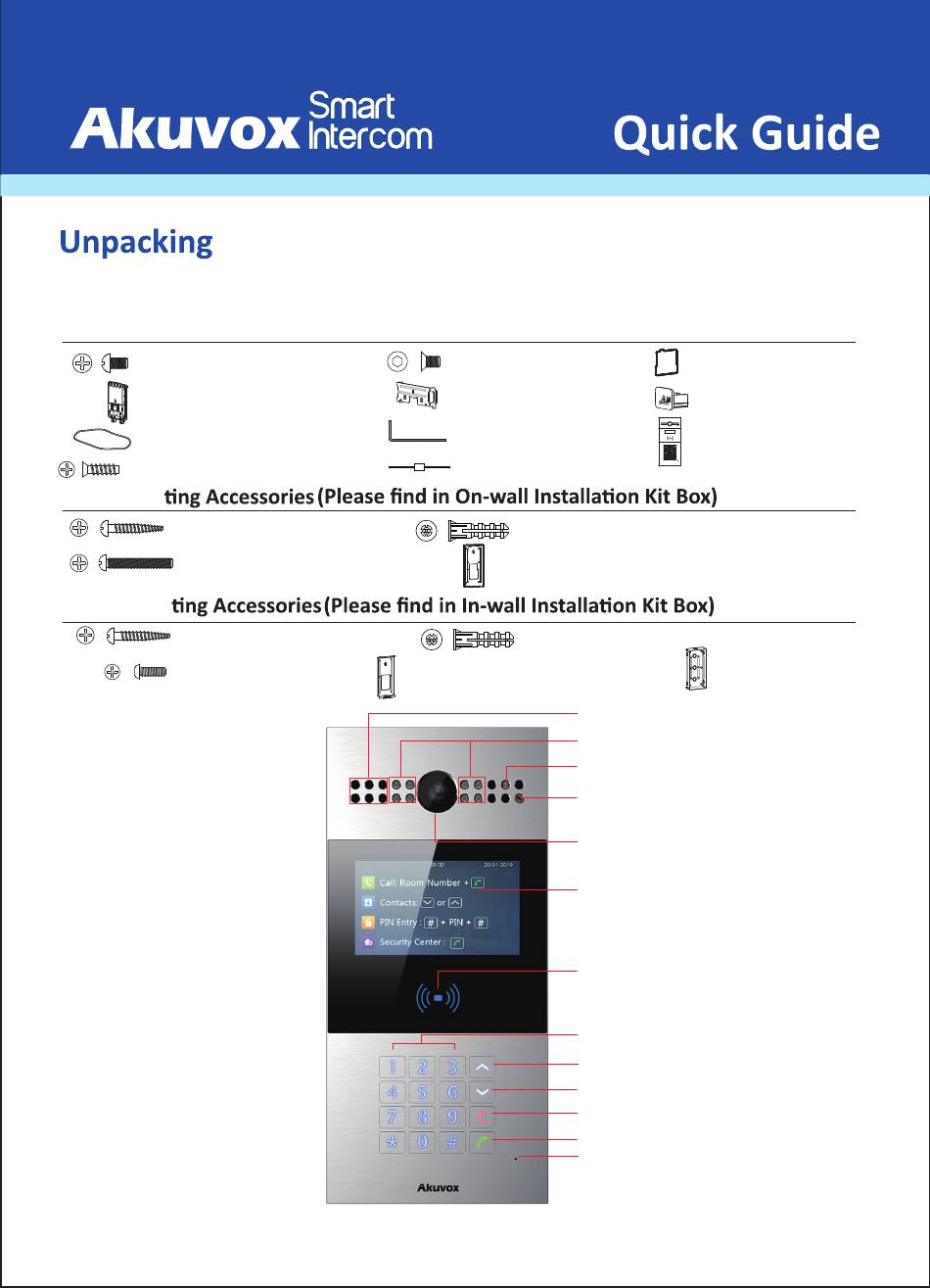

Before you begin using the device, please check the version you got and ensure
that the following items are included in the shipped box:
Mainframe
Accessories:
M3x5 crosshead screw x 4
Wiring cover x 1
Rope x 1
ST1.7x4 crosshead screw x 2
Wall moun
ST4x20 crosshead screw x 6
M4x30 crosshead screw x 2
Flush moun
ST4x20 crosshead screw x 6
M4x10 crosshead screw x 6

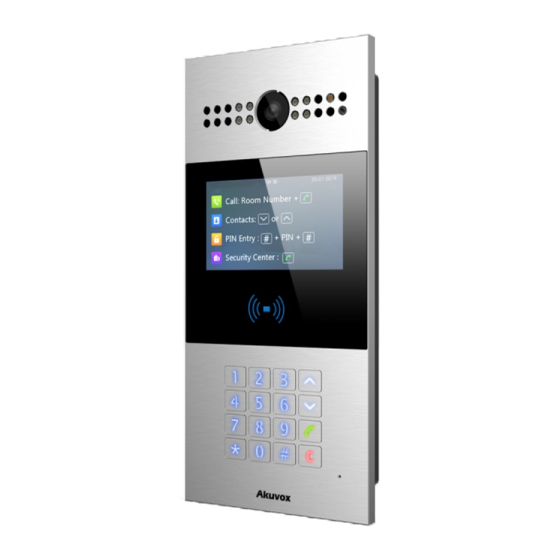

Product Overview
M3x6 hex socket screw x 2
Sealing pressing plate x 1
Allen wrench x 1
Diode
x
3
Plastic wall anchor x 6
Wall-mounting box x 1
Plastic wall anchor x 6
Flush-mounting bracket x 1
Speaker
Infrared LED
Photosensitive Sensor
Infrared Sensor
Camera
Screen
Card Reader
Numerical Keypad
Page Up Key
Page Down Key
Clear Key
Dial Key
Mic
R28A
R28A
Sealing ring x 1
Rubber Plug (S,M,L) x3
R28A x 1
:
:
Flush-mounting box x 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the R28A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akuvox R28A

Summary of Contents for Akuvox R28A

  • Page 1 Sealing pressing plate x 1 Rubber Plug (S,M,L) x3 Wiring cover x 1 Rope x 1 Allen wrench x 1 R28A x 1 Diode ST1.7x4 crosshead screw x 2 Wall moun ST4x20 crosshead screw x 6 Plastic wall anchor x 6...

  • Page 2: Installation Environment

    R28A Installation Environment Indoor and outdoor installation are supported. If installing the device outdoors, please don't place device under direct sunlight, it will bring a bad effect or be broken with the high temperature. If installing the device indoors, please keep device at least 2 meters away from light, and at least 3 meters away from window and door .
  • Page 3 R28A Flush Moun Insert the flush-mounting box into the hole and Dig out a square hole Take down the flush-mounting (height*width*depth=262.5*121*60 mm) . make sure the cables of the device can route box, then use a hand drill with through the cable hole. Then mark the six...
  • Page 4 Step 2: Wiring cover Installa For convenient wiring, hang Use four M3x5 crosshead screws Make cables go through the wiring cover, R28A on the wall-mounting connecting to the corresponding interfaces of the to fix the wiring cover. box/ flush-mounting bracket main board.

  • Page 5: Device Wiring

    R28A Application Network Topology SIP Video Phone Network Video Recorder (third party) (third party) R28A R28A R28A R28A Device Wiring Warning When you connect a device containing a coil, such as a relay or an electromagnetic lock, it is necessary to protect the intercom against voltage peak while switching off...
  • Page 6 Place the predefined RF Card in the card reader area to open the door. Notice Information Akuvox R28A firmware contains third-party open source software under the terms of the GNU General Public License(GPL). Akuvox is committed to meeting the requirements of the GNU General Public License (GPL) and will make all required source code available.
