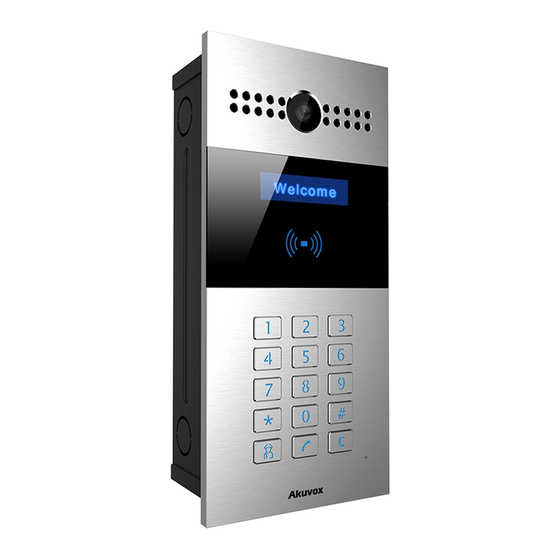

Akuvox R27A Quick Start Manual

Door entry phones
Hide thumbs Also See for R27A:
Table of Contents

Advertisement

Quick Links

Download this manual

Table of Contents

1.
PHYSICAL INSTALLATION .......................................................................................................................................................................... 2
2.
THE R27A CONNECTOR TERMINALS ON THE BACK SIDE: .............................................................................................................. 6
3.
WIRING POWER SUPPLY ............................................................................................................................................................................. 7
4.
THE IP ADDRESS ............................................................................................................................................................................................ 8
5.
WIRING DOOR STRIKE, LOCK OR MAGNETIC LOCK .......................................................................................................................... 8
6.
CONFIGURATION FOR RELAYA ................................................................................................................................................................. 9
7.
EXTRA RELAY SETTINGS .......................................................................................................................................................................... 10
8.
WIRING REQUEST TO EXIT PUSH BUTTON ........................................................................................................................................ 10
9.
10. CALL CONFIGURATION EXAMPLE 1 | LOCAL RELAY ON R27A .................................................................................................... 11
11. CALL CONFIGURATION EXAMPLE 2 | LOCAL RELAY C315 ........................................................................................................... 15
12. LOCAL ACCESS CONTROL .......................................................................................................................................................................... 16
13. ACT ENTERPRISE INTEGRATION ON WIEGAND 32 BIT ................................................................................................................. 19
14. SPC INTEGRATION ON WIEGAND 32 BIT AND WIEGAND 56 BIT ............................................................................................... 20
15. TROUBLESHOOTING .................................................................................................................................................................................. 21
16. NOTES .............................................................................................................................................................................................................. 22
SUPPORT INFORMATION
Door Entry Phones
Akuvox R27A
Quick Start Guide
Rev 01 /2019 EN
BASIC
 
Skills:
25/11/2019
  

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R27A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akuvox R27A

Summary of Contents for Akuvox R27A

  • Page 1: Table Of Contents

    WIRING REQUEST TO EXIT PUSH BUTTON ............................10 CONFIGURATION FOR INPUT “DOORA” .............................. 11 10. CALL CONFIGURATION EXAMPLE 1 | LOCAL RELAY ON R27A ....................11 11. CALL CONFIGURATION EXAMPLE 2 | LOCAL RELAY C315 ......................15 12. LOCAL ACCESS CONTROL ..................................16 13.

  • Page 2: Physical Installation

    SUPPORT INFORMATION Physical Installation Things you need: (excluding Back Box and Flush Mount all comes with the product) Installation with 86mm Backbox: Example Back Box (external Link) Akuvox R27A Quick Start V1-EN...
  • Page 3 SUPPORT INFORMATION Installation without Backbox: Flush Mounted: (using the Flush Mounting Bracket) Akuvox R27A Quick Start V1-EN...
  • Page 4 SUPPORT INFORMATION Akuvox R27A Quick Start V1-EN...
  • Page 5 SUPPORT INFORMATION Back Cover Installation: Final Installation: Akuvox R27A Quick Start V1-EN...

  • Page 6: The R27A Connector Terminals On The Back Side

    SUPPORT INFORMATION The R27A Connector Terminals on the back side: Akuvox R27A Quick Start V1-EN...

  • Page 7: Wiring Power Supply

    Switch without POE 12V DC min 1A • By using a POE enabled Switch (The POE will power for the R27A Unit) Connect the ethernet cable having POE into the green highlighted RJ45 port. Using POE, the red terminal will not provide any power to source the attached locks.

  • Page 8: The Ip Address

    “1” to enter network setting interface. Here you can check or modify the IP address of the device. 2) You can download the IP Scanner tool from Akuvox and search in your local network for new units. Link for the IP Scanner and Description.

  • Page 9: Configuration For Relaya

    SUPPORT INFORMATION R27A is powered via POE, Lock is powered by an external PSU • Normal Operation wiring • Fail-Safe Operation wiring POE Switch Legend: ◼ Ethernet / POE ◼◼ Lock Cabling ◼◼ Power Supply ◼ Wires Configuration for RelayA As per chapter 3 discover and use the IP address and login to connect to its Web Server.

  • Page 10: Extra Relay Settings

    This configuration will allow to use a standard switch to release the door by remote. Normally this is used if the door has a card reader from the Entrance direction, and a release button from the inside. NO Contact Press (close circuit) to unlock Door Akuvox R27A Quick Start V1-EN...

  • Page 11: Configuration For Input "Doora

    10. Call Configuration Example 1 | Local Relay on R27A The R27A is combined with 2x C315 Indoor monitors to pick up a call from the door. Out of the box the C315 Monitors will have the most necessary settings configured already.
  • Page 12 Step1: Get the C315 Monitors connected via DHCP to your network. Step2: Write down the give IP address of each C315S unit to be configured in the R27A later. Tipp: Most networks support a DHCP reservation for devices, so they will always have the same IP Address assigned.
  • Page 13 SUPPORT INFORMATION Step4: Configure the local contacts in your R27A to be able to call the different receivers from your R27A calling screen Navigate to Phone Book > Phone Book and configure the IP Addresses of each C315 Monitor as a call receiver.
  • Page 14 Key to dial. If all settings are done to correct way, the other party, in this case Andy’s Indoor Screen will start to ring and show the Incoming call screen with the video preview of the R27A’s camera. Akuvox R27A Quick Start V1-EN...

  • Page 15: Call Configuration Example 2 | Local Relay C315

    POE Switch Door Strike C315S Connection Schema for the door Lock locally connected: C315S and Lock powered from the same PSU Power Supply Variant Switch without POE POE Switch POE powered C315S / Lock locally supplied Akuvox R27A Quick Start V1-EN...

  • Page 16: Local Access Control

    Here the difference to example 1 is the relay set for Local Relay1 12. Local Access control This R27A Door Entry phone comes with an onboard Access control system, able to hold up to 500 cards for local Access control. The reader embedded can read Mifare Classic, Mifare Desfire as well as EM4102 EM cards based on 125kHz.
  • Page 17 Press Add to store the card. Test: Show the configured card on the R27A’s card reader and if the settings are correct and the allowed time is valid, you will see an UNLOCK message on the LCD screen together with a voice message saying “The Door has been open“.
  • Page 18 The configuration for local Access Control cards can be seen on the Door Card Management list in Intercom > Card Settings. To check the Access control logs, please navigate to the Phone > Door Log Akuvox R27A Quick Start V1-EN...

  • Page 19: Act Enterprise Integration On Wiegand 32 Bit

    Vanderbilt readers will do. This is only possible on R29S by today but planned as improvement for R27A in the future! Today the R27 Will just send the first 4 Byte, as the readers will ignore the first Byte, send the coming 4Byte and ignore the rest of the following bytes as ACT standard.

  • Page 20: Spc Integration On Wiegand 32 Bit And Wiegand 56 Bit

    SUPPORT INFORMATION Settings on the R27A for Wiegand 32 Output Navigate to Intercom > Advance and select the displayed configuration The CRC turned off will turn down the selected 34 Bit to 32 Bit card data send to the Access control System.

  • Page 21: Troubleshooting

    ➢ Check if the correct relay is assigned to the used input. Voice is to low on the indoor monitor. ➢ Check the MIC Value on the R27A and increase or tune the speaker up on the Indoor Monitor. The Indoor monitor will not ring after the call button was pressed.

  • Page 22: Notes

    SUPPORT INFORMATION 16. Notes If you have any questions, please contact our Technical Competence Centre. Contact details can be found on our website.
