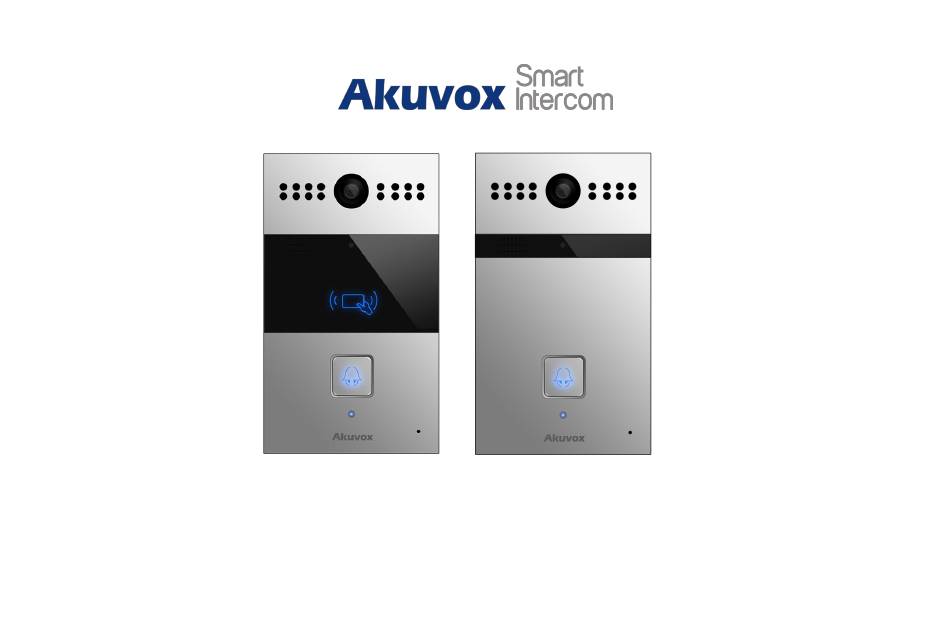

- Page 1 R26C R26P R26 Series Door Phone User Manual...
- Page 2 About This Manual Thank you for choosing Akuvox’s R26 series door phone. This manual is intended for end users, who need to properly configure the door phone. This manual is applicable to 26.0.3.xx version, and it provides all functions’ configurations of R26C/P. Please visit Akuvox forum or consult technical support for any new information or latest firmware.
-
Page 3: Table Of Contents
Content 1. Product Overview.......................................1 1.1. Product Description....................................1 1.2. Connector Introduction....................................2 1.3. LED Status Information.....................................3 2. Daily Use..........................................4 2.1. Make a Call......................................... 4 2.2. Receive a Call......................................4 2.3. Unlock by RFID Card (Optional)................................4... -
Page 4: Product Overview
1.1. Product Description Akuvox R26X is a SIP-compliant, hands-free one button video outdoor phone. It can be connected with users Akuvox indoor monitors for remote access controlling and monitoring. Users can operate the indoor phone to communicate with visitors via voice and video, and use RFID cards to unlock the door (R26C only). -
Page 5: Connector Introduction
1.2. Connector Introduction Ethernet (POE): Ethernet (POE) connector, which can provide both power and network connection. 12V/GND: External power supply terminal if POE is not available. RS485A/B: RS485 terminal. DOORA/B: Trigger signal input terminal. RelayA/B (NO/NC/COM): Relay control terminal. Note: The general door phone interface diagram is only for Figure 1.2-1 R26’s interface reference. -
Page 6: Led Status Information
1.3. LED Status Information LED Status Description Blue Always on Normal status Flashing Calling Flashing Network is unavailable Green Always on Talking on a call Flashing Receiving a call Pink Flashing Upgrading... -
Page 7: Daily Use
2. Daily Use 2.1. Make a Call Press the call button to dial out the predefined number or IP address. If LED turns green, it means the call has been answered. 2.2. Receive a Call Users can use phone or indoor monitor to call R26X and R26X will answer it automatically by default. - Page 8 Abbreviations DNS-SRV: Service record in the Domain Name System ACS: Auto Configuration Server Auto: Automatically FTP: File Transfer Protocol GND: Ground AEC: Configurable Acoustic and Line Echo Cancelers ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning HTTPS: Hypertext Transfer Protocol Secure AES: Advanced Encryption Standard IP: Internet Protocol BLF: Busy Lamp Field...
- Page 9 PCAP: Packet Capture SIP: Session Initiation Protocol PNP: Plug and Play SNMP: Simple Network Management Protocol RFID: Radio Frequency Identification STUN: Session Traversal Utilities for NAT RTP: Real-time Transport Protocol SNMP: Simple Mail Transfer Protocol RTSP: Real Time Streaming Protocol SDMC: SIP Devices Management Center MPEG: Moving Picture Experts Group TR069: Technical Report069...
- Page 10 Contact us For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: techsupport@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
