  • Page 1 R28A R28V R28 Series Door Phone User Manual...
  • Page 2 About This Manual Thank you for choosing Akuvox’s R28A/V door phone. This manual is intended for end users who need to properly configure the door phone. This manual is applicable to 28.0.3.xx version, and it provides an overview of the most essential functions and features of the product.
  • Page 3: Table Of Contents

    Content 1. Product Overview....................................... 1 1.1. Product Description....................................1 1.2. Connector Introduction....................................1 2. Daily Use..........................................3 2.1. Make a Call........................................3 2.2. Receive a Call......................................3 2.3. Unlock........................................... 4 2.3.1. Unlock by Public Pin Codes................................4 2.3.2. Unlock by Private Pin Codes................................4 2.3.3.
  • Page 4: Product Overview

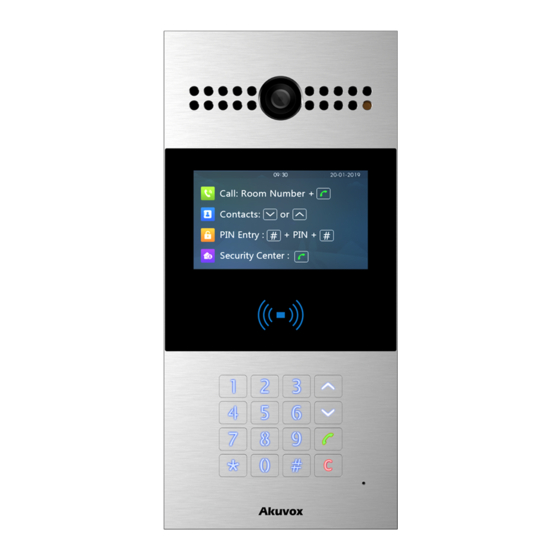

    1.1. Product Description Akuvox R28 is a SIP-compliant, hands-free and video door phone. It can be connected with Akuvox indoor monitors for remote access controlling and monitoring. Users can communicate with visitors via audio and video calls, and unlock the door if they need. Users can also use RFID cards to unlock the door (R28A only).
  • Page 5 R27A/C User Manual WG_D0/WG_D1: Wiegand terminal. DOORA/B/C: Trigger signal input terminal. RelayA/B/C (NO/NC/COM): Relay control terminal. 12V_OUT/GND_OUT: Power output terminal. Note: The general door phone interface diagram is only for reference. Figure 1.2-2 General interface...
  • Page 6: Daily Use

    R27A/C User Manual 2. Daily Use 2.1. Make a Call Call: Users can make a call by entering room number, SIP extension or IP address and then press “Dial key.” Security center call : Users can make a speed dial to security center by pressing “Dial Key”...
  • Page 7: Receive A Call

    R27A/C User Manual 2.2. Receive a Call R28 will auto answer the incoming call by default. If users disable auto answer function, they can press “Dial key” to answer the incoming call. Figure 2.2 Incoming call interface...
  • Page 8: Unlock

    R27A/C User Manual 2.3. Unlock Unlock by Public Pin Codes Users can unlock doors by using predefined public pin code. Press “#,” public pin code, “#” to unlock, and then users will hear “The door is now opened.” If users press wrong public pin code, the screen will show “Incorrect PIN.”...
  • Page 9: Unlock By Rfid Cards (Optional)

    R27A/C User Manual Unlock by RFID Cards (Optional) Place the predefined user cards in RFID card reader to unlock. Under normal conditions, R28A will announce “The door is now opened.” If the card has not been registered, R28A will show “Unauthorized.”...
  • Page 10 R27A/C User Manual Abbreviations ACS: Auto Configuration Server DNS-SRV: Service record in the Domain Name System Auto: Automatically FTP: File Transfer Protocol AEC: Configurable Acoustic and Line Echo Cancelers GND: Ground ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning HTTPS: Hypertext Transfer Protocol Secure AES: Advanced Encryption Standard IP: Internet Protocol...
  • Page 11 R27A/C User Manual SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center RTSP: Real Time Streaming Protocol TR069: Technical Report069 MPEG: Moving Picture Experts Group...
  • Page 12 Contact us For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: techsupport@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
