5-7. Adjust the Cutter

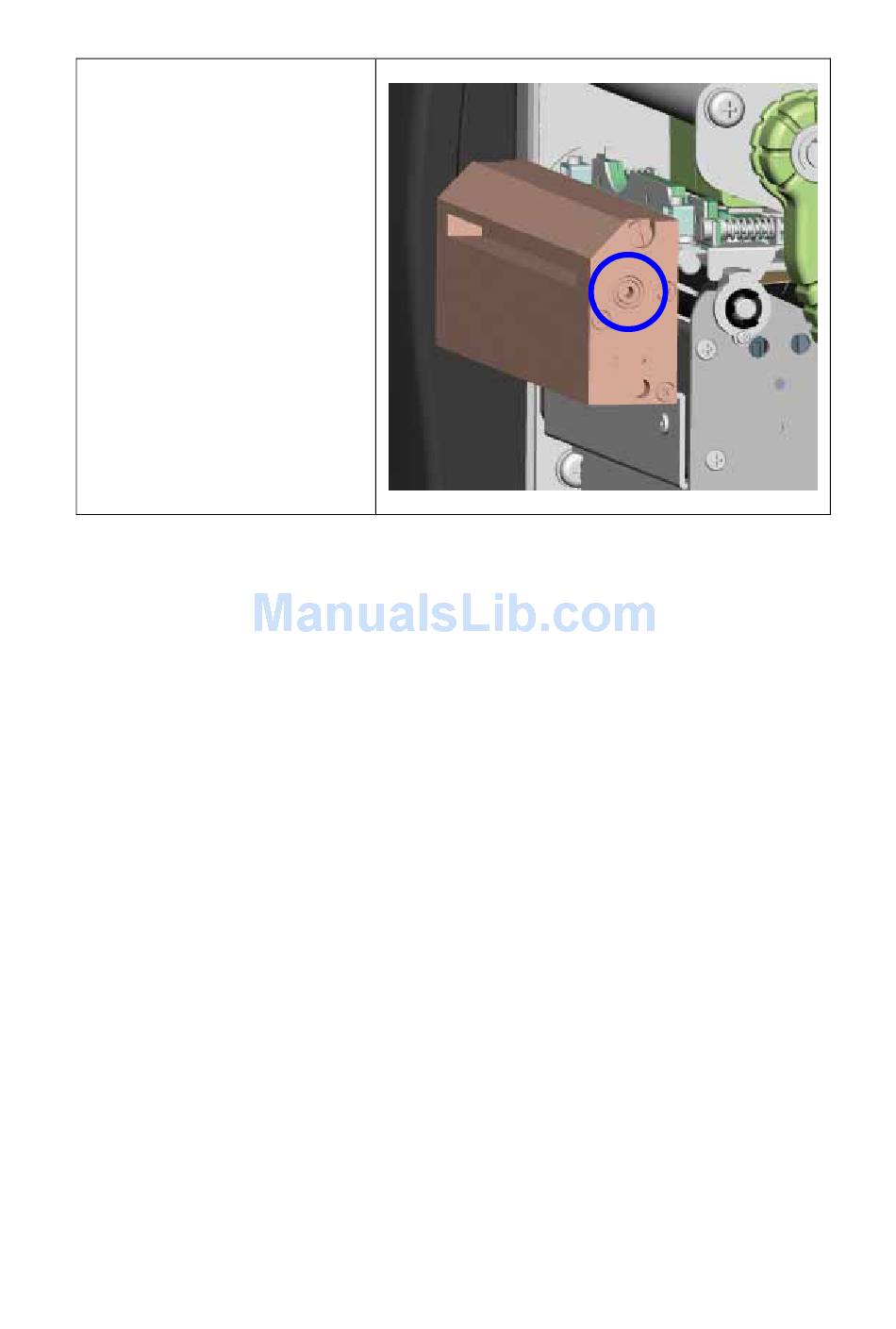

1. The cutter-adjusting hole is on
both sides of cutter.
2. The cutter will not work
properly if there is a paper jam.
Please power off the printer
and use a 3mm hexagon
screwdriver to insert into the
hole.
3. Turn the screwdriver clockwise
to remove the jammed-label.
4. After the jammed-label is
removed, power on the printer
again. The cutter will reset
automatically.
【 】
Note
The label / paper used for
cutting is suggested to be at
least 30mm in height.

5-8. CF Card Instruction

All the EZ-2000 Plus and EZ-6000 Plus series models have built-in CF Card slot on the back of
the printer. If the built-in memory is insufficient for storing label formats, graphics or fonts, users
can use CF Card as external memory to provide more memory space.
When using the CF card, please follow the instruction as below:
1. Please power off the print before installing or removing CF Card from the card slot.
2. The CF Card cannot be used for printer's external memory until it is formatted in FAT16.
When the printer has detected that the CF card is not formatted in FAT16, the LCD will
show the message of "CF card not formatted, press FEED to format".
3. If user wants to format the CF Card, please follow the instruction to press the "FEED" key,
and then the printer will format the CF Card in FAT16.
4. After the format is complete, a file folder named "Godex" would be created automatically.
This folder is for storing all the data from the printer, please don't do any change on it.
5. The capacity of CF Card that is supported by the printer is from 128MB to 1GB.
EZ-2000+/6000+ User's Manual Rev. D 54
