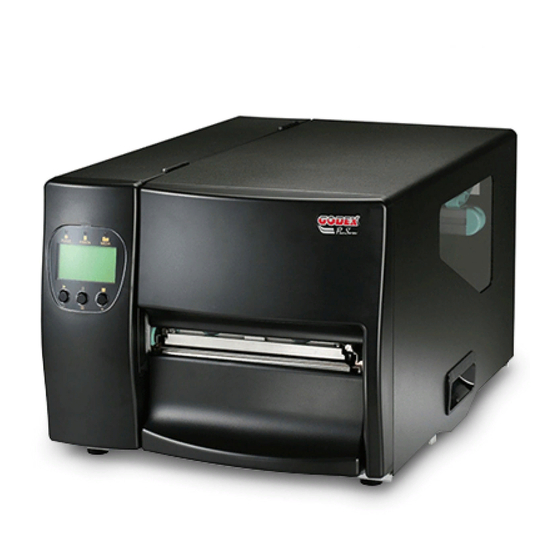

Godex EZ-6000Plus Installation Manual

Rewinder / stripper
Hide thumbs Also See for EZ-6000Plus:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Installation Guide
EZ-6000Plus Rewinder / Stripper

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ-6000Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Godex EZ-6000Plus

Summary of Contents for Godex EZ-6000Plus

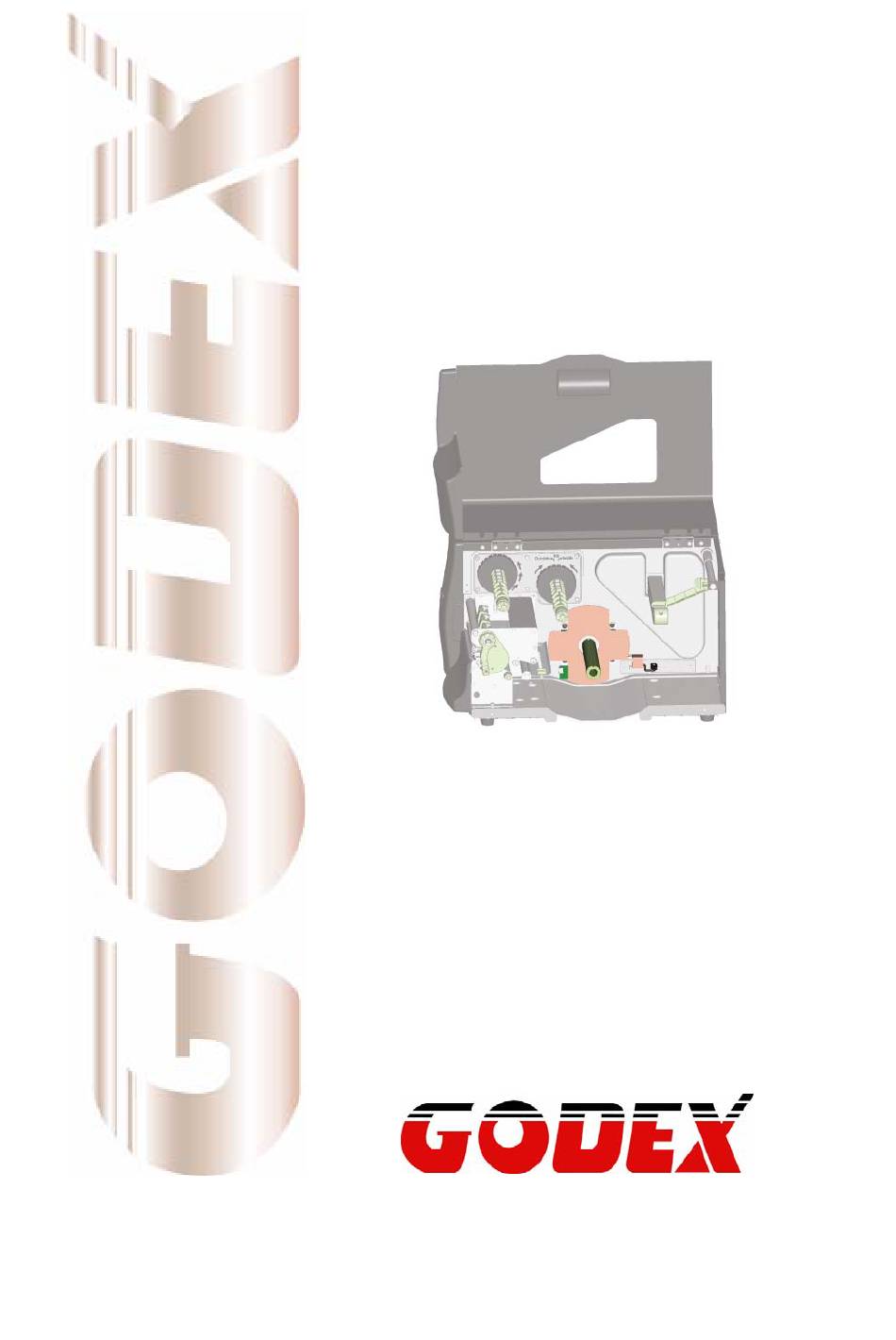

  • Page 1 Installation Guide EZ-6000Plus Rewinder / Stripper...
  • Page 2 EZ-6000Plus Rewinder / Stripper Installation Guide EZ-6000Plus背紙回收器/剝紙器安裝說明 1. Rewinder Installation 背紙回收器安裝 Motor Module 馬達模組 Rewinder Module 背紙回收模組 Rewinder Full Sensor Connector Plate 滿紙偵測器連接插頭遮蓋 Paper Clip 背紙回收固定夾 Label Rewind Bracket 標籤紙回收導紙架 Wire Binder 束線帶 Belt 傳送皮帶 Screw x 10pcs 螺絲x 10pcs Place the printer onto a smooth surface and open the Top Cover.
  • Page 3 Unscrew the two screws of Standard Connection Plate from inside of printer and remove the Standard Connection Plate. 從機器內側移除鬆開標準連接插頭遮蓋的 固定螺絲後，即可移除標準連接遮蓋。 Install the Rewinder Full Sensor Connector Plate with screws that removed from Standard Connection Plate. 換上滿紙偵測器連接遮蓋後，將遮蓋以原有 的螺絲鎖合固定。 Plug the connector of Rewinder Full Sensor Connector Plate into the socket of main board as indicated in figure.
  • Page 4 13. Rewinder Module installation is complete. 完成背紙回收模組安裝。 14. Put the Motor Module on rear part of printer and align it to 4 screw holes. 將馬達模組依圖上所示置於機器後端預留 的四個螺絲孔上。 15. Tighten but don’t fully tighten the screws to save space for adjustment when installing the belt.
  • Page 5 18. Plug the 5pin connector into the socket on main board that marked with “CUTTER”. Plug the 4pin connector into the socket on main board that marked with “STRIP”. Plug the motor connector on top of Motor Module. 將連接線組中的 5pin 接頭插入主板上標 示”CUTTER”的插座；將連接線組中的...
  • Page 6 24. Label Rewind Bracket installation is complete. 完成標籤回收導紙架安裝。 25. Install the ribbon and label on printer. 將碳帶與紙捲安裝於機器中。 26. Feed the label through the Printer Mechanism and around the Label Feed Guide. 將標籤穿過機心與導紙桿下方。 27. Wrap the label around the Liner Rewinder Shaft, and use the Paper Clip to secure the liner.
  • Page 7 2. Stripper Installation 剝紙器安裝 Stripper Module 剝紙器 Cable Tie Mount x 2pcs 理線座 x 2pcs Screws x 2pcs 螺絲 x 2pcs Unscrew the Bottom Cover Screw and remove the Bottom Front Cover. 將右側面板下方的螺絲順時鐘鬆開，並將右 側面板往上抬起水平卸下。 Unscrew the two screws to remove the Tear Off Bar.
  • Page 8 Loose the lock bar (as shown on the arrow 1) of the stripper. 撥開位於剝紙器上的撥柄(如箭頭 1 所示)。 Follow the direction of arrow 2 to flip the stripper downward and open it. 依箭頭 2 所示方向，將剝紙器打開。 Peel off a few labels from the liner (about 400mm of liner), and then feed the liner through the stripper.
