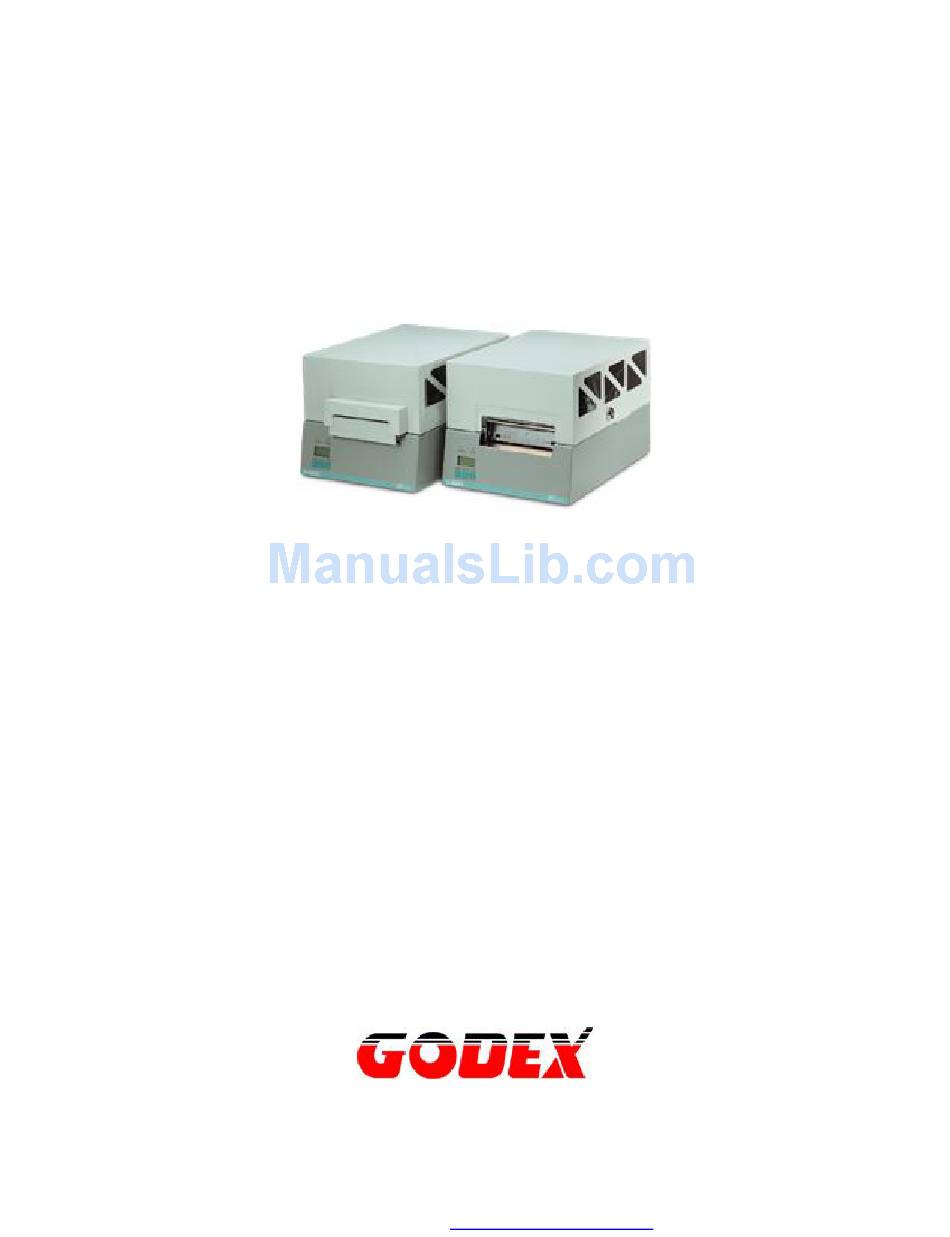

- Page 1 P/N. 920-010511-03 Edition 1 April 02 EZ-4206/4216/4304 User’s Manual PDF created with FinePrint pdfFactory trial version http://www.fineprint.com...
- Page 2 FCC COMPLIANCE STATEMENT FOR AMERICAN USERS This equipment has been tested and found to comply with the limits for a CLASS A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
DJUSTING 4-4. R IBBON XPANSION 4-5. T ROUBLESHOOTING All the MG-200 commands can be used for EZ-4206/4216/4304. PDF created with FinePrint pdfFactory trial version ..3 ..3 PTIONS ..3 ..4 PECIFICATIONS ... -
Page 4: About The Printer
Able to support large label rolls of 260 m in length and a 300 m ribbon Optional memory (SRAM) can expand the printing length to 40 inches Optional stripper Optional cutter Free software bundled with every printer package, thus providing a complete solution 1-2. Printer With Options Standard Cutter ＊... -
Page 5: General Specifications
Media Thickness: 0.06mm to 0.2mm Roll size: EZ-4206 Maxi. O.D. 6” (15.2 cm) on a 1” or 3” I.D. core EZ-4216/EZ-4304 Maxi. O.D. 10” (25.4 cm) on a 1” or 3” I.D. Ribbon Max.110mm width; 300 meters length; I.D. 1”... -
Page 6: Printer Parts
1-5. Printer Parts Use the following diagram to familiarize yourself with the features and components of the EZ-Series printer POWER JACK PARALLEL PORT SERIAL PORT POWER SWITCH (POWER) TOP COVER FRONT COVER TROUBLE INDICATOR (STATUS) POWER INDICATOR (POWER) LCD DISPLAY PANEL... -
Page 7: Communication Port Specifications
PC to USB port (pin to pin) description. USBVCC 1 NOTE: Verify that the USB driver is installed before connecting the printer and PC via USB port. In addtion USB port and parallel port cannot be used simulataneouly. PDF created with FinePrint pdfFactory trial version... -
Page 8: Setting Up Your Printer
5. Press the two lock keys (P18) to loosen the printer head assembly (P13) (see Fig. 2-2). 6. Lift the printer head assembly (P13), and lower the paper fix bar (P24) (see Fig. 2-3). PDF created with FinePrint pdfFactory trial version Fig. - Page 9 8. Return the paper fix bar (P24) to its original position (see Fig. 2-5). 9. Load the paper (Refer to Chapter 2-2). 10. Lower and lock the printer head assembly (P13) (see Fig. 2-6). 11. Close the top cover (P5) 12.
-
Page 10: Loadinga Label Roll
3. Put the paper roll in the label roll stand (P14). 4. Press the lock keys (P18) to loosen the printer head assembly (P13). 5. Lift the printer head assembly (P13), and load the paper under the paper fix bar (P24) (see Fig. 2-2-1). -
Page 11: Connecting The Printer To An Interface
3. Connect the printer to an interface via parallel (P2) or serial port (P3). 4. Turn the power key (P4) on. The printer name will be displayed on the LCD and Vx.xxx represents the edition. PDF created with FinePrint pdfFactory trial version Fig. -
Page 12: Control Panel
Press the pause button first, while holding down the pause button press the feed key and the printer will enter the “ set up” status. Press the stop key after set up and the printer will be ready for printing. -
Page 13: Normal Operation
Press the stop key and printer will stop printing and is ready for the next operation RESET Resetting the printer. 1. Press the pause key when printer is in normal status, then press the stop and feed key. 2. After 2 seconds, the LCD will display “ EZ-XXXX RESET”. Only after the stop and feed keys are released will the printer be reset. -
Page 14: Self-Test
3-4. Dump Mode When enter the dump mode, the printer will print out the echo of the received ASCII. Use this function to debug your software when the printer does not perform as you expect. To get in the dump mode, follow the steps as below: 1. -
Page 15: Auto Sensing
2. Turn the power on (with the pause key pressed). Immediately release the feed key when the printer beeps 3 times and the LCD will display “ AUTO SENSOR”. 3. After auto sensor detection, the LCD will display the label type and height. For example: When ”... -
Page 16: Error Messages
BLACK LINE (out of black liner consecutively paper) Command not correct 2 beeps 2 times consecutively The printer’s memeory was full Erase some data you do’t 2 beeps 2 times consecutively 2 beeps 2 times Could not found the filename consecutively... -
Page 17: Maintenance And Adjustments
4. Maintenance And Adjustments 4-1. Cleaning The Printer Head The printer head may be covered with dust or label printout is unclear, thus the printer head should be cleaned. This will prolong the printer head life. 1. Press the lock keys (P18) to loosen the printer head assembly (P13). -
Page 18: Ribbon Expansion Pressure Adjustment
To adjust the ribbon pressure, please open the top printer cover, and on the left of the ribbon supply spindle (P16) is the ribbon adjustment knob. Please turn it clockwise or counterclockwise to control the ribbon pressure high and low. -
Page 19: Troubleshooting
Adjust the printer head pressure screws. w Check to see if labels are stuck in the printer w Clean printer head with alcohol (if the label glue is stuck to printer head, wipe carefully with a soft cloth soaked with alcohol).
