Version
: D
Issue Date
: May, 2011

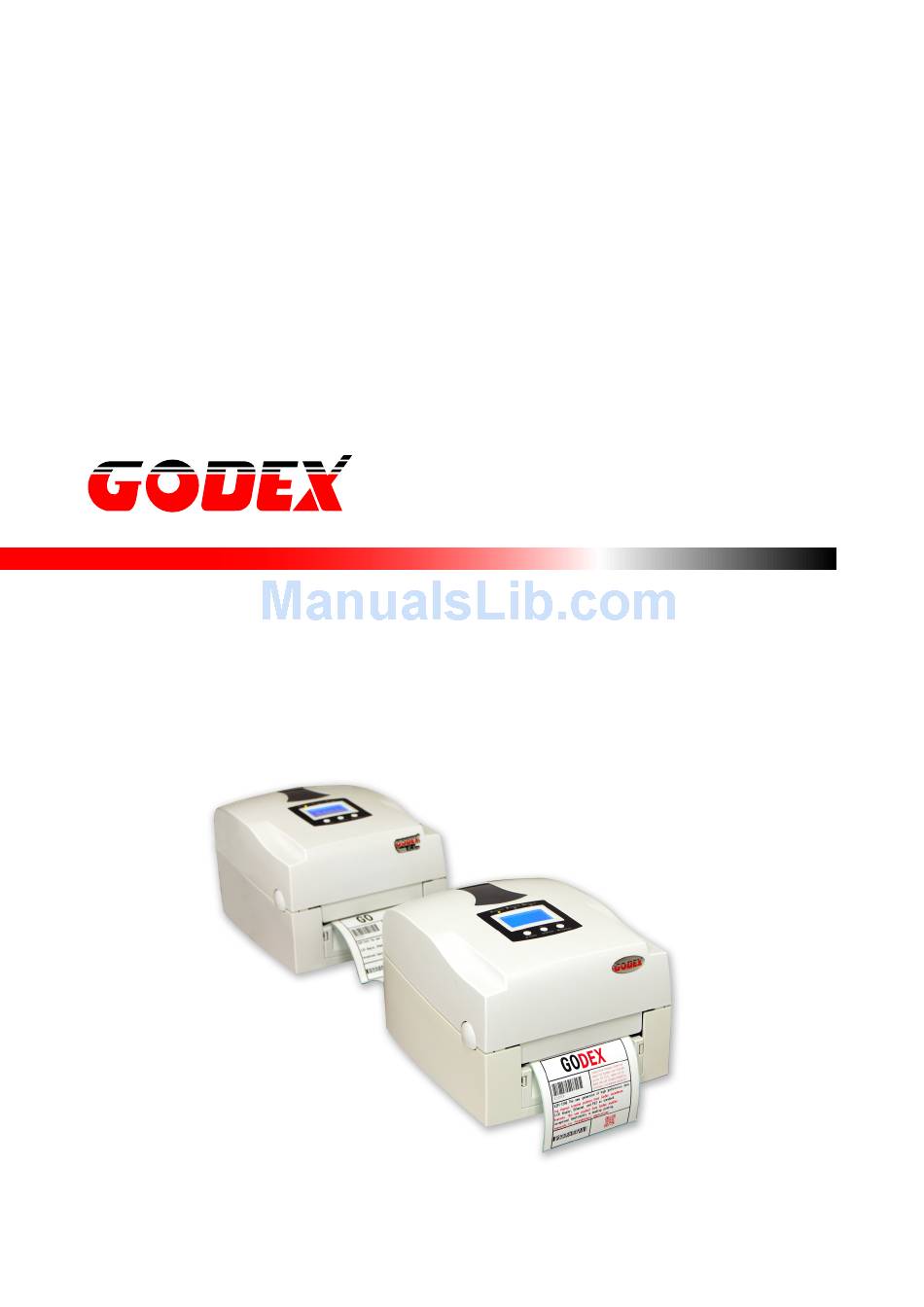

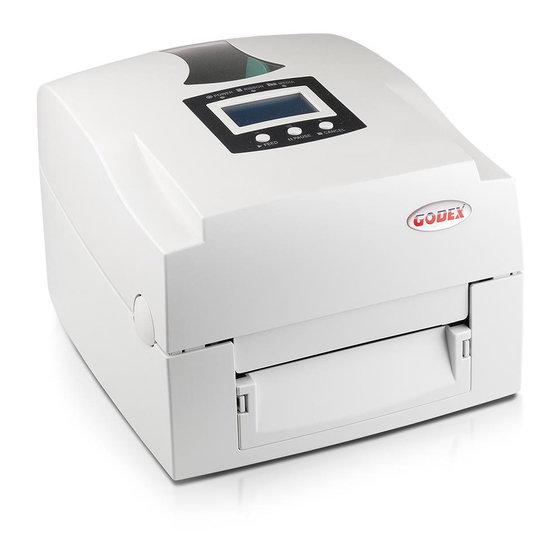

USER MANUAL

Dual-Color Printing System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZPi1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Godex EZPi1200

Summary of Contents for Godex EZPi1200

  • Page 1: User Manual

    USER MANUAL Dual-Color Printing System Version Issue Date : May, 2011...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. BARCODE PRINTER ..............2 1-1. Box content ........................2 1-2. Specifications ........................2 1-3. RS-232 Cable Specification .................... 3 2. SET UP FOR DUAL-COLOR PRINTING ........4 2-1. How Dual-Color printing works ..................4 2-2. Steps to set up the Dual-Color printing system .............. 5 2-3.

  • Page 3: Barcode Printer

    Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.67“ (68 mm) Core diameter: 1” (25.4 mm) EZPL, GEPL (Godex Eltron® Printer Language), GZPL (Godex Zebra® Printer Printer Language Language) Label design software: QLabel-IV (for EZPL only) Software Driver &...

  • Page 4: Rs-232 Cable Specification

    ** Minimum print height specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. Godex is pleased to test non-standard materials for minimum height printing capability.

  • Page 5: Set Up For Dual-Color Printing

    2-1. How Dual-Color printing works For example, make two EZPi1200 printers placed in line. Printer #1 prints the first color and then the labels are fed directly into the back of printer #2. Printer #2 then prints the second color. Both printers print simultaneously in this system making volume batch printing possible.

  • Page 6: Steps To Set Up The Dual-Color Printing System

    Step 1 Connect both printers to PC with USB / Ethernet and connect them with RS-232 in between The Godex dual color printing system supports USB and Ethernet connection for now. But both printers should be connected with the same type of connection port, e.g. both on USB port or both on Ethernet port.
  • Page 7 Step 3 Execute the auto calibration for both printers Execute the auto calibration function for both printers to make sure the label can be fed to correct position. (For more details about calibration function, please refer to EZPi1000 series user manual.) Please start doing it from the first printer then to the second printer.

  • Page 8: Make A Dual Color Label With Qlabel 1.192

    2-3. Make a Dual Color Label with QLabel 1.192 QLabel is a FREE label editing software provided by Godex. You can find the installation file from the Dual Color CD in your printer package. Insert your product CD, follow the instructions to install the QLabel and start to execute it.
  • Page 9 3) Serialized number, Variable and Database: the function is the same as standard QLabel. After you are ready with number setting or database connection, please select the color you prefer to. 4) The Label Format now is ready. 5) Label / Printer Setup: make sure the setting in the below windows. Dual Color Printing System User Manual...
  • Page 10 6) After all settings are done and ready to print, go to “AdvanceDownload Dual Color”. A window of Dual Color Tool V.1 is pop-up. To print, pleases click “SEND”. 7) Print delay setting between printer #1 and #2 Set the delay time of Printer #2 (max : 9999(ms)). The delay time setting is just for second printer because only the second printer needs to be delayed for cooperating with the first printer.
  • Page 11 2) Printer actions Printer action control for both printers. It can perform various printer actions for specific printer or for both printers. 3) Printer settings Setting tools for both printers. It can change printer setting options for specific printer or for both printers.

  • Page 12: Troubleshooting

    3. Troubleshooting Problem Solution ♦ The printer is switched on but Check the power supply. the display does not light up. ♦ Check the software settings (driver settings) or command codes. ♦ Look for the error alert in the table in Section 3-8. Error One or both LEDs light up red alerts from printer user manual.
