Adjusting print head pressure

1.

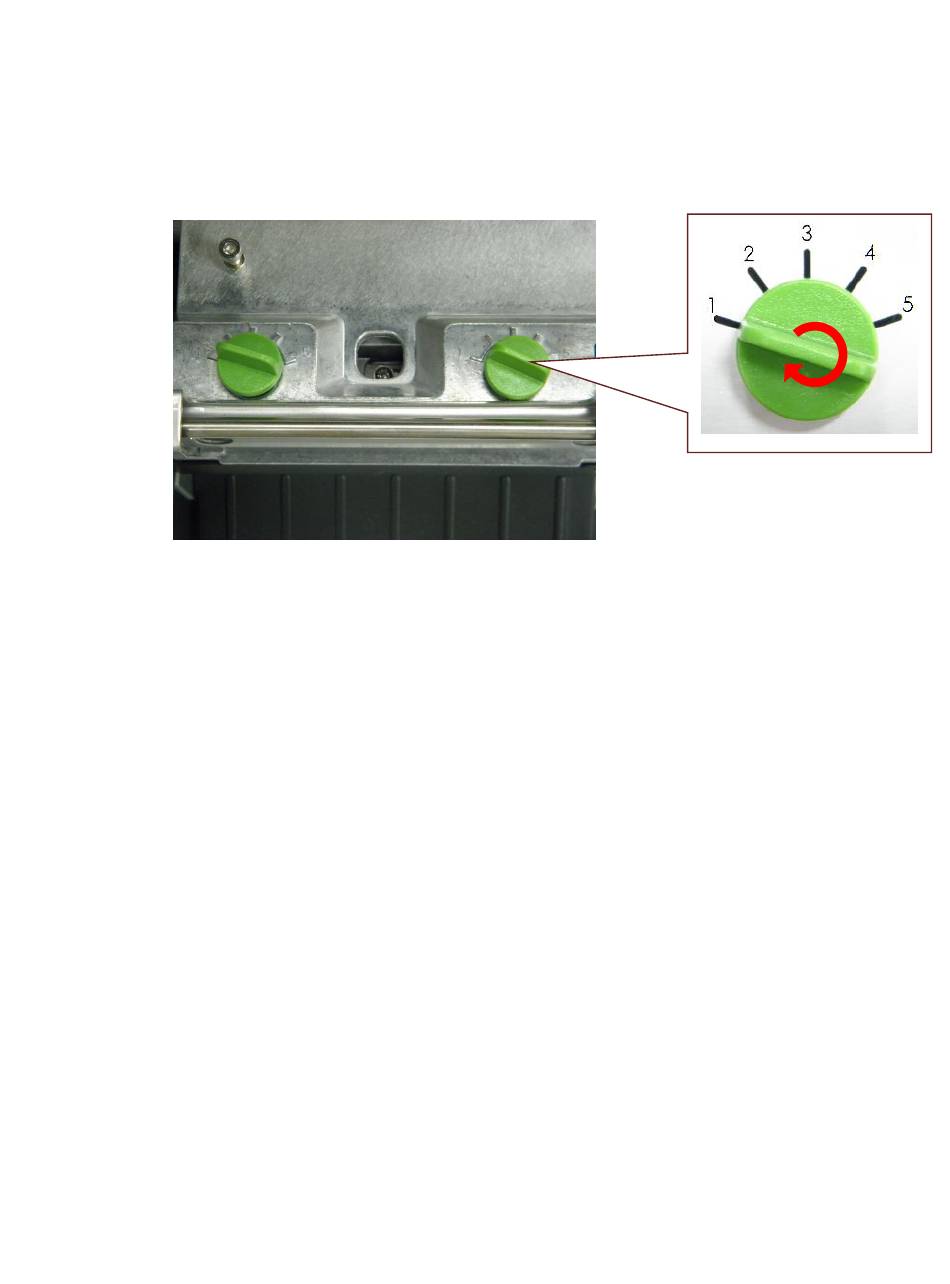

Pressure adjustment knobs:
The print head pressure adjustment knob has 5 levels of adjustment.
Because the printer's paper alignment is to the left side of mechanism,
different media widths require different pressure to print correctly.
Therefore, you may need to adjust the pressure knob to get your best
print quality. For example, if the label width is 4", adjust both print head
pressure adjustment knobs to the same level. If the label is less than 2"
wide, increase the left side print head pressure by rotating the
adjustment knob clockwise and decrease the right side pressure by
rotating the adjustment knob counter-clockwise to level 1.
