Loading fan fold media

1.
Open the printer right side cover. Push the printhead release lever to
open the mechanism.
2.
Insert the fan-fold media through the rear or bottom external label
entrance chute.
3.
Pull fan-fold label leading edge forward over the media guide bar, under
damper, through media sensor and place the media leading edge onto
the platen roller.
4.
Adjust the media sensor.
5.
Adjust the label guides by sliding to fit the media width.
6.
Close the print head mechanism. Make sure the latches are engaged
securely.

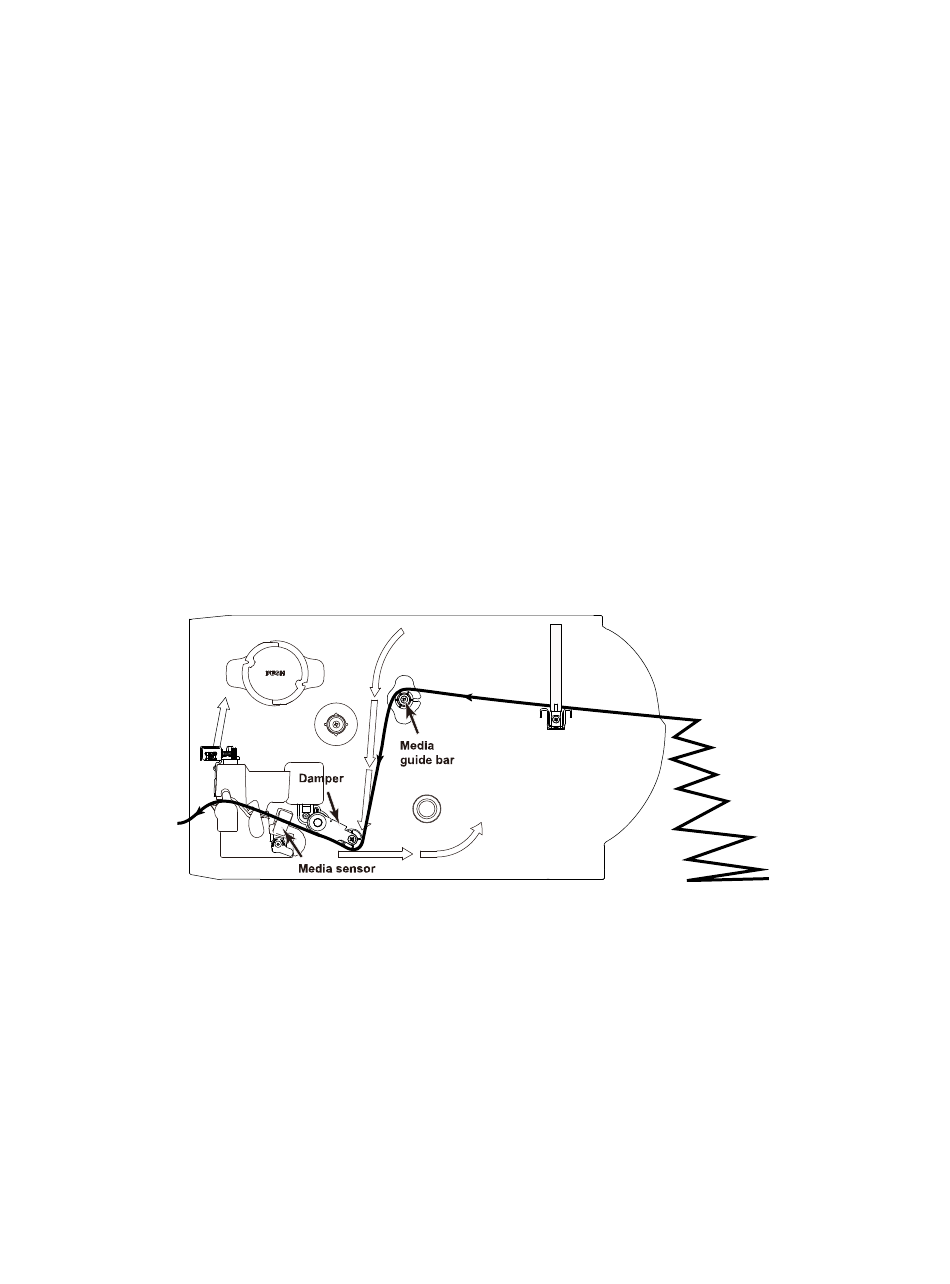

Fan fold media routing
- 24 -
