Configuring the ECLYPSE Wi-Fi Wireless Networks
CHAPTER 9
Configuring the ECLYPSE Wi-Fi Wireless
Networks
The ECY-STAT supports a number of wireless network connection modes. This chapter describes
how to configure a controller's wireless network. See also
ECLYPSE Connected Thermostat Connection
Modes.
Setting up a Wi-Fi Hotspot Wireless Network
This turns the controller into a Wi-Fi hotspot with a router. This puts the hotspot into a separate sub-
network with a DHCP server to provide IP addresses to any connected device. See
Wi-Fi Hotspot
for
more information.
Wide area network (WAN) connectivity is through the wired connection. See
Network Address Transla-
tion /
Firewall. Though BACnet/IP uses IP protocol to communicate, this hotspot acts as an IP router; it
does not forward broadcast messages which are important in BACnet to identify services that are
available within the BACnet internetwork.

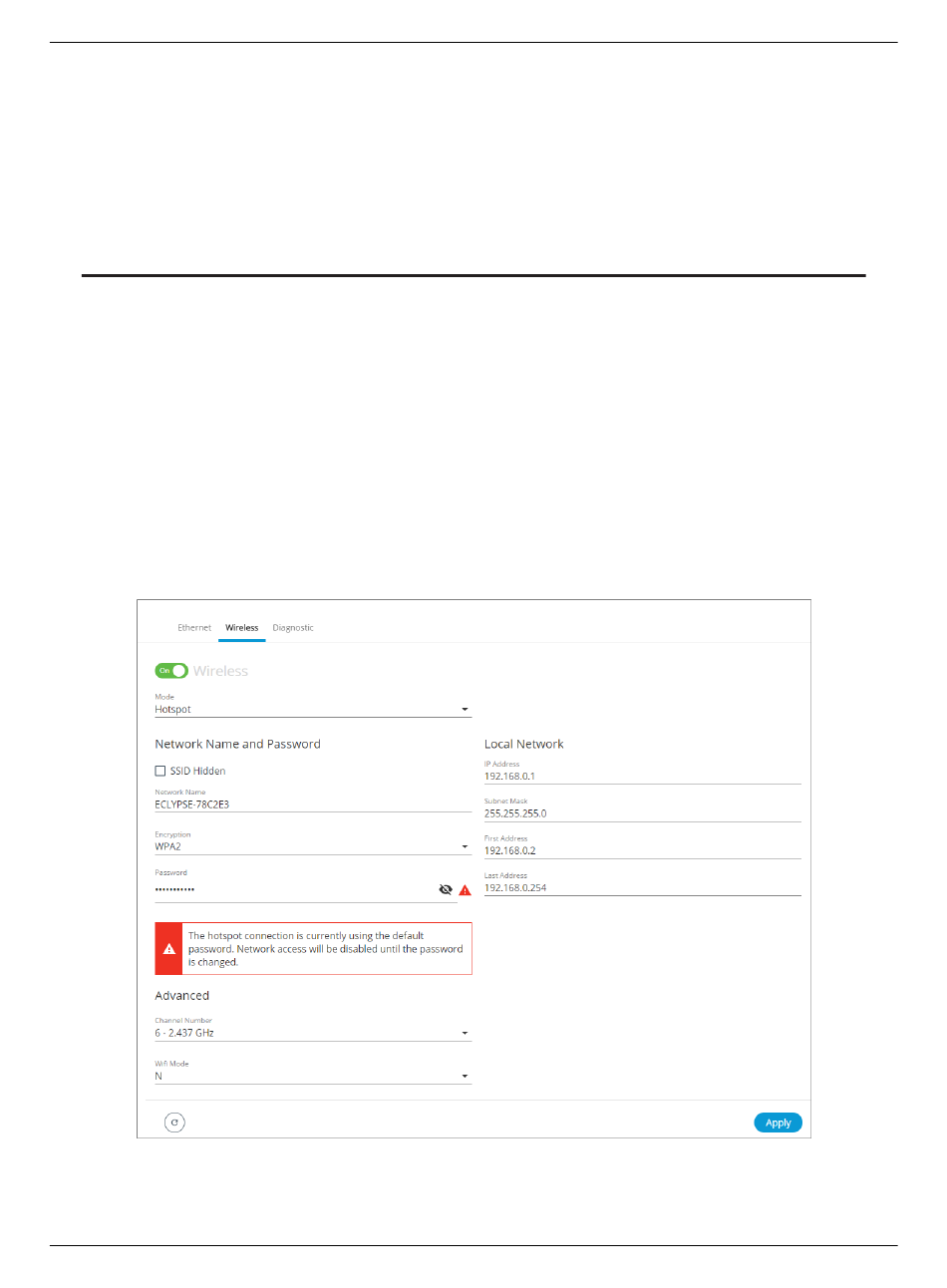

Figure 70: Hotspot Wireless Network Settings
Configure the controller a Wi-Fi hotspot as follows.
ECLYPSE Connected Thermostat (ECY-STAT)
93
