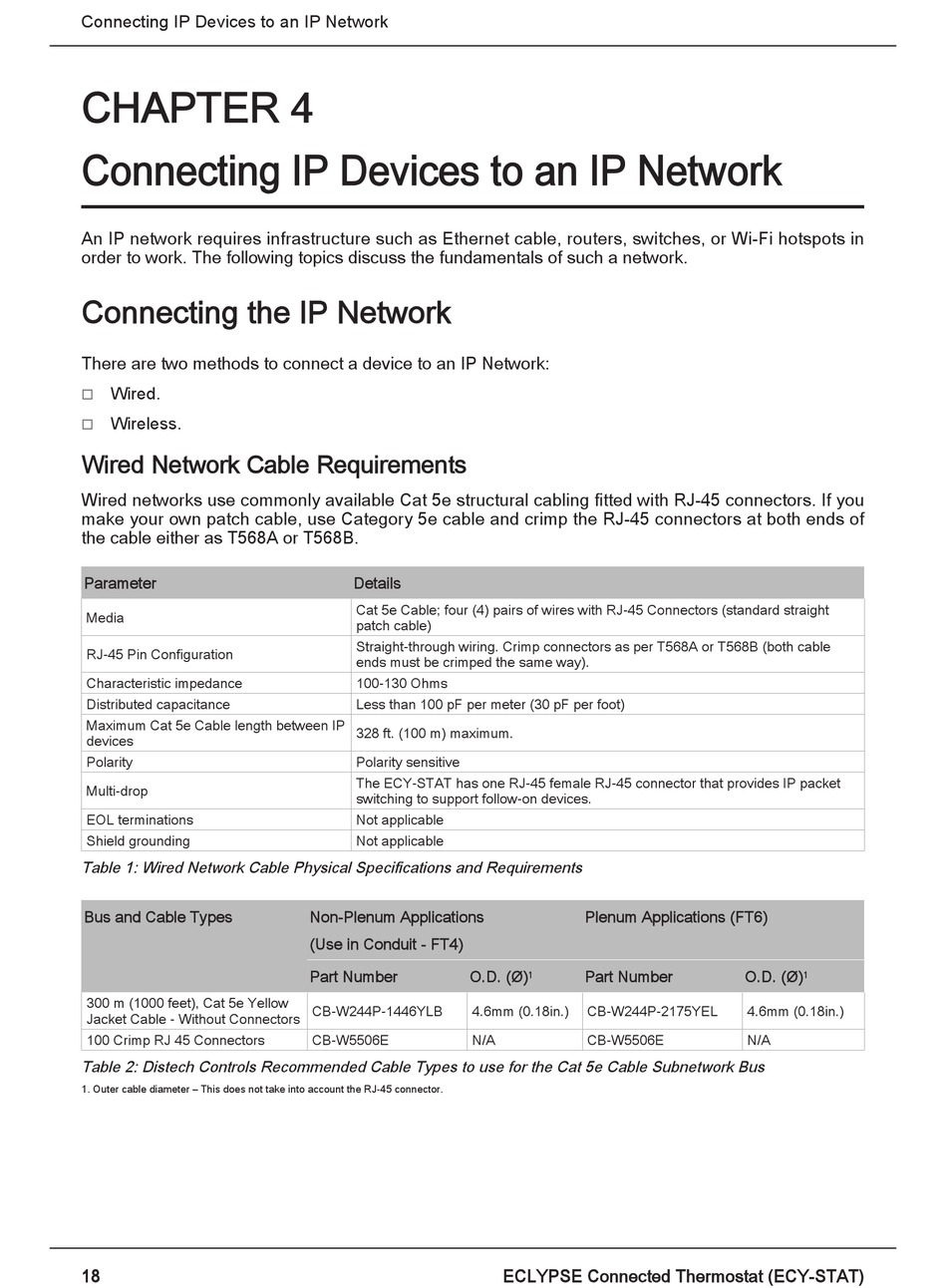

Connecting IP Devices to an IP Network

CHAPTER 4
Connecting IP Devices to an IP Network
An IP network requires infrastructure such as Ethernet cable, routers, switches, or Wi-Fi hotspots in
order to work. The following topics discuss the fundamentals of such a network.

Connecting the IP Network

There are two methods to connect a device to an IP Network:
Wired.
£
Wireless.
£

Wired Network Cable Requirements

Wired networks use commonly available Cat 5e structural cabling fitted with RJ‑45 connectors. If you
make your own patch cable, use Category 5e cable and crimp the RJ‑45 connectors at both ends of
the cable either as T568A or T568B.
Parameter
Media
RJ-45 Pin Configuration
Characteristic impedance
Distributed capacitance
Maximum Cat 5e Cable length between IP
devices
Polarity
Multi-drop
EOL terminations
Shield grounding
Table 1: Wired Network Cable Physical Specifications and Requirements
Bus and Cable Types
300 m (1000 feet), Cat 5e Yellow
Jacket Cable - Without Connectors
100 Crimp RJ 45 Connectors
Table 2: Distech Controls Recommended Cable Types to use for the Cat 5e Cable Subnetwork Bus
1. Outer cable diameter – This does not take into account the RJ-45 connector.
18
Details
Cat 5e Cable; four (4) pairs of wires with RJ-45 Connectors (standard straight
patch cable)
Straight-through wiring. Crimp connectors as per T568A or T568B (both cable
ends must be crimped the same way).
100-130 Ohms
Less than 100 pF per meter (30 pF per foot)
328 ft. (100 m) maximum.
Polarity sensitive
The ECY-STAT has one RJ-45 female RJ-45 connector that provides IP packet
switching to support follow-on devices.
Not applicable
Not applicable
Non-Plenum Applications
(Use in Conduit - FT4)
Part Number O.D. (Ø)
CB-W244P-1446YLB 4.6mm (0.18in.)
CB-W5506E N/A
Plenum Applications (FT6)
1 Part Number
CB-W244P-2175YEL
CB-W5506E
ECLYPSE Connected Thermostat (ECY-STAT)
O.D. (Ø) 1
4.6mm (0.18in.)
N/A
