CHAPTER 12

ENVYSION Preloaded Applications

The Distech Controls Preloaded ENVYSION applications provides out-of-the-box configuration pro-
gramming and graphics for the most common RTU, FCU, and Zoning applications. Choose the re-
quired equipment from the Config Parameters to display the corresponding wiring diagram.
If required, the ENVYSION Viewer navigation banner can be moved from a vertical position on the left to a horizontal
position at the top. Simply add &path=index_top.dg5 to the end of the URL extension in the address bar.

ECY-STAT-R

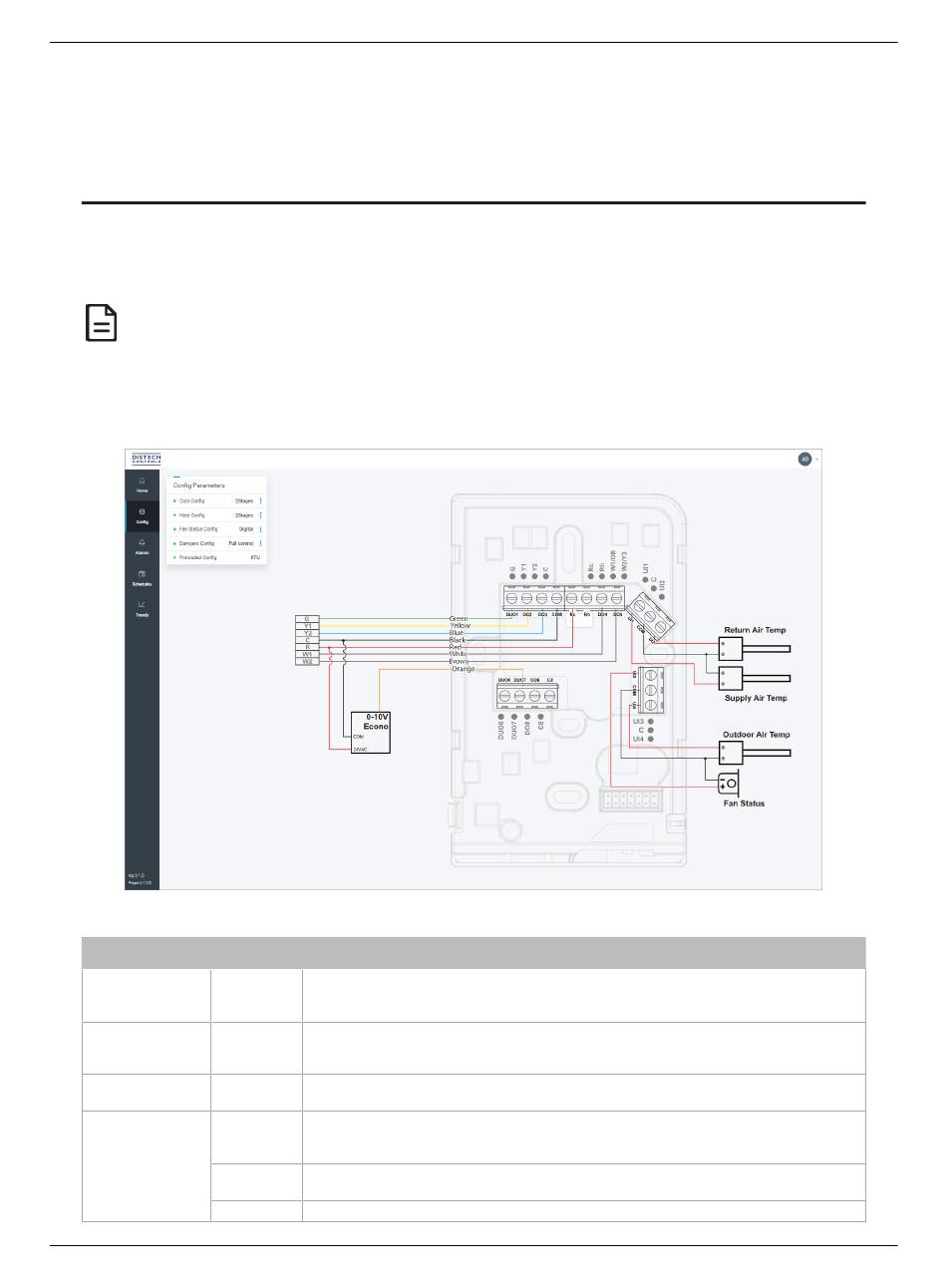

Figure 74: ECY-STAT-R Preloaded Application Rooftop Unit
Parameter Option
None
Cool Config 1-Stage
2-Stages
None
Heat Config 1-Stage
2-Stages
None
Fan Status Config
Digital
Min Position
Dampers Config
Full Control
No Dampers No damper on the unit.
ECLYPSE Connected Thermostat (ECY-STAT)
Description
Select the number of cooling stages.
Select the number of heating stages.
When set to Digital, the program uses this input to determine the actual fan running status.
If not in use, the program shall ignore the input and use the command as the status.
The system will energize or de-energize the minimum outside air damper. When the
system is in occupied or in bypass mode and equipment control is enabled , the system
shall energize and open the minimum outside air damper.
The system controls the dampers/economizer fully. This option should be selected when
the unit is equipped with an economizer and controlled by the system.
ENVYSION Preloaded Applications
103
