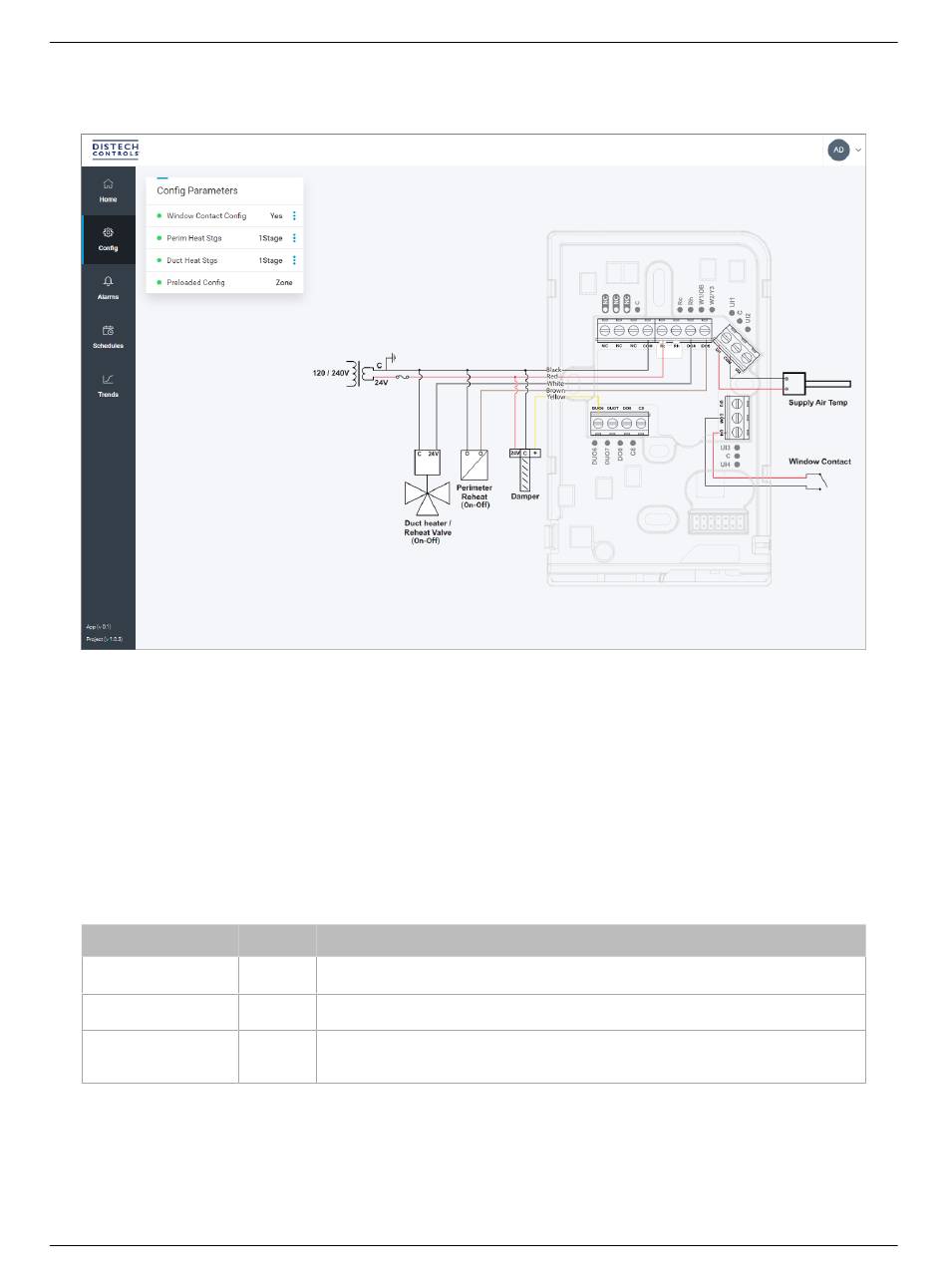

Figure 76: ECY-STAT-Z Preloaded Application Zone Control
Dampers for Heating
If a duct inlet temperature reading is available and it is determined to be suitable for heating, the sec-
ond 50 percent of the heating load is maintained by the damper adjusting between minimum and max-
imum heating position to maintain the space temperature heating setpoint. Otherwise, the damper
shall stay at the minimum heating position.
Dampers for Cooling
The damper modulates between the minimum and maximum position to maintain the space tempera-
ture cooling setpoint.
If a duct inlet temperature reading is available and it is determined to be suitable for heating, the
damper shall stay at minimum position.
Parameter Option
None
Window Contact Config
Yes
None
Duct Heat Stgs
1-Stage
None
Perim Heat Stgs
1-Stage
ECLYPSE Connected Thermostat (ECY-STAT)
Description
If a window contact is equipped and the window is sensed open, the HVAC mode shall
transition to Off.
When duct reheat is present, it will operate the first 50 percent of the heating load,
cycling on/off the reheat to maintain the space temperature heating setpoint.
When Perimeter heat is present, it will operate the second 50 percent of the heating
load, cycling on/off the perimeter heater to maintain the space temperature heating
setpoint.
