Wireless Network Commissioning Architectures

Client to Access Point Configuration

A laptop is connected through Wi-Fi, as a Wi-Fi client, to any ECY-STAT controller that has its wire-
less settings configured as an Access Point. The other ECY-STAT controllers are configured as Wi-Fi
Clients and are wirelessly connected to the same Access Point.
With this configuration, the laptop and all the controllers are on the same subnet, so either laptop user
has access to all networked controllers.
Wired IP
Daisy Chain
Router set as
Wi-Fi Access point
Router set as
Wi-Fi Access point

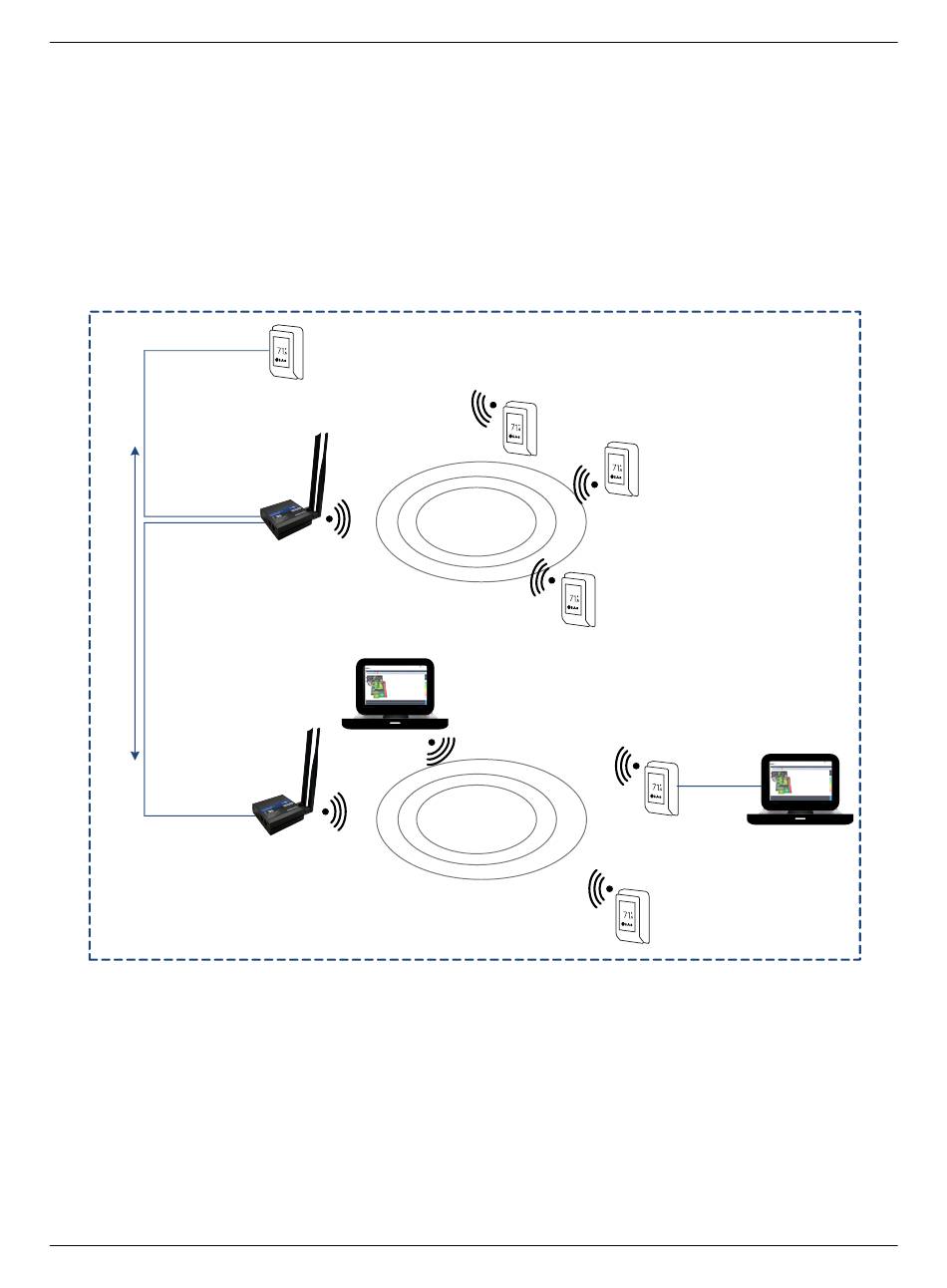

Figure 16: Client to Access Point Configuration
26
Subnet 1
Wi-Fi
Client
Wi-Fi
Client
Wi-Fi Client
ECLYPSE Connected Thermostat (ECY-STAT)
Wi-Fi
Client
Wi-Fi
Client
Wi-Fi
Client
