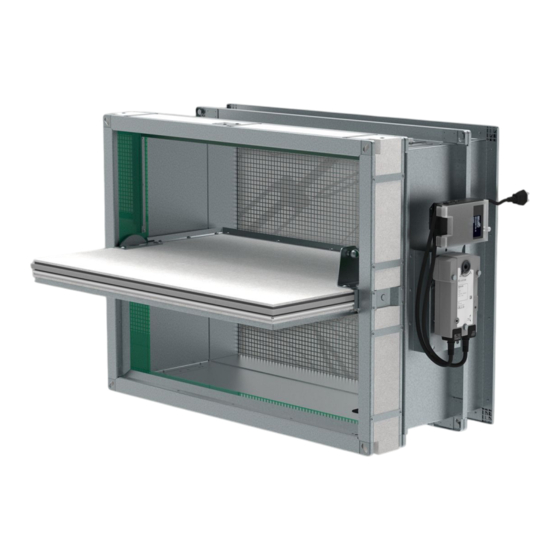

  • Page 1 S-SA2L Smoke Control Damper - AAmulti Handbook...

  • Page 2: Table Of Contents

    2/52 | S-SA2L Table of Contents Overview ............3 Technical Parameters .

  • Page 3: Overview

    “closed” position. Power is necessary for the smoke control dampers. S-SA2L dampers are designed for on a duct installations ended with grille, not in the wall or ceiling. The “Installation Methods” section shows the types of installations that are permitted.
  • Page 4 Design The casing of the S-SA2L is made of a galvanized sheet metal. Blades are made from calcium silicate boards. A foam seal, silicone rubber gasket with an intumescent seal prevent leaks of heat or smoke. The casing has flange on one side with holes for screws to attach to sheet-metal duct flanges.
  • Page 5 5/52 | S-SA2L Product Parts S-SA2L... P8 P10 P7 P11 P13 Legend P1 - Damper casing P2 - Damper blade P3 - Bendable hanger P4 - Actuator P5 - Supply and communication unit (only for BST0, GST0, BST1, BST10 activation type)

  • Page 6: Technical Parameters

    6/52 | S-SA2L Technical Parameters Durability Test • Test procedure with 10000 cycles and actuator control • No change of the necessary properties. (rotation from 0° to 90°) • Test procedure with 10000 cycles and actuator control • No change of the necessary properties.
  • Page 7 7/52 | S-SA2L Assessed Performance 15 CE 1396 Systemair Production a.s. Hlavná 371, 900 43 Kalinkovo, Slovakia 1396-CPR-0147 S-SA2L EN 12101-8 : 2011 Smoke control damper Nominal Activation Conditions/Sensitivity Pass Response Delay (Response Time) Opening/closure time proven. Duration: <60 s / 90°...

  • Page 8: Diagrams

    8/52 | S-SA2L Diagrams The pressure drop, and A-weighted total discharged sound power level depend on the nominal width and height of the damper and air flow volume at different duct pressures. The type of activation does not influence the airflow parameter, therefore only one activation type is shown in the diagrams.
  • Page 9 9/52 | S-SA2L S-SA2L-...- S-SA2L-...- Pressure drop & A-weighted sound power level in dB(A) Pressure drop & A-weighted sound power level in dB(A) 2000 3000 5000 3000 5000 10000 W: 1200, H: 400 W: 1200, H: 800 W: 1600, H: 700...
  • Page 10 10/52 | S-SA2L S-SA2L-...- S-SA2L-...- Pressure drop & A-weighted sound power level in dB(A) Pressure drop & A-weighted sound power level in dB(A) 1000 2000 1000 5000 W: 600, H: 200 W: 800, H: 250 W: 600, H: 600 W: 800, H: 600...

  • Page 11: Dimensions & Weights

    11/52 | S-SA2L Dimensions & Weights Dimensions S-SA2L... H>400 ≤125 W+65 (mm) H (mm) 1000 Free Area W (mm) 200 250 300 350 400 450 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 0,025 0,031 0,037 0,044 0,050 0,057 0,063 0,076 0,089...
  • Page 12 12/52 | S-SA2L Weights W (mm) (kg) 200 250 300 350 400 450 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 14,8 16,2 17,6 19,1 20,5 22,1 23,5 26,5 29,4 16,2 17,7 19,3 20,8 22,4 24,0 25,6 28,7 31,8 34,9...

  • Page 13: Ordering Code

    13/52 | S-SA2L Ordering Codes S-SA2L- × W - Width Dimension 200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm, 1300 mm, 1400 mm, 1500 mm, 1600 mm...

  • Page 14: Product Handling

    - fire. - other damage. Ensure that installation is performed by a trained person. The S-SA2L is made of boards and sheet metal. Thus considered fragile. Be careful when you move the smoke control damper. Two persons are necessary to move the dampers and put them onto the duct and/or hangers. It is necessary to move the bigger dampers with suitable lifting...
  • Page 15 15/52 | S-SA2L...
  • Page 16 16/52 | S-SA2L 5.a) 5.b) 5.c) ≤30 mm =40 mm =50 mm...
  • Page 17 17/52 | S-SA2L Legend for Product Handling 1 - Smoke control damper S-SA2L 2 - Connected ductwork tested according to EN 1366-9 3 - Board collar as per chosen installation 4 - Cover plates as per chosen installation F5 - Screw 4,8×16 mm DIN 7982 (delivered on the damper) F6 - Screw 4,8×16 mm DIN 7982...

  • Page 18: Installation

    • The S-SA2L smoke damper can be installed on “single” (tested according to EN 1366-9) or “multi” (tested according to EN 1366-9) ductwork. If mounted on a duct classified with lower fire resistivity, the fire resistivity of the S-SA2L smoke damper will be decreased to the duct level.
  • Page 19 • Suspension rods longer than 1,5 m require fire-resistant insulation. • The fire resistivity of the S-SA2L smoke damper must be decreased to the duct system performance. • The maximum resistivity for L1V installation is EI120S with pressure level 3 (-1500 Pa … 500 Pa).
  • Page 20 20/52 | S-SA2L ✓ ≤40 ≤40 (mm)
  • Page 21 21/52 | S-SA2L (mm) (mm) (mm) (mm) (mm) (mm) (H+10) W+10) Damper Minimum Distances (mm) S-SA2L... ≥200 ≥100 ≥100 ≥75 ≥170 ≥200...
  • Page 22 • Suspension rods longer than 1,5 m require fire-resistant insulation. • The fire resistivity of the S-SA2L smoke damper must be decreased to the duct system performance. • The maximum resistivity for L1V installation is EI120S with pressure level 3 (-1500 Pa … 500 Pa).
  • Page 23 23/52 | S-SA2L ✓ ≤40 ≤40 (mm) (mm) Damper Minimum Distances...
  • Page 24 ≥170 ≥200 Legend for Installation L2H 1 - Smoke control damper S-SA2L 2 - Connected ductwork system tested according to EN 1366-9 Thickness of boards (Pt) depends on the desired fire resistivity. Thickness of mineral wool (t) depends on the desired fire resistivity.
  • Page 25 • Suspension rods longer than 1,5 m require fire-resistant insulation. • The fire resistivity of the S-SA2L smoke damper must be decreased to the duct system performance. • The maximum resistivity for L1V installation is EI120S with pressure level 3 (-1500 Pa … 500 Pa).
  • Page 26 26/52 | S-SA2L ✓ H>400 ≥(H/2)+100 (230) (mm)
  • Page 27 27/52 | S-SA2L P13 F3 P13 F3 (100) (100) ≥50 ≥50 (mm) (mm) P13 F3 P13 F3 (100) (100) ≥50 ≥50 (mm) (mm) (100) (100) ≥50 ≥50 (mm) (mm)
  • Page 28 ≥170 ≥200 Legend for Installation L1V 1 - Smoke control damper S-SA2L 2 - Connected ductwork system tested according to EN 1366-9 Thickness of boards (Pt) depends on the desired fire resistivity. 3 - Board collar of Promatect H (Promat) - thickness per detail 4 - Cover plates made of Promatect H (Promat) - thickness per detail F1 - Screw 5,5×40 mm (e.g.
  • Page 29 • Suspension rods longer than 1,5 m require fire-resistant insulation. • The fire resistivity of the S-SA2L smoke damper must be decreased to the duct system performance. • The maximum resistivity for L1V installation is EI120S with pressure level 3 (-1500 Pa … 500 Pa).
  • Page 30 30/52 | S-SA2L ✓ (100) (mm) H>400 (230) ≥(H/2)+100 (mm)
  • Page 31 ≥170 ≥200 Legend for Installation L2V 1 - Smoke control damper S-SA2L 2 - Connected ductwork system tested according to EN 1366-9 Thickness of boards (Pt) depends on the desired fire resistivity. Thickness of mineral wool (t) depends on the desired fire resistivity.
  • Page 32 32/52 | S-SA2L Electrical Connections WARNING • Risk of electric shock. • Stop the power supply before you do work on electrical equipment. • Only approved electricians can do work on the electrical system. To access the electrical parts of this product follow instructions in "Product Handling" section.
  • Page 33 33/52 | S-SA2L Electrical Parameters for Type of Activation and Actuator T (Nm) NV (V) F (Hz) CO (W) CR (W) WS (VA) BEN230 Imax 4 A @ 5 ms B230 BEE230 AC 230 50/60 Imax 4 A @ 5 ms...

  • Page 34: Electrical Parameters

    34/52 | S-SA2L Legend for Electrical Parameters AT - Activation type B - Belimo actuator type - Supply and communication unit G - Gruner actuator type T - Torque NV - Nominal voltage F - Frequency CO - Consumption in operation...
  • Page 35 35/52 | S-SA2L Type of Activation B230 • The circuit switch between wires 2 and 3 is not part of the damper supply. • When the power supply is connected to wires 1 and 3, the actuator moves to the OPEN position.
  • Page 36 36/52 | S-SA2L Type of Activation G230 • Circuit switch for wire 3 is not part of the damper delivery. • Connect power supply to wire 1+2, actuator drives to position OPEN (1). Is also wire 3 connected to the power supply, actuator drives to position CLOSED (0).
  • Page 37 37/52 | S-SA2L Type of Activation B24 • The circuit switch between wires 2 and 3 is not part of the damper supply. • When the power supply is connected to wires 1 and 3, the actuator moves to the OPEN position.
  • Page 38 38/52 | S-SA2L Type of Activation G24 • Circuit switch for wire 3 is not part of the damper delivery. • Connect power supply to wire 1+2, actuator drives to position OPEN (1). Is also wire 3 connected to the power supply, actuator drives to position CLOSED (0).
  • Page 39 39/52 | S-SA2L Type of Activation B24-W This type of activation has cable connectors (C1 and C2) for the supply and communication unit (the communication unit is not part of the mechanism). AC/DC 24 V S4 S5 S2 S3 S6...
  • Page 40 40/52 | S-SA2L Type of Activation G24-W This type of activation has cable connectors (C1 and C2) for the supply and communication unit (the communication unit is not part of the mechanism). AC/DC 24 V S4 S5 S2 S3 S6...
  • Page 41 41/52 | S-SA2L Type of Activation B24-SR This type of activation has modulating actuator that can be used for balancing/air flow control. AC/DC 24 V DC (0)2 V ... 10 V DC 2 V ... 10 V S1 S2 S3 S4 S5 S6 <5°...
  • Page 42 42/52 | S-SA2L Type of Activation BST0 • The actuator and the control module are factory wired. • Connect the supply voltage to the connecting cable (approx. 1 m, with ferrules). • The 2-wire cable a|b to the BKSE24-6 is connected to terminals 6 and 7 (screw terminals for 2 x 1.5 mm^2 wire).
  • Page 43 43/52 | S-SA2L Legend for Activation Type BST0 L (+) - Brown N (-) - Blue 1) - Supply voltage cable 2) - 2-wire cable a/b - Connection to e.g. BKSE24-6...
  • Page 44 44/52 | S-SA2L Type of Activation GST0 • The actuator and the control module are factory wired. Coms Power In Power Out C B A R1 C R1 C Power Close Close Open Open CONF DAMPER OUT DAMPER OUT 1 C 2...
  • Page 45 45/52 | S-SA2L Type of activation BST1 IMPORTANT: Danger of electric shock! Parallel circuits, i.e. a smoke detector on multiple slave devices are not allowed! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system.
  • Page 46 46/52 | S-SA2L X4 - 4-pin spring terminal: Connection for smoke detector. • 1- (+) DC 24 V / max. 30 mA. • 2- GND. • 3- IN1 (external relay contact 1). • 4- IN2 (external relay contact 2). X6 - 6-pin connector: damper actuator (position limit switches).
  • Page 47 47/52 | S-SA2L Type of Activation BST10 IMPORTANT: Danger of electric shock! The BKNE230-24-PL may only be used with a designated master (e.g. BKS64- PL). Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system.
  • Page 48 48/52 | S-SA2L Legend for Activation Type BST10 X6 and X300 connector terminals are arranged so that only either a conventional actuator or a Belimo Top-Line actuator can be connected. X200 - 2+2-pin spring terminal: (50/60Hz) AC 230 V with Powerline signal...

  • Page 49: Operation Manual

    49/52 | S-SA2L Operation Manual Functionality Check Before and after you install the damper, make sure that the dampers functionality is checked. The functionality is checked by: 1. Refer to the “Electrical connections” section to prepare the actuator connection. 2. Opening the damper: •...
  • Page 50 50/52 | S-SA2L ≤60s Damper Inspection CAUTION: Never perform inspection when there is air flowing in the duct connected to the smoke control damper. Do not change the dampers or their structure without the approval of the manufacturer. The actuator keeps the dampers on stand-by during their life cycle. The operator obeys the applicable regulations and standards to do regular checks of the dampers.
  • Page 51 We reserve the right to make any changes to the product without prior notice, provided that these changes do not affect the quality of the product and the required parameters. Current information on all products is available on design.systemair.com.
  • Page 52 Systemair DESIGN • 2022-10-26 • Handbook_S_SA2L__en-GB • Original instructions...
