SystemAir FDS-3G OF Series Manual

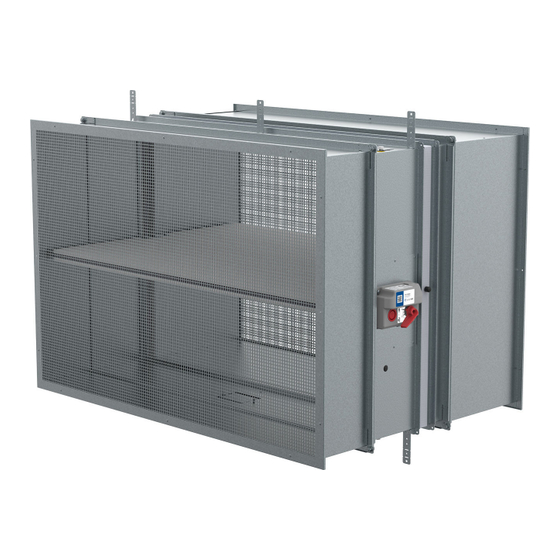

Overflow fire damper
Hide thumbs

Advertisement

Quick Links

Download this manual
FDS-3G...OF
Overflow Fire Damper FDS-3G

Advertisement

loading
Need help?

Need help?

Do you have a question about the FDS-3G OF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SystemAir FDS-3G OF Series

Summary of Contents for SystemAir FDS-3G OF Series

  • Page 1 FDS-3G…OF Overflow Fire Damper FDS-3G...

  • Page 2: Table Of Contents

    2/49 | FDS-3G…OF Table of Contents Overview Technical Parameters Diagrams Dimensions Ordering Code Installation Electrical parameters Operation manual...

  • Page 3: Overview

    3/49 | FDS-3G…OF Rectangular Fire Damper FDS-3G Description Overflow fire dampers represent passive fire protection, designed with the help of compartmentalization to prevent the spread of toxic gases, smoke and fire. Standard fire dampers are designed and certified in accordance with EN 15650 and tested for EIS criteria according to EN 1366–2.
  • Page 4 4/49 | FDS-3G…OF • Casing tightness class C as standard • Exceptionally low pressure drop • Changeable mechanism • Two inspection openings for all sizes • Great variety of installations rated up to EI120S Activation Types • H0-OF Overflow fire damper with an activation mechanism with a cover, manual crank and with a spring return release mechanism activated by a fusible thermal link set to 74°C (on demand 100°C).
  • Page 5 5/49 | FDS-3G…OF List of Accessories Detailed information about accessories for FDS-3G...OF is available in SystemairDESIGN under Fire Damper Accessories. • AM-FD: Activation Mechanisms • CBS-FD: Cover Boards...

  • Page 6: Technical Parameters

    6/49 | FDS-3G…OF Technical Parameters Durability test 50 cycles/manually operated activation mechanism – with no change of the required properties 10000 + 100 + 100 cycles/actuator operated activation mechanism – with no change of the required properties Fire testing pressure Underpressure up to 300 Pa Safety position Closed.
  • Page 7 7/49 | FDS-3G…OF Blade tightness (STN EN 1751) Class 2 as standard; Class 3 on demand Tightness of the housing (STN EN 1751) Class C as standard Conformity with EC directives 2006/42/EC Machinery Directive 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive Driving actuator types Belimo: BLF230-T, BLF24-T, BF230-T, BF24-T, BFN230-T, BFN24-T, BFN24-T, BFL230-T, BFL24-T (also with connection possibilities with acronyms ST, W)
  • Page 8 8/49 | FDS-3G…OF Legend P1 Blade P2 Casing P3 Manually operated activation mechanism (H0;H...) P4 Actuator operated activation mechanism (B...;G...) P5 Inspection lid P6 Thermoelectric fuse (BAT72;TA-72) P7 Supply and communication unit (BKN230-24;FS-UFC24-2) P8 Bendable hanger P9 Release and test button P10 Crank P11 Open position P12 Closed position...
  • Page 9 9/49 | FDS-3G…OF Assessed Performance - FDS-3G 1396 Systemair Production a.s. Hlavná 371, 900 43 Kalinkovo, Slovakia 1396-CPR-0163, FDS-3G (valid for subgroups: …EX, …KS, …OF) EN 15650 : 2010 Rectangular fire dampers Nominal activation conditions/sensitivity - Pass sensing element load bearing capacity...

  • Page 10: Diagrams

    10/49 | FDS-3G…OF Diagrams FDS-3G-200x200-H0-OF FDS-3G-200x300-H0-OF Pressure drop & sound power level (A-weighted) Pressure drop & sound power level (A-weighted) 360 l/s 50 dB(A) 50 dB(A) 45 dB(A) 45 dB(A) 40 dB(A) 40 dB(A) 35 dB(A) 35 dB(A) 30 dB(A) 30 dB(A) 25 dB(A) 25 dB(A)
  • Page 11 11/49 | FDS-3G…OF FDS-3G-300x600-H0-OF FDS-3G-500x200-H0-OF Pressure drop & sound power level (A-weighted) Pressure drop & sound power level (A-weighted) 1000 1500 2000 50 dB(A) 50 dB(A) 45 dB(A) 45 dB(A) 40 dB(A) 40 dB(A) 35 dB(A) 35 dB(A) 30 dB(A) 30 dB(A) 25 dB(A) 25 dB(A)
  • Page 12 12/49 | FDS-3G…OF FDS-3G-800x200-H0-OF FDS-3G-800x400-H0-OF Pressure drop & sound power level (A-weighted) Pressure drop & sound power level (A-weighted) 1000 1200 1400 1600 2000 2400 2800 3200 3600 l/s 50 dB(A) 50 dB(A) 45 dB(A) 45 dB(A) 40 dB(A) 40 dB(A) 35 dB(A) 35 dB(A) 30 dB(A)
  • Page 13 13/49 | FDS-3G…OF FDS-3G-1000x600-H0-OF FDS-3G-1000x800-H0-OF Pressure drop & sound power level (A-weighted) Pressure drop & sound power level (A-weighted) 3000 4000 5000 6000 7000 4000 6000 8000 10000 50 dB(A) 50 dB(A) 45 dB(A) 45 dB(A) 40 dB(A) 40 dB(A) 35 dB(A) 35 dB(A) 30 dB(A)

  • Page 14: Dimensions

    14/49 | FDS-3G…OF Free area Dimensions Dimensions FDS-3G…OF, 200 x 200 up to 1200 x 800...
  • Page 15 15/49 | FDS-3G…OF Weights Overhangs...

  • Page 16: Ordering Code

    16/49 | FDS-3G…OF Ordering Code A - Damper type W - Width Dimension 200 mm up to 1200 mm H - Height Dimension 200 mm up to 800 mm B - Type of Activation (H0-OF up to GSD24T-OF) H0-OF (Manual crank, no switches) H2-OF (Manual crank, 2 switches AC 230 V or AC/DC 24 V) H5-2-OF (Manual crank, AC/DC 24 V electromagnet, 2 switches AC 230 V or AC/DC 24 V) H6-2-OF (Manual crank, AC 230 V electromagnet, 2 switches AC 230 V or AC/DC 24 V)
  • Page 17 17/49 | FDS-3G…OF Inspection opening possitions (Removable mechanism is available for all sizes) W and H < 200 No inspection openning. Inspection possible through removable mechanism or additional inspection opening must be added to the conecting duct. W and H ≥ 200 Standardardly in position: BR and TR;...

  • Page 18: Installation

    18/49 | FDS-3G…OF Installation Methods...
  • Page 19 19/49 | FDS-3G…OF Installation, Maintenance & Operation Some damper parts may have sharp edges – therefore to protect yourself from harm, please use gloves during damper installation and manipulation. In order to prevent electric shock, fire or any other damage which could result from incorrect damper usage and operation, it is important to: ensure that installation is performed by a trained person.
  • Page 20 20/49 | FDS-3G…OF Installation 1 - Wet Using Plaster/Mortar/Concrete Filling Important: Use support inside the damper when adding filling. The weight of the filling can damage or bend the damper casing. The supporting construction opening must be prepared as depicted. Opening surfaces must be even and cleaned off. The flexible wall opening must be reinforced as per the standards for plasterboard walls.
  • Page 21 21/49 | FDS-3G…OF...
  • Page 22 22/49 | FDS-3G…OF Legend F1 Screw ≥ 5,5 DIN7981 or suitable wall plug and screw size 6. F2 Plaster/mortar/concrete filling 1 Fire damper (actuator side) 2 Bendable hanger 3 Concrete/masonry/cellular concrete wall or ceiling 4 Flexible (plasterboard) wall 4a 2 layers of plasterboard fireproof plate type F, EN 520 4b Vertical CW –...
  • Page 23 23/49 | FDS-3G…OF Area of 200 mm from opening around the damper must have the same composition and be created the same way as Flexible (plasterboard) wall. Notes ve Vertical (wall) ho Horizontal (floor/ceiling) 1) Smaller distances – resistivity must be reduced to EI90 ( ve i<->o ) S...
  • Page 24 24/49 | FDS-3G…OF Installation 2 - Dry Using Mineral Wool and Cover Boards The supporting construction opening must be prepared as depicted. Opening surfaces must be even and cleaned off. The flexible wall opening must be reinforced as per the standards for plasterboard walls. The opening dimensions are driven by the nominal dimensions of the damper with added clearance.
  • Page 25 25/49 | FDS-3G…OF...
  • Page 26 26/49 | FDS-3G…OF Legend F1 Screw ≥ 5,5 DIN7981 or suitable wall plug and screw size 6. F3 Mineral wool filling (min. 50 kg/m3) F4 Fire resistive coating, e.g. Promastop-CC/Promat A1 Cover board CBS-FD (accessory) obligatory 1 Fire damper (actuator side) 2 Bendable hanger 3 Concrete/masonry/cellular concrete wall or ceiling 4 Flexible (plasterboard) wall...
  • Page 27 27/49 | FDS-3G…OF Area of 200 mm from opening around the damper must have the same composition and be created the same way as Flexible (plasterboard) wall. Notes: ve Vertical (wall) ho Horizontal (floor/ceiling)
  • Page 28 28/49 | FDS-3G…OF Installation 3 - Soft Installation into a Soft Crossing with fire resistive coating The supporting construction opening must be prepared as depicted. Opening surfaces must be even and cleaned off. The flexible wall opening must be reinforced as per the standards for plasterboard walls. The opening dimensions are driven by the nominal dimensions of the damper with added clearance.
  • Page 29 29/49 | FDS-3G…OF...
  • Page 30 30/49 | FDS-3G…OF Legend F1 Screw ≥ 5,5 DIN7981 or suitable wall plug and screw size 6. F5 Mineral wool segment (minimum 150 kg/m3). F6 Layer of fire resistive coating (Promastop-CC/Promat) at least 2 mm thick for exposed surfaces. F7 L-profile 60 × 40 × 3 mm, length W + 300 mm or WL + 300 mm F8 Screw 3,9 ×...
  • Page 31 31/49 | FDS-3G…OF Installation 3H - Hilti Filling made only from Hilti foam Tip: Excess material can be reused as the filling for this installation. It can be inserted into the cavity before you add new foam from the gun. The supporting construction opening must be prepared as depicted.
  • Page 32 32/49 | FDS-3G…OF...
  • Page 33 33/49 | FDS-3G…OF Legend F1 Screw ≥ 5,5 e.g. DIN7981 or suitable wall plug and screw size 6. F17 Foam CFS-F FX/HILTI. 1 Fire damper (actuator side) 2 Bendable hanger 3 Concrete/masonry/cellular concrete wall or ceiling 4 Flexible (plasterboard) wall 4a 2 layers of plasterboard fireproof plate type F, EN 520 4b Vertical CW –...
  • Page 34 34/49 | FDS-3G…OF...
  • Page 35 35/49 | FDS-3G…OF Electrical connections NOTE: T/PC = Activation type / Power consuption Type of activation H0-OF This type of activation mechanism does not have any electrical equipment.

  • Page 36: Electrical Parameters

    36/49 | FDS-3G…OF Type of activation H2-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Microswitch:Power Supply: AC 125/250 V or DC 12/24 V Electric Parameters: 3A NOTES:•...
  • Page 37 37/49 | FDS-3G…OF Type of activation H5-2-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Microswitch: Power Supply: AC 125/250 V or DC 12/24 V Electric Parameters: 3A Impulse Electromagnet: Power Supply: AC (50/60 Hz)/DC 24 V...
  • Page 38 38/49 | FDS-3G…OF Type of activation H6-2-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Microswitch: Power Supply: AC 125/250 V or DC 12/24 V Electric Parameters: 3A Impulse Electromagnet: Power Supply: AC 230 V, 50/60 Hz...
  • Page 39 39/49 | FDS-3G…OF Type of activation B230T-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Actuator power supply: AC 230 V, 50/60 Hz NOTES: •...
  • Page 40 40/49 | FDS-3G…OF Type of activation G230T-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Actuator power supply: AC 230 V, 50/60 Hz NOTES: •...
  • Page 41 41/49 | FDS-3G…OF Type of activation B24T-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Actuator power supply: AC (50/60 Hz)/DC 24 V NOTES: •...
  • Page 42 42/49 | FDS-3G…OF Type of activation G24T-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Actuator power supply: AC (50/60 Hz)/DC 24 V NOTES: •...
  • Page 43 43/49 | FDS-3G…OF Type of activation BSD230T-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. Power consumption must be observed. NOTES: •...
  • Page 44 44/49 | FDS-3G…OF Type of activation GSD230T-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Only qualified electricians are allowed to work on the electrical system. Power consumption must be observed. NOTES: •...
  • Page 45 45/49 | FDS-3G…OF Type of activation BSD24T-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Power consumption must be observed. NOTES: • Supply via safety isolation transformer. Legend 1 Blue cable colour 2 Brown cable colour...
  • Page 46 46/49 | FDS-3G…OF Type of activation GSD24T-OF IMPORTANT: Risk of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Power consumption must be observed. NOTES: • Supply via safety isolation transformer. Legend 1 Blue cable colour 2 Brown cable colour...

  • Page 47: Operation Manual

    47/49 | FDS-3G…OF Operation manual Warning To avoid injury, make sure to wear gloves and keep the blades movement area clear while manipulating with the damper. Fire Damper Functionality Check Manually Operated Activation Mechanism Open the damper - turn the red crank (P10) using an Allen bent wrench No. 10 (P13). Turn the red crank so that the indicator arrow is pointing to the “OPEN“...
  • Page 48 48/49 | FDS-3G…OF Damper Inspection The activation mechanism keeps the dampers on stand-by during their entire life cycle in accordance with this manual issued by the manufacturer. It is not permitted to alter the dampers in any way nor perform any changes to their structure without the manufacturer’s consent.
  • Page 49 Systemair DESIGN • 2020-10-23 • HandBook_FDS_3G_OF_en-GB • 8519DCD0-0720-11EB-DCA1-21ABDD8D93BC...
