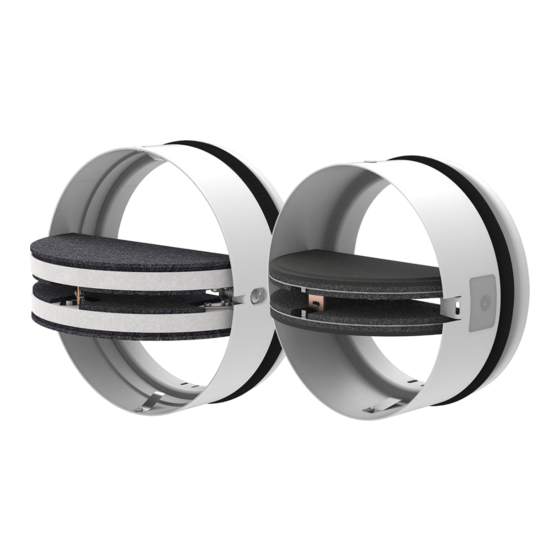

Cartridge fire damper
Hide thumbs

Advertisement

Quick Links

Download this manual
F-C2
Cartridge Fire Damper
Handbook

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-C2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SystemAir F-C2

Summary of Contents for SystemAir F-C2

  • Page 1 F-C2 Cartridge Fire Damper Handbook...

  • Page 2: Table Of Contents

    2/33 | F-C2 Table of Contents Overview ............3 Technical Parameters .

  • Page 3: Overview

    By default, F-C2 fire dampers are only supplied with spring loaded activation, optionally with micro switch. In case of fire, the fire damper closes automatically when the temperature of the air in the duct reaches 72°C. The F-C2 damper closes after the melting of the thermal fuse. After the closing of the damper blade, it is mechanically locked in the closed position and can only be opened manually, which requires access of the maintenance staff into the duct.
  • Page 4 Calcium silicate board is used in sizes greater than 125 mm. List of installation Accessories • CBR-C2: Set of 4 cover boards mandatory for dry installation of F-C2 • FCR-C2: Flexible duct connection for F-C2 accessibility...

  • Page 5: Technical Parameters

    5/33 | F-C2 Technical Parameters Durability test 50 cycles with no change of the required properties Fire testing pressure Under-pressure up to 300 Pa Safety position Closed - In fire scenario the damper closes via spring between blades Airflow direction...
  • Page 6 Dry indoor conditions with a temperature range of -20 °C to +50 °C. The damper blade is transported in closed position. Product parts The F-C2 packaging also includes additional product label, that must be attached to the duct next to wall where the F- C2 fire damper is installed. DN80 ... DN125 DN140 ...
  • Page 7 7/33 | F-C2 Assessed Performance of F-C2 20 CE 1396 Systemair Production a.s. Hlavná 371, 900 43 Kalinkovo, Slovakia 1396-CPR-0183, F-C2 EN 15650 : 2010 Circular fire dampers Nominal activation conditions/sensitivity - Pass • sensing element load bearing capacity • sensing element response temperature Response delay (response time) - Pass •...

  • Page 8: Diagrams

    Accessory CBR-C2 and fire resistance class (EI60S, EI90S and EI120S) do not affect the pressure drop and A-weighted total discharged sound power level. The pressure drop and A-weighted total discharged sound power level depend on the nominal diameter of the F-C2 and air flow volume at different duct pressures.
  • Page 9 9/33 | F-C2 F-C2-...-H0 F-C2-...-H1 Pressure drop & A-weighted sound power level in dB(A) Pressure drop & A-weighted sound power level in dB(A) Size: 125 Size: 125 Size: 150 Size: 150 Size: 140 Size: 140 m³/h m³/h F-C2-...-H0 F-C2-...-H1 Pressure drop & A-weighted sound power level in dB(A) Pressure drop &...

  • Page 10: Dimensions

    10/33 | F-C2 Dimensions & Weights Dimensions (mm) DN80 ... DN125 DN140 ... DN200 DN-1,5 DN-1,5 Overhangs DN (mm) (mm) 13,8 16,3 18,8 23,8 28,8 31,3 47,0 52,0 57,0 67,0 77,0 Weights DN (mm) m (kg) 0,20 0,23 0,25 0,26...

  • Page 11: Ordering Code

    (Spring loaded blades, release by a thermal fuse link set to 72 °C., closed indication with one AC/DC 24 V contact switch) Example of the F-C2 Fire Dampers Ordering Code F-C2-100-H1 Cartridge fire damper, nominal diameter 100 mm, manually operated activation mechanism with open and closed position indication with 24 V contact microswitches.

  • Page 12: Installation

    12/33 | F-C2 Installation Methods EI 60 (v i ↔ o) S ≥ 100 ≥ 100 mm EI 90 (v i ↔ o) S F-C2 ≥ 125 ≥ 500 kg/m 360° DN80 ... DN125 EI 120 (v i ↔ o) S ≥...
  • Page 13 - Horizontal supporting construction (floor/ceiling) Installation rules • The F-C2 fire damper is installed into the duct, in the place where the fire-proof wall is, or at the end of the duct in front of an air valve or a similar outlet.
  • Page 14 Installation Distances According to the standard EN 1366-2, the minimum distance from the wall or ceiling to the duct that holds F-C2 is 75 mm. For multiple crossings through a fire resistive wall the minimum distance between two ducts that hold F-C2 is 200 mm.
  • Page 15 15/33 | F-C2 EI 60 (v i ↔ o) S ≥ 100 ≥ 100 mm EI 90 (v i ↔ o) S F-C2 ≥ 125 ≥ 500 kg/m 360° DN80 ... DN125 EI 120 (v i ↔ o) S ≥ 150 EI 60 (h i ↔...
  • Page 16 16/33 | F-C2 ≥100 ((EI60S); (DN140...DN200 = EI90S)) ≥125 (DN80...DN125 = EI90S) ≥150 (EI120S) ≤45 (mm) ≥100 (EI60S, EI90S, EI120S) ≤45 (mm) ≥100 ((EI60S); (DN140...DN200 = EI90S)) ≥125 (DN80...DN125 = EI90S) ≥150 (EI120S) ≤60 (mm) ≥100 (EI60S, EI90S, EI120S) ≤60...
  • Page 17 17/33 | F-C2 (mm) = DN+60 (mm) = DN+60...
  • Page 18 18/33 | F-C2 (mm) = DN+60...
  • Page 19 19/33 | F-C2 Opening and Wall and/or Ceiling Preparations (mm): ≥100 ((EI60S); (DN140...DN200 = EI90S)) ≥125 (DN80...DN125 = EI90S) ≥150 (EI120S) (mm): ≥12,5 (EI60S,EI90S) ≥15 (EI120S) (mm): ≥50 ((EI60S); (DN140...DN200 = EI90S)) ≥75 (EI90S) ≥90 (EI120S) ≥40 mm; ≥30 kg/m (EI60S) ≥40 mm;...
  • Page 20 F-C2 Legend Installation 1 - Wet: F1 Plaster/mortar/concrete filling 1 Fire damper (F-C2) 2 Connected metal ductwork A2 Flexible duct coupling FCR-C2 / return plastic or metal valve (e.g. BALANCE-E) 3 Concrete/masonry/cellular concrete wall or ceiling 4 Flexible (plasterboard) wall 4a 2 layers of plasterboard fireproof plate type F, EN 520 4b Vertical CW –...
  • Page 21 Installation Distances According to the standard EN 1366-2, the minimum distance from the wall or ceiling to the duct that holds F-C2 is 75 mm. For multiple crossings through a fire resistive wall the minimum distance between two ducts that hold F-C2 is 200 mm.
  • Page 22 22/33 | F-C2 Notes: 2. Dry - Dry Installation, Using Mineral Wool and Coverplates a) - Flexible (plasterboard) wall b) - Concrete/masonry/cellular concrete (rigid) wall - Vertical supporting construction (wall) ≥100 ((EI60S); (DN80...DN125 = EI90S)) ≥125 (DN140...DN200 = EI90S) ≥150 (EI120S) ≤45...
  • Page 23 23/33 | F-C2 ≥100 ((EI60S); (DN80...DN125 = EI90S)) ≥125 (DN140...DN200 = EI90S) ≥150 (EI120S) ≤45 (mm) ≥100 ((EI60S); (DN80...DN125 = EI90S)) (mm) ≥125 (DN140...DN200 = EI90S) ≥150 (EI120S) ≤45 DN/2 + 85 (mm) ≥100 ((EI60S); (DN80...DN125 = EI90S)) ≥125 (DN140...DN200 = EI90S) ≥150 (EI120S)
  • Page 24 24/33 | F-C2 Opening and Wall and/or Ceiling Preparations (mm): ≥40 mm; ≥30 kg/m (EI60S) ≥12,5 (EI60S,EI90S) ≥40 mm; ≥80 kg/m (EI90S) ≥15 (EI120S) ≥60 mm; ≥85 kg/m (EI120S) (mm): (mm): ≥50 (EI60S; DN80...DN125 = EI90S) ≥100 ((EI60S); (DN80...DN125 = EI90S)) ≥75 (DN140...DN200 = EI90S)
  • Page 25 F2 Mineral wool filling (min. 50 kg/m3) F3 Fire resistive coating, e.g. Promastop-CC/Promat F4 Screw d=5.5; e.g. DIN7981 1 Fire damper (F-C2) 2 Connected metal ductwork A1 Cover boards CBR-C2 (accessory) obligatory A2 Flexible duct coupling FCR-C2 / return plastic or metal valve (e.g. BALANCE-E)
  • Page 26 Installation Distances According to the standard EN 1366-2, the minimum distance from the wall or ceiling to the duct that holds F-C2 is 75 mm. For multiple crossings through a fire resistive wall the minimum distance between two ducts that hold F-C2 is 200 mm.
  • Page 27 27/33 | F-C2 ≥100 (DN80...DN125 = EI60S, EI90S) ≥150 (DN80...DN125 = EI120S) ≤45 ≥500 (mm) ≥100 (DN80...DN125 = EI60S, EI90S) ≥150 (DN80...DN125 = EI120S) ≤45 ≥500 (mm) ≥100 (DN80...DN125 = EI60S, EI90S) ≥150 (DN80...DN125 = EI120S) ≤45 (mm) ≥100 (DN80...DN125 = EI60S, EI90S) ≥150 (DN80...DN125 = EI120S)
  • Page 28 28/33 | F-C2 ≥100 (DN80...DN125 = EI60S, EI90S) ≥150 (DN80...DN125 = EI120S) ≤60 (mm) ≥100 (DN80...DN125 = EI60S, EI90S) ≥150 (DN80...DN125 = EI120S) ≤45 ≤60 (mm) Opening and Wall and/or Ceiling Preparations (mm): (mm): (mm): ≥40 mm; ≥30 kg/m (EI60S) ≥12,5 (EI60S,EI90S)
  • Page 29 F5 Mineral wool filling (min. 100 kg/m3) F6 Layer of fire resistive coating (Promastop-CC/Promat) at least 2 mm thick for exposed surfaces. 1 Fire damper (F-C2) 2 Connected metal ductwork A2 Flexible duct coupling FCR-C2 / return plastic or metal valve (e.g. BALANCE-E)

  • Page 30: Electrical Parameters

    30/33 | F-C2 Electrical Connections Type of activation H0 This type of activation mechanism does not have any electrical equipment. Type of activation H1 IMPORTANT: Risk of electric shock! Microswitch: Power Supply: 12/24V DCElectric Parameters: 3A Legend NO Blue cable colour...

  • Page 31: Operation Manual

    F-C2 Operation Manual Warning: Both sides of F-C2 blades are spring loaded in the open position and are closing very quick. To avoid injury, make sure to keep the blades movement area clear while manipulating with F-C2. The fire damper is ready for installation when its blades are in open position. The blade position, if using a H1 version, is indicated by an end switch, which indicates when pushed the damper blades’...
  • Page 32 • Check of the end switch indicating the open and closed position, correction and record if needed • Check if the damper is moved in its standard position. The F-C2 damper’s position is correct when, after the closure, the blades are in between the planes forming the outside surface of the wall – the ideal position is when the blade is in the middle between these planes.
  • Page 33 Systemair DESIGN • 2021-08-04 • Handbook_F_C2_en-GB...
