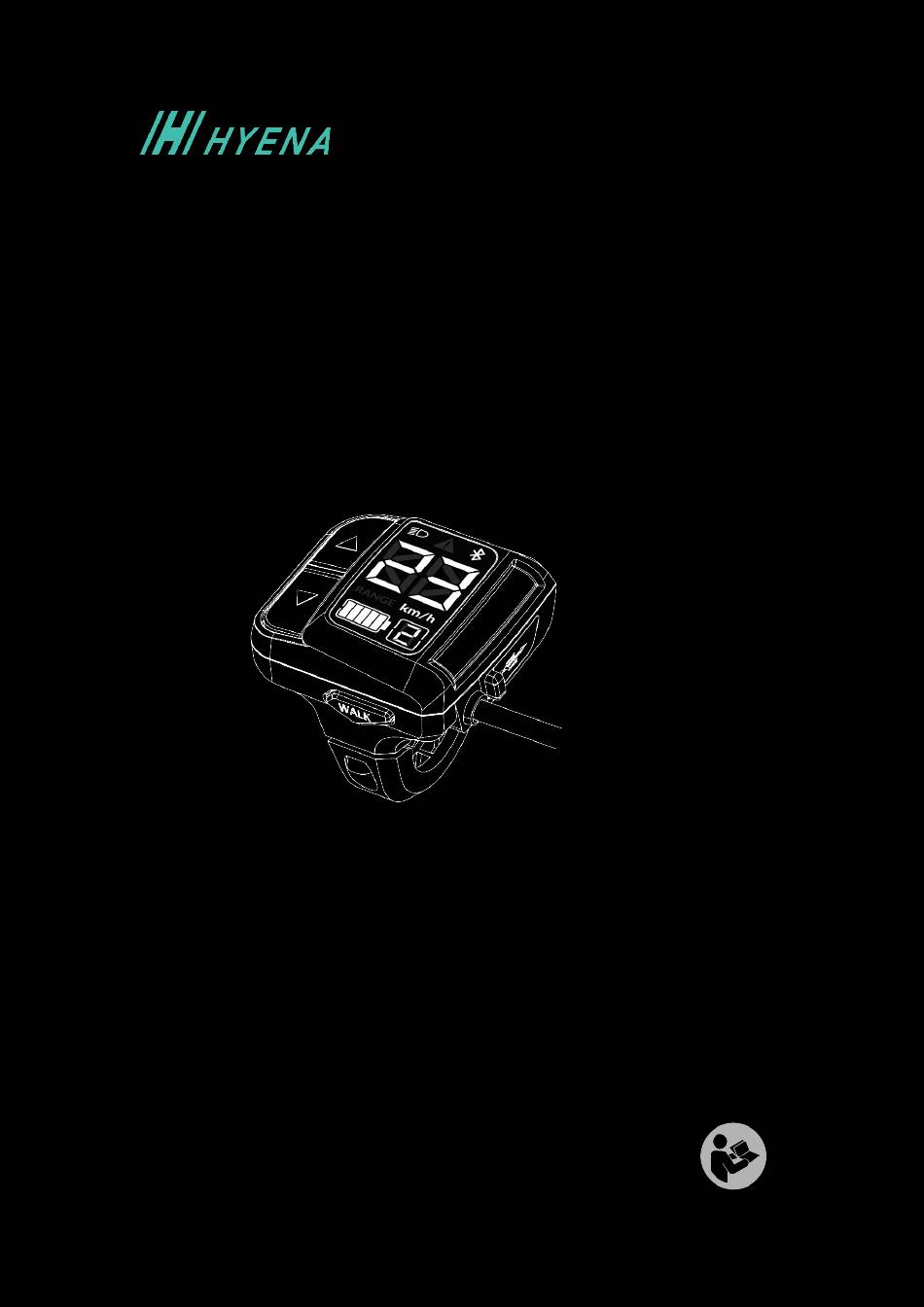

- Page 1 Product Manual LCD Compact EX (CC-02) Original Instruction Version 221124 Copyright © 2022 HYENA INC. All Right Reserved.
-
Page 2: Table Of Contents
Table of Contents Introduction Product Features Product Description .................. 1 Parts Description ..................1 Product Dimension ................... 2 Cable Pin Definition .................. 2 Technical Data Function ....................3 Characteristic .................... 3 Mounting Parameter ................. 3 Connection....................3 Indicator Information ................. 4 Certification .................... -
Page 3: Introduction
Product Features Product Description The Hyena LCD Compact EX (CC-02) e-bike handlebar HMI features all in one function: compact size with complete info and precise digital information, large ergonomic buttons. In addition, support the Apps and service tool connection via Bluetooth. -
Page 4: Product Dimension
570 or 720 29.5 Φ4.0 49.0 Φ22.2 NOTE: The connection length between this HMI to its power supply (controller), including extension cables, shall be limited to under 3 meters. Cable Pin Definition CAN L DEN/HMI CAN H VCC+ HYENA E-BIKE SYSTEMS... -
Page 5: Technical Data
Turn on/off light Long press Up button Walk-assist Refer to page 7 USB charging Max. 5V/1A USB 2.0 TYPE A Connection Bluetooth / USB 3.0 / Hyena 6P Battery wake up function HMI/DEN Characteristic Protocol Support Hyena CAN Rated voltage 12Vdc... -
Page 6: Indicator Information
Indicator Information Current speed 0 to 99 Unit in 1 km/hour Range 0 to 99 Unit in 1 km (Battery with Hyena CAN required) Riding support level 0 to 4 Battery status 5 segments Light on indicator Head light icon... -
Page 7: Mounting Tool List
• Carefully install is necessary, do not strike it with any tool such as a hammer or wrenches. STEP Mount the HMI hook on the handlebar. STEP Mount and fasten the hex socket head screw with torque to 0.25 Nm (2.5 kgf/cm). HYENA E-BIKE SYSTEMS... -
Page 8: Operation
-The system is activated as soon as you start pedaling. -The e-bike drive output only supports a speed below 25/45 km/h, as soon as you have reached 25/45 km/h, the e-system suspends the motor support, then automatically reactivates when your speed is below 25/45 km/h. HYENA E-BIKE SYSTEMS... - Page 9 Make sure you are ready and stand steady before activating the walk assistance. Do NOT activate the walk assistance when you ride on the e-bike or if the wheels are not in contact with the ground. HYENA E-BIKE SYSTEMS...
-
Page 10: Error Code List
Turn Lights Turn signal error (FL) Maintenance Maintenance notification Battery Battery overvoltage Bluetooth Bluetooth error Battery Battery undervoltage Brake sensor Brake sensor error Battery Low capacity Rear light Rear light malfunction Battery Empty capacity Light Light short circuit HYENA E-BIKE SYSTEMS... -
Page 11: Safety Instructions
• Do NOT drop the product from more than 30 cm (11.81 output cable is frayed, has broken insulation, or any inches) in height. other signs of damage. • All the component leads shall use original Hyena Maintenance components. • Do NOT clean the product or any e-system component •... - Page 12 Hyena Inc. Tel: +886 4 23598810 Fax: +886 4 23598610 www.hyena-ebike.com Address: No.25, Jingke N. Rd., Nantun Dist., Taichung City 408, Taiwan (R.O.C.) HYENA E-BIKE SYSTEMS...
