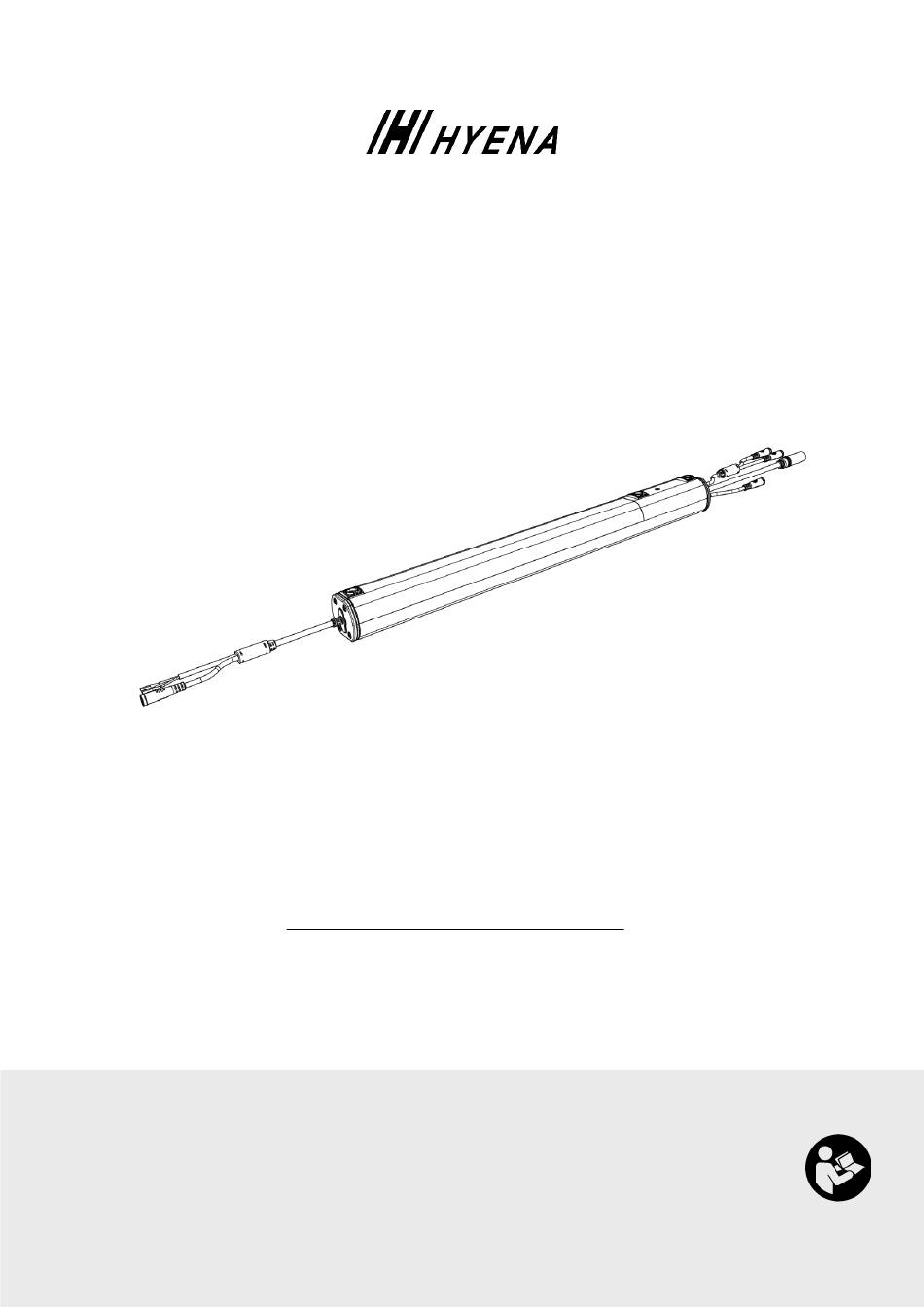

- Page 1 This guideline is applicable for the Hyena e-bike system only BP-B250 Product Manual Copyright © 2020 HYENA INC. All Right Reserved. Version 1.2 This manual is intended primarily for the trained technician to install, disassemble, or maintain the e-bike.
-
Page 2: Table Of Contents
Content Product Features Product Description Parts Description Product Dimension Pin Definition Technical Data Battery Driver Mounting Tool List Accessory List Mounting Instructions Operation Operation Instructions Charging Instructions Safety Instructions Important Notice Grounding Instructions Moving and Storage Instructions Maintenance Product Warning Label Disposal... -
Page 3: Product Features

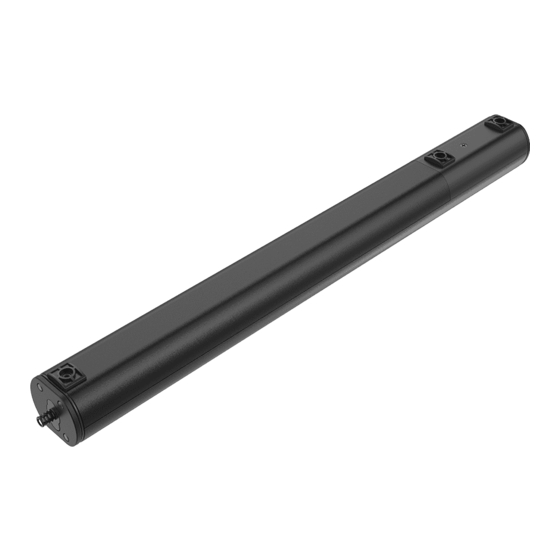

Product Features Product Description BP-B250 in-tube battery is the ideal companion for slim outlook e-bike, it features lightweight and ultra-slender to keep elegance bike outlook. Parts Description Front light connector Charging socket connector HMI connector Sensor connector Battery fixation gasket (optional) - Page 4 Connector：Ø 9.5 mm, L34mm Connector：Ø 13 mm, L47mm E. HMI Cable F. Front Light Cable Cable OD：Ø 4 mm Cable OD：Ø 4 mm Cable Length：265±15 mm Cable Length：415±15 mm Connector：Ø 9.5 mm, L34mm Connector：Ø 9.5 mm, L34mm HYENA E-BIKE SYSTEMS...
-
Page 5: Pin Definition
Phase U Output 5V motor power Output 5V motor ground Hall W Input Hall signal of phase W Output Phase V Hall U Input Hall signal of phase U Hall V Input Hall signal of phase V HYENA E-BIKE SYSTEMS... - Page 6 Name Direction Description Remark Output 6V rear light power Input 6V rear light ground Front Light (2 terminals, connect to front light) Name Direction Description Remark Output 6V front light power Input 6V front light ground Black HYENA E-BIKE SYSTEMS...
- Page 7 (6 pins female, connect to HMI) Name Direction Description Remark CAN L Bidirectional CAN Low Null Input CAN H Bidirectional CAN High DEN/HMI Input Active low, used to wake up from sleep mode Input 12V HMI ground VCC+ Output 12V HMI power HYENA E-BIKE SYSTEMS...
- Page 8 Direction Description Remark Input Power Output Charge Ground Output Ground Charging Socket Input (6 pins female, connect to battery charger) Name Direction Description Remark Ground Input Ground Output Power Input Charge Null Input Null Bidirectional Null Bidirectional HYENA E-BIKE SYSTEMS...
-
Page 9: Technical Data
Typical capacity 252Wh Energy content < 28.0V±0.3V Cut off voltage CC-CV (constant voltage with limited Charging mode current) 42.0V±0.3V Charge voltage Support 2A Hyena standard charger ≤ 4A±0.2A Charge Current Continuous Discharge Current 1.45 kg Weight IPX5 Waterproof level Characteristic Protocol CAN2.0A... -
Page 10: Driver
2.9 seconds (not continuously) Communication Loss Protection no Console communication for 2 seconds Driver stops assist when voltage < 28.0V Under voltage protection for 10 seconds Driver stops assist when voltage > 45.0V Over voltage protection for 10 seconds HYENA E-BIKE SYSTEMS... - Page 11 Motor phase 120゜ Battery protocol Hyena proprietary protocol Parameter table Parameter 2.0 Error Code table Hyena proprietary error code table Walk assistance Up to 4 km/hr Riding Support level 3 segments Level 1: 08±1 A Level 2: 10±1 A Current limit Level 3: 12±1 A...
-
Page 12: Mounting
- The bike image seen in the manual may be different from the actual bike, but will be enough to help you understand related instructions. Battery Installation Step 1: Insert the battery through the bike frame. Step 2: Pull out the component cables and fasten the fixation screws (with maximum torque 5Nm). HYENA E-BIKE SYSTEMS... - Page 13 Step 1: Insert the charging port adapter. Make sure the Step 2: Fasten 4 pcs of screws. dustproof plug end toward the seat tube. Step 3: Connect the battery and charging socket connectors. Cable Connecting Rear Light Sensor Motor Charging Socket Front Light HYENA E-BIKE SYSTEMS...
-
Page 14: Operation
This may lead to injury or cause the bicycle before using it for the first time. to fall over, damaging the components. • All Hyena Chargers only use genuine Hyena batteries • CAUTION - According to ECP, when the battery is in... -
Page 15: Charging Instructions
• The type of socket for charge connector might be different on the different type of batteries, please refer to the battery instruction. HYENA E-BIKE SYSTEMS... -
Page 16: Safety Instructions
• Do not bundle the charger cables. signs of damage. • Do not hold the battery charger by the cables when • All the component leads shall use original Hyena carrying it. components. • In order to prevent the cable from being damaged, avoid •... -
Page 17: Product Warning Label
• Dispose of the used battery according to local • Do not dispose of e-bikes and their components with ordinances and/or regulations. household waste. SAVE THESE INSTRUCTIONS HYENA E-BIKE SYSTEMS...
