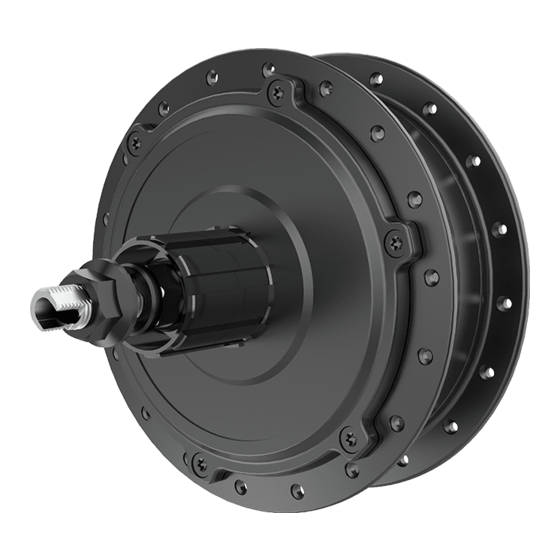

- Page 1 Product Manual MRC-A250 Original Instruction Version 220818 Copyright © 2022 HYENA INC. All Right Reserved.
-
Page 2: Table Of Contents
Mounting Parameter ................. 4 Connection....................4 Certification ....................4 Mounting Tool List ....................5 Accessory List ................... 5 Mounting Instructions ................6 Safety Instructions Important Notice ..................8 Moving and Storage Instructions .............. 8 Maintenance ..................... 8 Disposal ....................8 HYENA E-BIKE SYSTEMS... -
Page 3: Introduction
Introduction This manual is intended primarily for the trained technician to install, disassemble, or maintain the Hyena e-bike system only. Please read all the safety warnings and instructions carefully. Failure to follow the warnings and instructions may result in death or severe injuries. Save this manual for future reference. -
Page 4: Product Dimension
15.0 41.5 Φ10.0 K value ±0.1 197±2.0 WL value ±10.0 35.0 *(OLD) K value: PN. 56R010, F=137 PN. 56R031, F=137 PN. 56R043, F=137 *(Cable) WL value: PN. 56R010, WL=180 PN. 56R031, WL=200 PN. 56R043, WL=200 Unit: mm HYENA E-BIKE SYSTEMS... -
Page 5: Technical Data Function
Weight 2.9 kg (6.39 lb) Waterproof level IPX4 Hall sensor Speed sensor 1 Magnet Temperature sensor Characteristic Protocol Control type Sine wave Reduction ratio 1:5.2 Operating temperature -10℃~+40℃ 80%RH Storage temperature -20℃~+70℃ 80%RH ≥ 50 MΩ Insulation HYENA E-BIKE SYSTEMS... -
Page 6: Mounting Parameter
Cassette 8-10 speed Freewheel type Cable outlet Drive side PN. 56R010, Cable =180mm Cable length 180mm or 200 mm PN. 56R031, Cable = 200mm PN. 56R043, Cable = 200mm JL-F-Z910AG Standard connector Connection Certification EN 15194:2017 RoHS HYENA E-BIKE SYSTEMS... -
Page 7: Mounting
Flat washer (2 PCS) Hexagon nut (2 PCS) Torque washer (2 PCS) OD22xID12xt2.5mm M12xP1.25xt10mm OD20XID12xW10xt4 Plastic gasket (1 PC) Button head socket screw Nut cap (2 PCS) (attached on the motor) (6 PCS) (attached on the motor) OD26xID17.5x29mm OD56xID34xt2mm M5x7mm HYENA E-BIKE SYSTEMS... -
Page 8: Mounting Instructions
The bike image in the manual may be different from the actual bike, but will be enough to help you understand related instructions. Exploded View of Assembly Installation STEP STEP Install and fasten the cassette sprocket (right side). Remove the screws and plastic gasket from the motor (left side). HYENA E-BIKE SYSTEMS... - Page 9 Insert the torque washer through the motor shaft (washer bulge aligns with the flat side of the shaft). STEP STEP Install the motor (rear wheel). Insert the flat washer and fasten the hex nut then install the nut cap. STEP Complete the installation. HYENA E-BIKE SYSTEMS...
-
Page 10: Safety Instructions
• Do NOT drop the product from more than 30 cm (11.81 output cable is frayed, has broken insulation, or any inches) in height. other signs of damage. • All the component leads shall use original Hyena Maintenance components. • This product is not intended to be used at ambient •... - Page 11 This page is intended to be blank. HYENA E-BIKE SYSTEMS...
- Page 12 Hyena Inc. Tel: +886 4 23598810 Fax: +886 4 23598610 www.hyena-ebike.com Address: No.25, Jingke N. Rd., Nantun Dist., Taichung City 408, Taiwan (R.O.C.) HYENA E-BIKE SYSTEMS...
