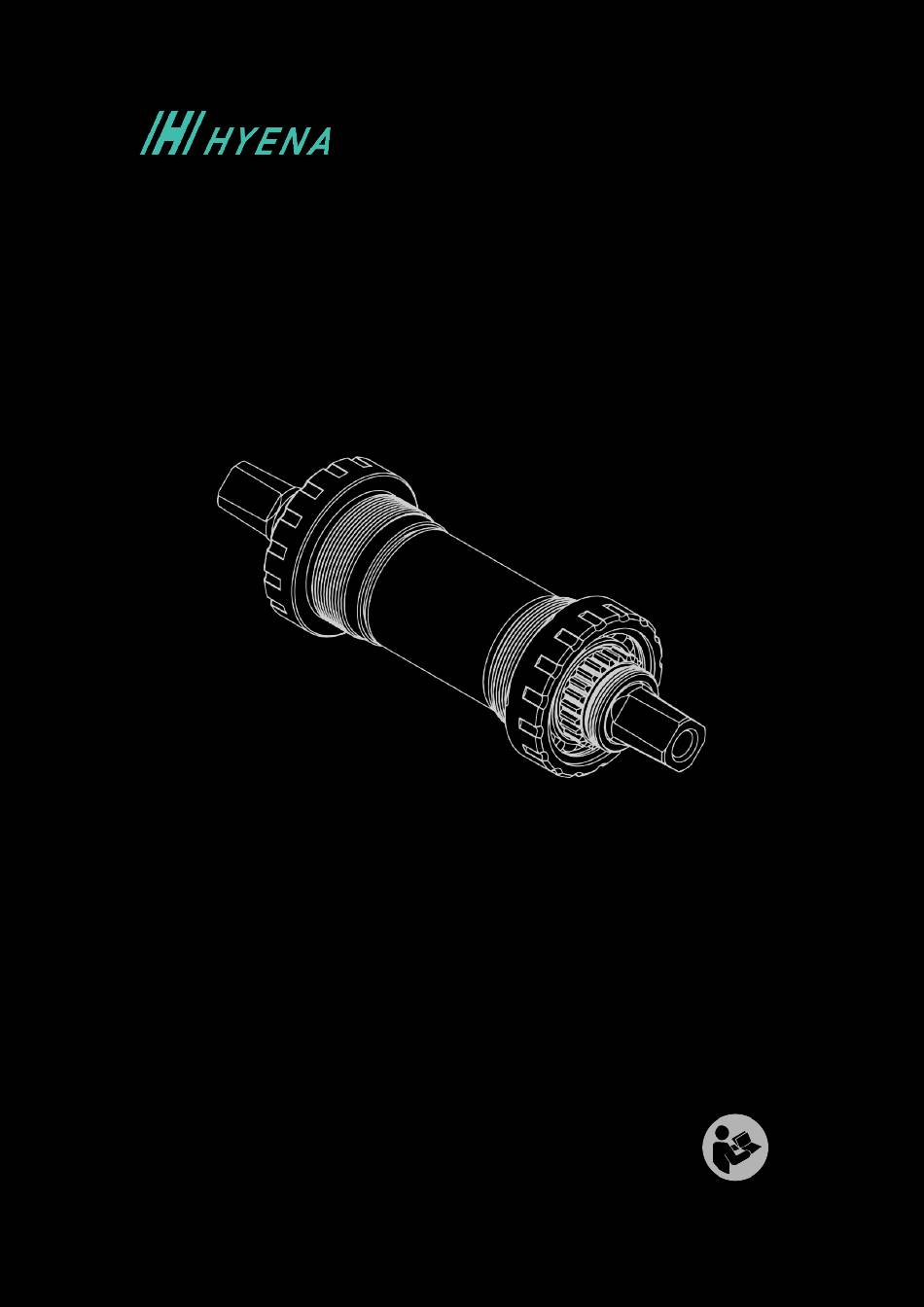

- Page 1 Product Manual ST-SQ-2 Original Instruction Version 230107 Copyright © 2023 HYENA INC. All Right Reserved.
-
Page 2: Table Of Contents
Technical Data Function ....................4 Characteristic .................... 4 Mounting Parameter ................. 4 Certification ....................4 Mounting Instructions ................5 Safety Instructions Important Notice ..................6 Moving and Storage Instructions .............. 6 Maintenance ..................... 6 Disposal ....................6 HYENA E-BIKE SYSTEMS... -
Page 3: Introduction
Product Features Product Description The ST-SQ-2 is a BB-type bilateral crank torque sensor used on Hyena system e-bikes to detect the pedal torque and rotation speed. It features a simple design and small size with high measurement accuracy and linear signal. -
Page 4: Cable Connection
T47 Type Product No. Spindle length Left side Housing distance Right side Cable to BB(R) 155 mm 58.5 mm 73 mm 52 mm 36.5 mm 57T013 Cable Connection HYENA E-BIKE SYSTEMS... -
Page 5: Signal Charts
Signal Charts HYENA E-BIKE SYSTEMS... -
Page 6: Technical Data
Output voltage 0.84 to 3.32V Mounting Parameter Spindle length 155/177/197 mm Spindle type Square BB housing type BSA/T47 Cup thread 68/73/100/120 mm Cable length 120 mm Connector JL-F-Z609AG Certification EN 15194:2017 EN 14764 City bike EN 60529 RoHS HYENA E-BIKE SYSTEMS... -
Page 7: Mounting Instructions
NOTE: Please pay attention to the direction of the “Stop Marking” as shown. STEP STEP Insert and tighten the bracket bowl cup of the left side Install the chainwheel, groove nut and cranks. bottom with torque to 35 Nm. STEP Completed the installation. HYENA E-BIKE SYSTEMS... -
Page 8: Safety Instructions
• All the component leads shall use original Hyena • Do NOT drop the product from more than 30cm (11.81 components. inches) height. - Page 9 Hyena Inc. Tel: +886 4 23598810 Fax: +886 4 23598610 www.hyena-ebike.com HYENA E-BIKE SYSTEMS Address: No.25, Jingke N. Rd., Nantun Dist., Taichung City 408, Taiwan (R.O.C.)
