This guideline is applicable for the Hyena e-bike system only
CT-02
Product Manual
Copyright © 2020 HYENA INC. All Right Reserved.
Version 1.0
This manual is intended primarily for the trained technician to install, disassemble, or maintain the e-bike.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT-02 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyena CT-02

Summary of Contents for Hyena CT-02

  • Page 1 This guideline is applicable for the Hyena e-bike system only CT-02 Product Manual Copyright © 2020 HYENA INC. All Right Reserved. Version 1.0 This manual is intended primarily for the trained technician to install, disassemble, or maintain the e-bike.

  • Page 2: Table Of Contents

    Content Product features Product Description Product Dimension Cable Pin Definition Technical Data Characteristic Mounting Parameter Certification Mounting Tool List Accessory List Mounting Instructions Safety Instructions Important Notice Moving and Storage Instructions Maintenance Disposal...

  • Page 3: Product Features

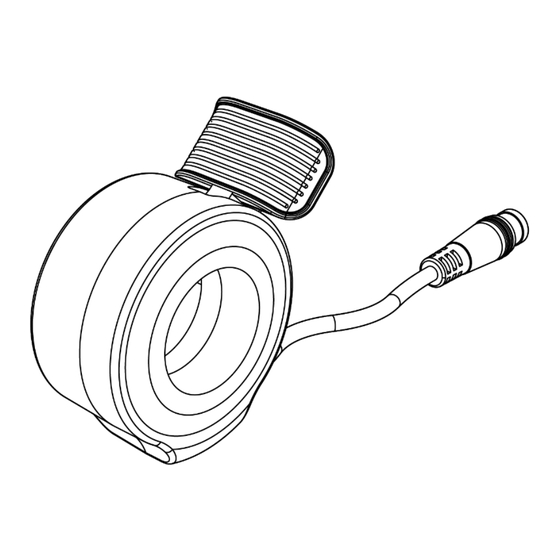

    Product features Product Description The Hyena CT-02 throttle features universal design and easy installation on the bike handlebar. It fits most e-bikes, provides steady and sensitive control of speed. Product Dimension Cable Pin Definition Signal HYENA E-BIKE SYSTEMS...

  • Page 4: Technical Data

    Technical Data Characteristic Protocol Support Hyena CAN Operating voltage Output voltage 0.8~4.2±0.1V Operating temperature -20℃~+80℃80%RH Storage temperature -20℃~+80℃80%RH Waterproof level IPX5 Mounting Parameter Dimension (mm) L49, W30, H48 mm Weight <50g Mounting position Handlebar Cable length Optional Standard connector Hyena 3P male...

  • Page 5: Mounting

    Step 3: Fasten the screw. Step 4: Replace the handlebar grip. • NOTE - The bike image and mounting position seen in the manual may be different from the actual bike, but will be enough to help you understand related instructions. HYENA E-BIKE SYSTEMS...

  • Page 6: Safety Instructions

    • WARNING - When using the CT-02 Throttle, basic • Do not load or move the product in the rain whenever precautions should always be followed, including the possible, and make sure it has no moisture or mildew following: before loading it.
