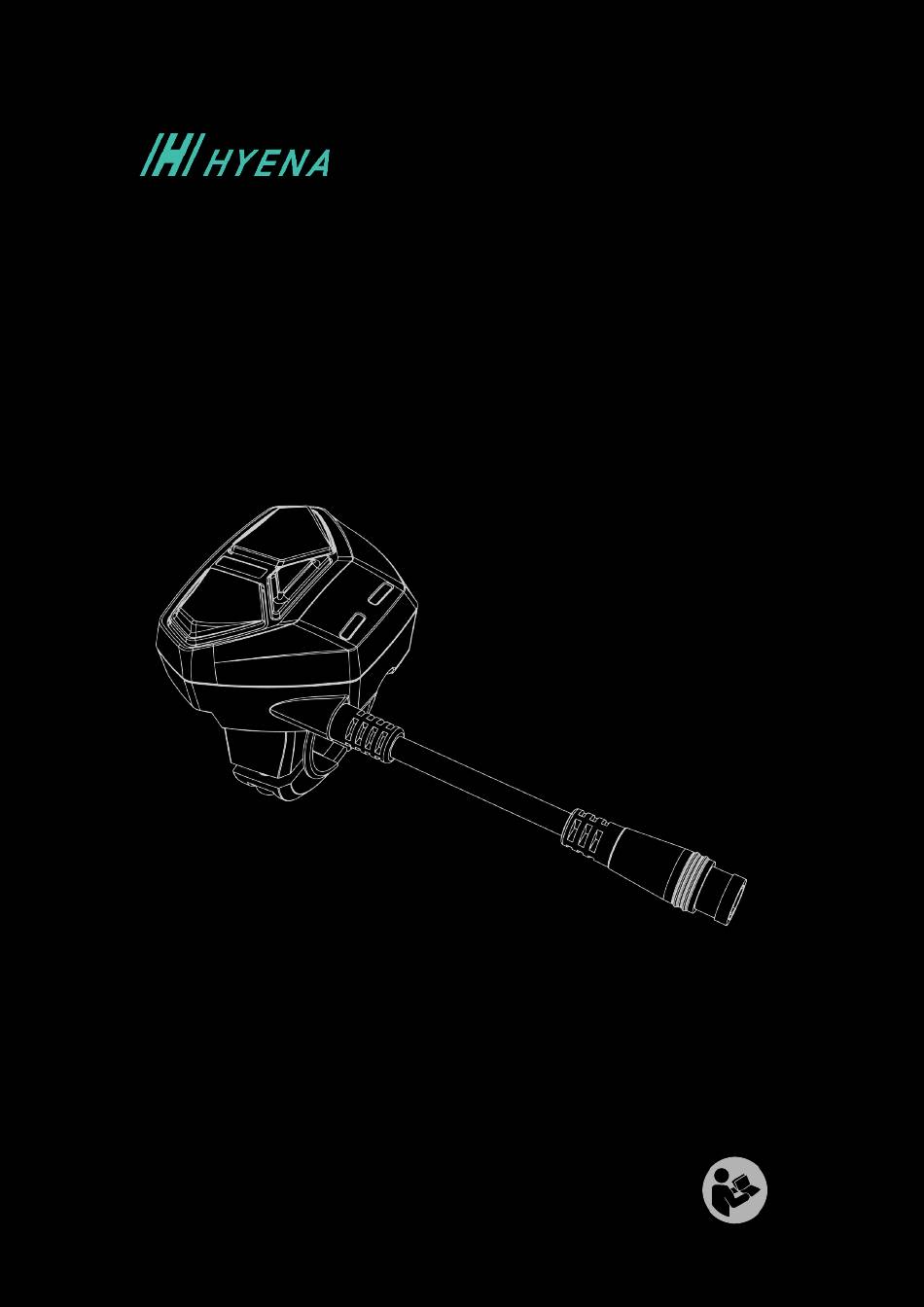

- Page 1 Product Manual LED Multi (CE-03) Original Instruction Version 221129 Copyright © 2022 HYENA INC. All Right Reserved.
-
Page 2: Table Of Contents
Table of Contents Introduction Product Features Product Description .................. 1 Parts Description ..................1 Product Dimension ................... 2 Cable Pin Definition .................. 2 Technical Data Function ....................3 Characteristic .................... 3 Mounting Parameter ................. 3 Connection....................3 LED Indicator Information ................. 4 Certification .................... -
Page 3: Introduction
Introduction This manual is intended primarily for the trained technician to install, disassemble, or maintain the Hyena e-bike system only. Please read all the safety warnings and instructions carefully. Failure to follow the warnings and instructions may result in death or severe injuries. Save this manual for future reference. -
Page 4: Product Dimension
Product Dimension unit: mm Cable Pin Definition HYENA E-BIKE SYSTEMS... -
Page 5: Technical Data Function
Left/Right handle bar Clamp diameter 22.2 mm 520 mm (40010C19B) Cable length 600 mm (40010C20B) Standard connector Hyena 6P male CM-WP408-06M Connection Support to HRA (Hyena Rider Assistant ) & Bluetooth connection Bluetooth 4.2 BLE HST (Hyena Service Tool) HYENA E-BIKE SYSTEMS... -
Page 6: Led Indicator Information
LED Indicator Information Riding support level 0 to 3 Battery status 4 segments Certification EN 15194:2017 Bluetooth RoHS 2.0 HYENA E-BIKE SYSTEMS... -
Page 7: Mounting
• Carefully install is necessary, do not strike it with any tool such as a hammer or wrenches. Insert the rubber ring. STEP Mount the HMI hook on the rubber ring STEP Fasten the hex bolt. STEP HYENA E-BIKE SYSTEMS... -
Page 8: E-System Operation
-The e-bike drive output only supports a speed below 25/45 km/h, as soon as you have reached 25/45 km/h, e-system switches off the assistance, then automatically reactivated when your speed is below 25/45 km/h. > 2 secs HYENA E-BIKE SYSTEMS... - Page 9 Red lights flash when a system error is detected. Bluetooth connection 10 seconds Blue lights flash 3 times when Bluetooth connected or disconnected. Loop Flash 3 seconds Error General Alert Mode HYENA E-BIKE SYSTEMS...
-
Page 10: Safety Instructions
Only clean the product other signs of damage. with a water-dampened soft cloth. • All the component leads shall use original Hyena • Do NOT clean the product or any e-system component components. with pressured water. - Page 11 This page is intended to be blank. HYENA E-BIKE SYSTEMS...
- Page 12 Hyena Inc. Tel: +886 4 23598810 Fax: +886 4 23598610 www.hyena-ebike.com Address: No.25, Jingke N. Rd., Nantun Dist., Taichung City 408, Taiwan (R.O.C.) HYENA E-BIKE SYSTEMS...
