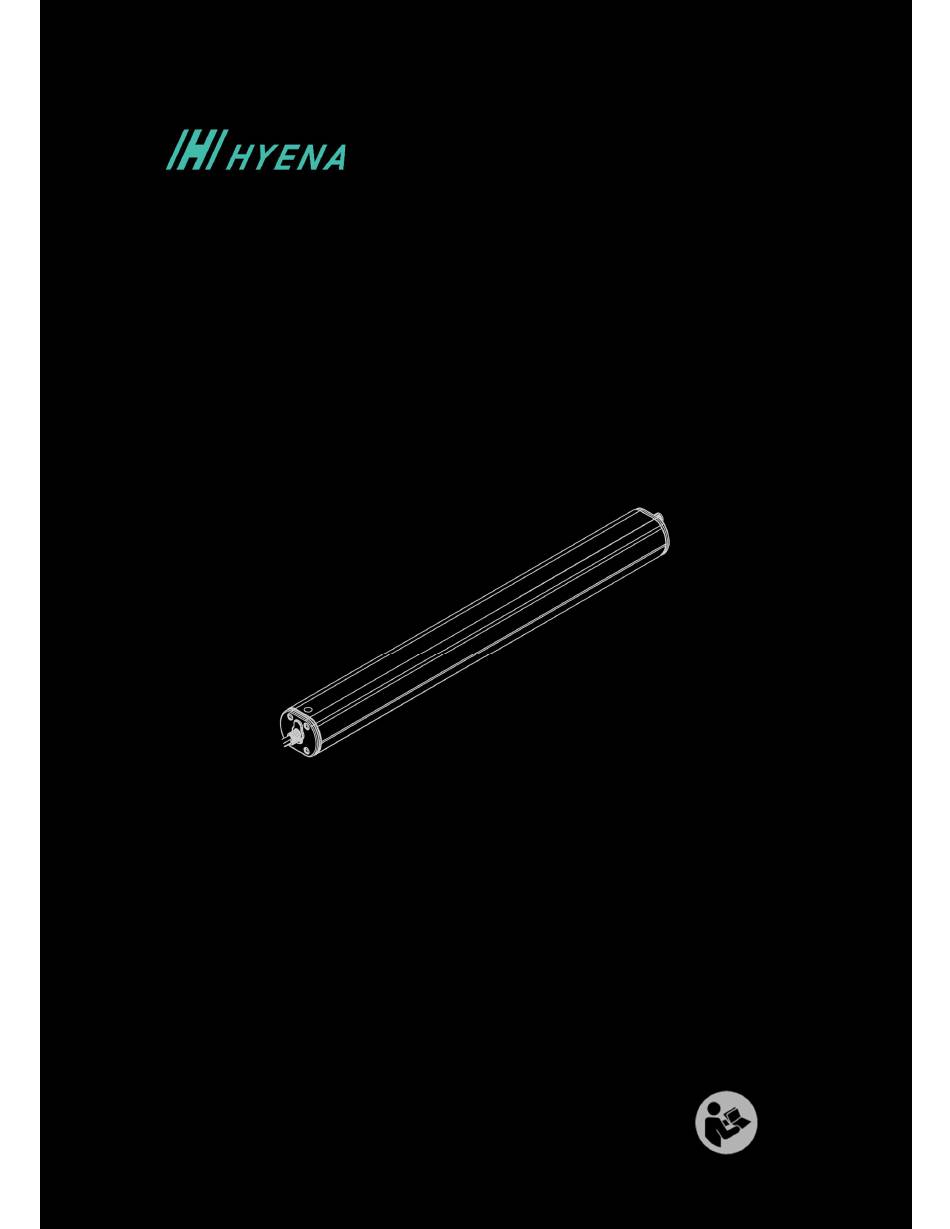

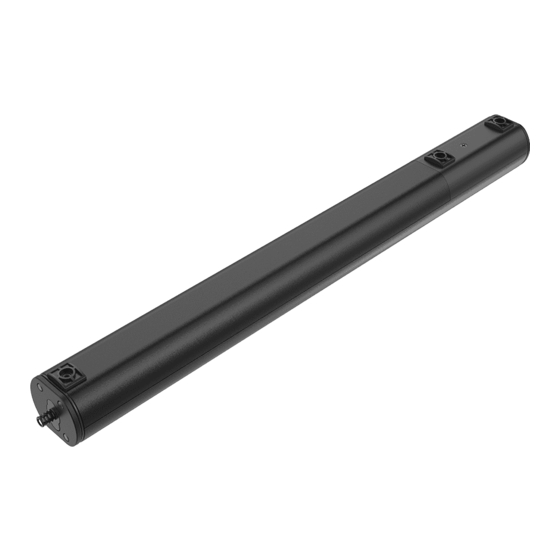

- Page 1 Product Manual BP-B250+ (with DI-A250 Controller) Original Instruction Version 231229 Copyright © 2023 HYENA INC. All Rights Reserved.
-
Page 2: Table Of Contents
Table of Contents Product Features Product Description .................. 3 Parts Description ..................3 Product Dimension ................... 4 Pin Definition ..................... 5 Technical Data: BP-B250+ Battery Technical Data: DI-A250 Controller Mounting Tool List ....................10 Accessory List ..................10 Mounting Instructions ................10 Operation (English) Operation Instructions ................ -
Page 3: Product Features Product Description
Including the front/rear light cables. Parts Description Item Description Item Description Motor connector Battery fixation spacer (optional) Torque sensor connector (6 pins) HMI connector Charging port connector Front light connector Rear light connector (2 pins) Charging socket HYENA E-BIKE SYSTEMS... -
Page 4: Product Dimension
Cable OD: Ø 4mm Cable Length: 250±10mm Cable Length: 365.5±10mm Connector: Ø 9.5mm, L34mm Charging Socket (90° L Connector) Charging Socket (Straight Connector) Cable OD: Ø 4mm Cable OD: Ø 4mm Cable Length: 200±10mm Cable Length: 100±10mm HYENA E-BIKE SYSTEMS... -
Page 5: Pin Definition
Name Direction Description Remark BAT+ Input Charge BAT- Input Ground Black Bike Present Bike Present White Wake Wake up Brown CAN H Bidirectional CAN High Green CAN L Bidirectional CAN Low Blue Output Gray Detect Detect Yellow HYENA E-BIKE SYSTEMS... - Page 6 5V motor ground d. HMI Name Direction Description Remark DEN/HMI Input Active low, used to wake up from sleep mode Input 12V HMI ground VCC+ Output 12V HMI power CAN_H Bidirectional CAN High CAN_L Bidirectional CAN Low Null Input HYENA E-BIKE SYSTEMS...
- Page 7 12V DC Power Output Rear light ground f. Front Light (2 terminals, connect to front light) Name Direction Description Remark Output Front light power RED heat-shrinking tube BLACK heat-shrinking tube Output Front light ground 12V DC Power HYENA E-BIKE SYSTEMS...
-
Page 8: Technical Data: Bp-B250+ Battery
Typical capacity 6.2Ah Capacity (Energy content) 223.2Wh Cut off voltage Charging mode CC-CV (constant voltage with limited current) Charge voltage Charge current Support 2A Hyena charger Continuous discharge current Weight (approx.) 1.5kg (3.31lb) Waterproof level IP45 Characteristic Protocol CAN 2.0... -
Page 9: Technical Data: Di-A250 Controller
Motor phase 120゜ Battery protocol Hyena Battery Protocol Parameter table Hyena Parameter 2.0 Error code table Hyena error code table Walk assistance Up to 4 km/hr Standard three modes, Maximum four Support level modes Level 1: 6A Level 2: 9.6A... -
Page 10: Mounting
• Carefully install this product is necessary; do not strike it with any tool such as a hammer or wrenches. Battery Installation STEP STEP Connect the battery and charging socket connectors. Arrange the cables into the frame and align the securing holes. STEP Tighten the four charging socket securing screws evenly. HYENA E-BIKE SYSTEMS... - Page 11 Battery Installation STEP STEP Insert the battery through the bike frame. Assemble two sets of the washer and fixation bolt as in the illustration. Hold the battery end, and fasten the bolts with torque to 1Nm. HYENA E-BIKE SYSTEMS...
-
Page 12: Operation (English) Operation Instructions
This may lead to injury or cause the bike to fall over, damaging the • All Hyena Chargers only use genuine Hyena batteries and components. battery packs, or battery packs approved for use with your... -
Page 13: Charging Instructions
Step 2: When charging is complete, unplug the charger from the wall socket, disconnect the charging plug from the battery socket, and close the charging cap. (Figure 02) HYENA E-BIKE SYSTEMS... -
Page 14: Safety Instructions
• Do NOT bundle the charger cables. other signs of damage. • Do NOT hold the battery charger by the cables when • All the product leads shall use original Hyena components. carrying it. • This product is not intended to be used at ambient •... -
Page 15: Product Label
• The e-system drive unit, including the motor, controller, battery, speed sensor, HMI, accessories, and packaging, should be disposed of in an environmentally correct manner. • Do NOT dispose of e-bikes and their components with household waste. SAVE THESE INSTRUCTIONS HYENA E-BIKE SYSTEMS... -
Page 16: Opération (Français) Instructions D'opération
• La charge est limitée aux packs de batteries au lithium Hyena endommageant ainsi ses composants. certifiés. La tension du pack de batterie doit être conforme à... -
Page 17: Instructions De Charge
également significativement affectée. Étape 2: Lorsque la charge est terminée, débranchez le chargeur de la prise murale, déconnectez la fiche de chargement de la prise de la batterie, et refermez le capuchon de chargement. (Figure HYENA E-BIKE SYSTEMS... -
Page 18: Instructions De Sécurité
électrique dans le coffre de la voiture pendant plus mêmes. d'une journée. • Tous les manuels des systèmes électriques Hyena et les • NE chargez pas ou ne déplacez pas le produit sous la pluie si documents techniques sont accessibles en ligne sur le site possible, et assurez-vous qu'il est exempt d'humidité... -
Page 19: Étiquette Du Produit
(HMI), les accessoires l'emballage, doit être éliminée de manière respectueuse de l'environnement. • NE jetez PAS les vélos électriques et leurs composants avec les déchets ménagers. CONSERVEZ CES INSTRUCTIONS HYENA E-BIKE SYSTEMS... - Page 20 Hyena Inc. Tel: +886 4 23598810 Fax: +886 4 23598610 www.hyena-ebike.com Address: No.25, Jingke N. Rd., Nantun Dist., Taichung City 408, Taiwan (R.O.C.) HYENA E-BIKE SYSTEMS...
