- Page 1 This guideline is applicable for the Hyena e-bike system only LED Chip Product Manual Copyright © 2020 HYENA INC. All Right Reserved. Version 1.0 This manual is intended primarily for the trained technician to install, disassemble, or maintain the e-bike.
-
Page 2: Table Of Contents
Content Product features Product Description Parts Description Product Dimension Cable Pin Definition Technical Data Function Characteristic Mounting Parameter Connection LED Indicator Information Certification Mounting Tool List Accessory List Mounting Instructions e-System Operation Operation Instructions Safety Instructions Important Notice Moving and Storage Instructions Maintenance Disposal... -
Page 3: Product Features

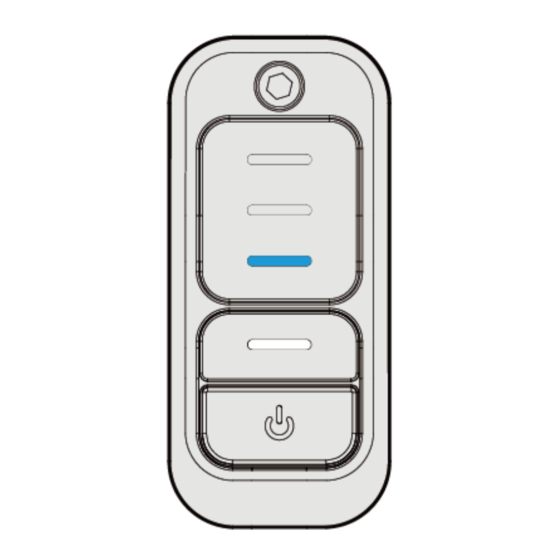

Product features Product Description The Hyena LED Chip HMI features compact size, single button, multi-color LED indicators, designed to mount into the bike frame to keep the bike elegant outlook. Supports app and service tool connection via Bluetooth. Parts Description Fastening screw Power &... -
Page 4: Product Dimension
Product Dimension A. OD：Ø 4 mm Length：55±5 mm Cable Pin Definition HYENA E-BIKE SYSTEMS... -
Page 5: Technical Data
Cable length 55±5 mm Standard connector Hyena 6P male CM-WP408-06M Connection Bluetooth connection Bluetooth 4.2 Support to HRA (Hyena Rider Assistant ) & HST (Hyena Service Tool) LED Indicator Information Motor support level Battery status 3 segments Certification EN15194:2017 Bluetooth RoHS 2.0... -
Page 6: Mounting
Step 3: Fasten the screw. Step 4: Completed. • NOTE - The bike image and mounting position seen in the manual may be different from the actual bike, but will be enough to help you understand related instructions. HYENA E-BIKE SYSTEMS... -
Page 7: E-System Operation
Short press the power button to turn on, long press the power button to turn off. When system on, the indicator shows the battery status. Note -Always switch off the e-Bike system when parking the e-Bike or before removing the battery. HYENA E-BIKE SYSTEMS... - Page 8 -The system is activated as soon as you start pedaling. -The e-Bike drive output only supports a speed below 25/45 km/h, as soon as you have reached 25/45 km/h, e-system switches off the assistance, then automatically reactivated when your speed is below 25/45 km/h. HYENA E-BIKE SYSTEMS...
- Page 9 Error alert Service tool connection The bottom light flashes red when a system error is When maintaining or diagnose your e-bike via Hyena detected. Service Tool, follow the software instruction, double click the power button in 0.5 seconds, to connect your e-bike to the computer.
-
Page 10: Safety Instructions
• WARNING - When using the LED Chip HMI, basic • Do not load or move the product in the rain whenever precautions should always be followed, including the possible, and make sure it has no moisture or mildew following: before loading it.
