Mechanical installation
2
Assembly
Addendum to the Operating Instructions – MOVIMOT® with AS-Interface and AC Motor DT/DV – Unit
12

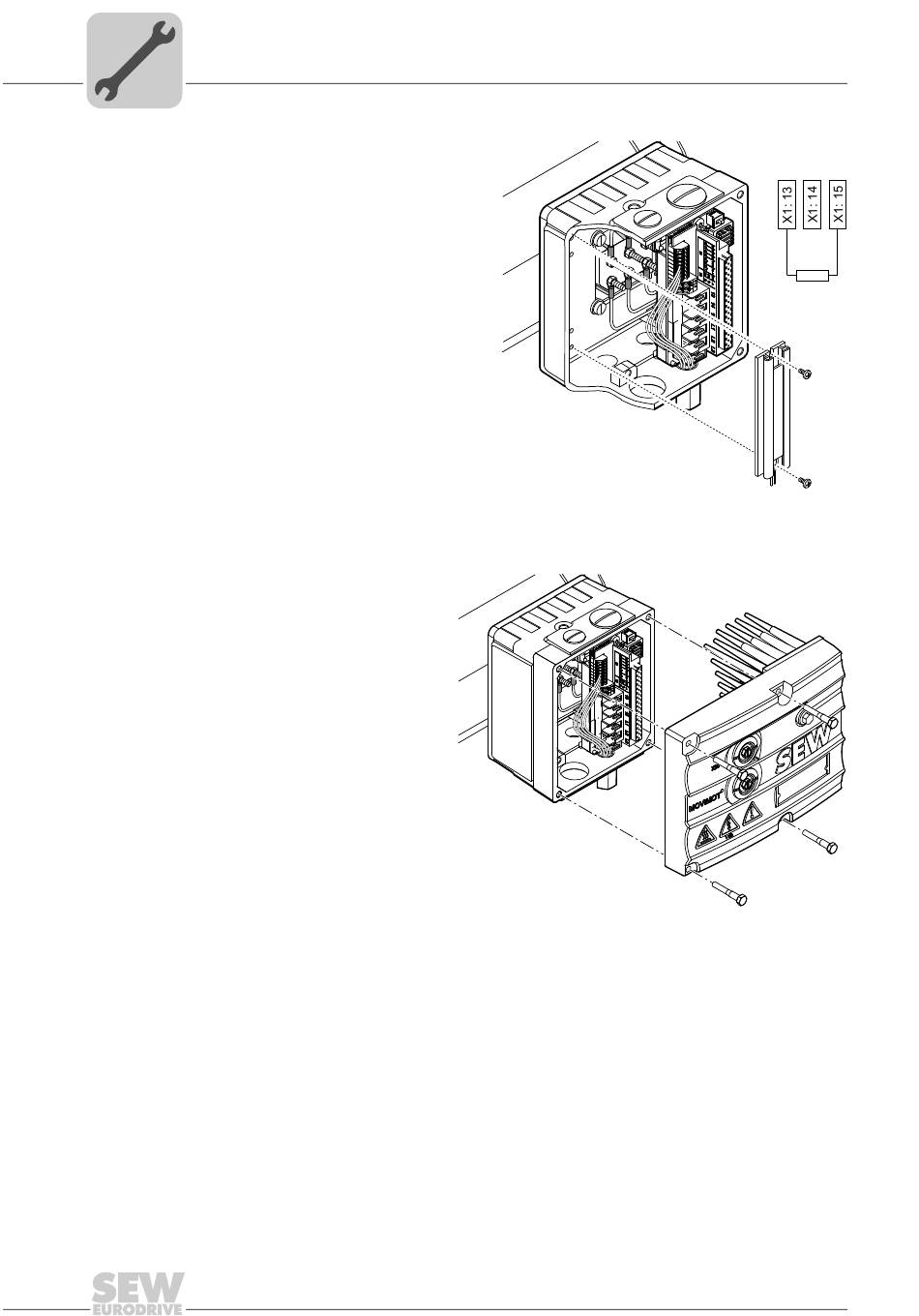

7. Only for motors without a
brake:
Install the BW.. braking resistor in
the terminal box using 2 screws.
(tightening torque 1.4 – 1.6 Nm /
12 – 14 lb.in)
Connect the BW.. braking resistor
to terminals X1:13 and X1:15.
(tightening torque of the terminals
0.8 – 1.1 Nm / 7– 10 lb.in)
Terminal X1:14 must remain free.
8. Set all control elements (potentiometer, switch, and DIP switch) of the new inverter
according to the settings specified in chapter "Control element settings".
9. Place the MOVIMOT
verter onto the connection
box and secure it using 4
screws.
(tightening torque 3.0 Nm /
27 lb.in)
®
in-
Replacement MOVIMOT® MM..C -> MM..D
BW1 / BW2
5828035979
5828129803
