Drive Technology \ Drive Automation \ System Integration \ Services
Addendum to the
Operating Instructions

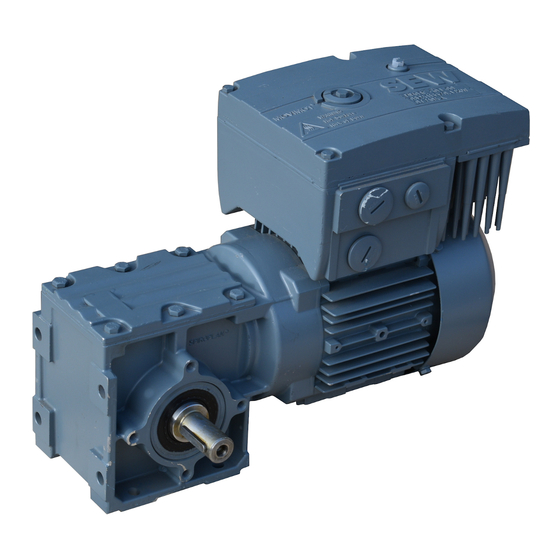

MOVIMOT
Retrofit Set for AC Motors DRS/DRE/DRP
Edition 02/2010
®
MM..D
SEW-EURODRIVE GmbH & Co KG
P.O. Box 3023
D-76642 Bruchsal/Germany
Phone +49 7251 75-0
Fax +49 7251 75-1970
sew@sew-eurodrive.com
www.sew-eurodrive.com
16742419 / EN
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SEW-Eurodrive Movimot Series
Summary of Contents for SEW-Eurodrive Movimot Series
- Page 1 Drive Technology \ Drive Automation \ System Integration \ Services SEW-EURODRIVE GmbH & Co KG Addendum to the P.O. Box 3023 D-76642 Bruchsal/Germany Phone +49 7251 75-0 Operating Instructions Fax +49 7251 75-1970 sew@sew-eurodrive.com www.sew-eurodrive.com ® MOVIMOT MM..D Retrofit Set for AC Motors DRS/DRE/DRP Edition 02/2010 16742419 / EN...
-
Page 2: General Information
General Information Structure of the safety notes General Information MOVIMOT® MM..D Retrofit Set for AC Motor Series DRS/DRE/DRP Structure of the safety notes Pictogram Signal word Meaning Consequences if disregarded Example: DANGER Imminent danger Severe or fatal injuries WARNING Possible dangerous situation Severe or fatal injuries General danger CAUTION... -
Page 3: Other Applicable Documentation
General Information Other applicable documentation Other applicable documentation • This additional information does not replace the detailed operating instructions. • Only electrical specialists are allowed to perform installation and startup observing ® applicable accident prevention regulations and the "MOVIMOT MM..D with AC Motors DRS/DRE/DRP"... - Page 4 General Information Available retrofit sets 1.5.2 Retrofit sets for DRE motors 1400 rpm ® ® Power [kW] Motor + MOVIMOT retrofit set = MOVIMOT drive 0.75 DRE80M4 MM07D, , DRE DRE80M4/.../MM07D DRE90M4 MM11D, , DRE DRE90M4/.../MM11D DRE90L4 MM15D, , DRE DRE90L4/.../MM15D DRE100M4 MM22D,...
-
Page 5: Mechanical Installation
Mechanical Installation Scope of delivery of the retrofit set Mechanical Installation Scope of delivery of the retrofit set ® Check the scope of delivery of the MOVIMOT MM03D – MM40D retrofit set for completeness using the following figure. 783979147 Terminal box gasket PE screw Drive-ID module Connection box... - Page 6 Mechanical Installation Assembly 9007200042336011 2. If present, disconnect the brake control cables [1] and [2]. 3. Remove the nuts [4] and jumpers [3]. 9007200042421003 4. Unscrew the lower part of the terminal box [5]. 5. Remove the gasket [6]. 6. Clean the sealing surface [7]. 7.
- Page 7 Mechanical Installation Assembly 8. Place the connection box [B] onto the motor and secure it using 4 screws [C]. (Tightening torque 3.1 – 5.3 Nm / 29 – 47 lb.in) Check that gasket fitted correctly. The recess for the terminal board underside connection terminal must point toward...
- Page 8 Mechanical Installation Assembly 12.Only for brakemotors: Connect the connection cables of the BE.. brake as follows: • Red to terminal X1:13 • White to terminal X1:14 • Blue to terminal X1:15 (Tightening torque of the terminals 0.8 – 1.1 Nm / 7– 10 lb.in) 9007200043226123 13.Only for motors without a brake: Install the BW..
