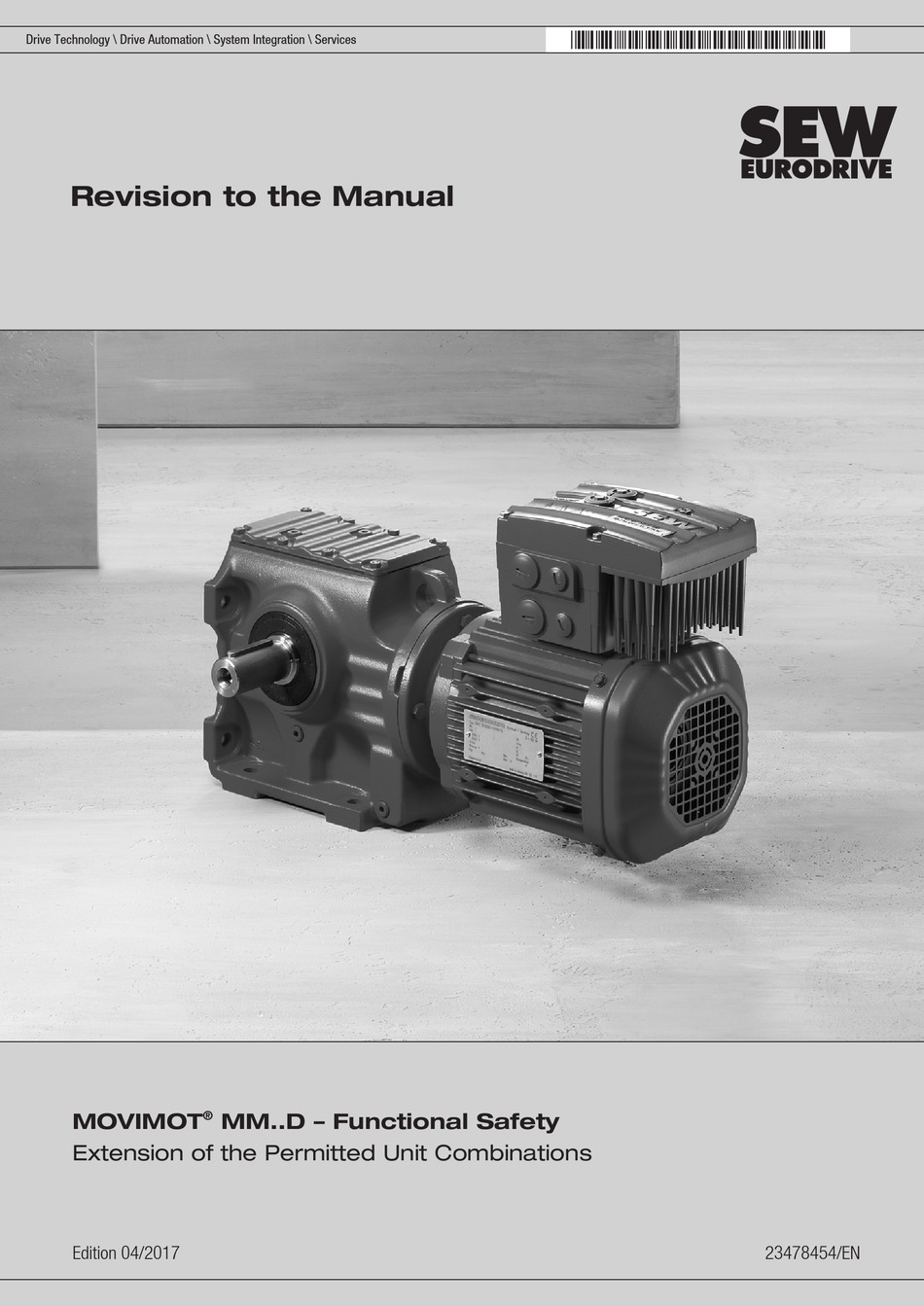

*23478454_0417*
Drive Technology \ Drive Automation \ System Integration \ Services
Revision to the Manual
®
MOVIMOT
MM..D – Functional Safety
Extension of the Permitted Unit Combinations
Edition 04/2017
23478454/EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOVIMOT MM D Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEW-Eurodrive MOVIMOT MM D Series

Summary of Contents for SEW-Eurodrive MOVIMOT MM D Series

  • Page 1 *23478454_0417* Drive Technology \ Drive Automation \ System Integration \ Services Revision to the Manual ® MOVIMOT MM..D – Functional Safety Extension of the Permitted Unit Combinations Edition 04/2017 23478454/EN...
  • Page 2 SEW-EURODRIVE—Driving the world...
  • Page 3 Supplement Other applicable publications Supplement INFORMATION ® This revision contains additional information for the "MOVIMOT MM..D – Functional Safety" manual. Please use the data specified in this revision. This document does not replace the detailed manual. Other applicable publications ® This document supplements the "MOVIMOT MM..D ..."...

  • Page 4: Safety Conditions

    Safety conditions Permitted unit combinations Safety conditions Permitted unit combinations ® Only MOVIMOT drives marked with the FS logo for functional safety on the name- plate may be used in safety applications. ® Only the following combinations with MOVIMOT MM..D are permitted for safety-relev- ant applications: ®...
  • Page 5 Safety conditions Permitted unit combinations 2.1.1 MFZ.6. ® MOVIMOT and M.Z.6. field distributor (connection via prefabricated cable). The following combinations are permitted: MQ.. Fieldbus interface MF.. MFI21A, 22A, 32A only permitted with Z16F MFI23F, 33F MQI21A, 22A, 32A MFP21D, 22D, 22L, 32D only permitted with Z26F, Z26J MFP22H, 32H MQP21D, 22D, 32D...
  • Page 6 Safety conditions Permitted unit combinations 2.1.2 MFZ.7. ® MOVIMOT frequency inverter integrated in the M.Z.7. field distributor (connection of the AC motor via prefabricated cable). The following combinations are permitted: MQ.. Fieldbus interface MF.. MFI21A, 22A, 32A only permitted with Z17F MFI23F, 33F MQI21A, 22A, 32A MFP21D, 22D, 22L, 32D...
  • Page 7 Safety conditions Permitted unit combinations 2.1.3 MFZ.8. ® MOVIMOT frequency inverter integrated in the M.Z.8. field distributor (Connection of the AC motor via prefabricated cable). The following combinations are permitted: MQ.. Fieldbus interface MF.. MFI21A, 22A, 32A only permitted with Z18F, Z18J, Z18N MFI23F, 33F MQI21A, 22A, 32A...
  • Page 8 Safety conditions Permitted unit combinations 2.1.4 MFZ.9. ® MOVIMOT frequency inverter integrated in the M.Z.9. field distributor (connection of the AC motor via prefabricated cables). The following combinations are permitted: MF.. Fieldbus interface MFE52B, 52G, 52M only permitted with Z29F, Z29N, Z29J ®...

  • Page 9: Installation Requirements

    Safety conditions Installation requirements Installation requirements • Use only hybrid cables from SEW‑EURODRIVE to connect the M.Z.6. field distrib- ® utor to the MOVIMOT drive. ® • To connect the M.Z.7., M.Z.8., M.Z.9 field distributors or MOVIFIT MC to the mo- tor, SEW‑EURODRIVE recommends using the specifically designed prefabricated hybrid cables by SEW‑EURODRIVE.
  • Page 10 Safety conditions Installation requirements ® • For all 24 V supply voltages of the MOVIMOT inverter, the field distributor and all stations of the fieldbus, only voltage sources with safe disconnection (SELV/PELV) according to EN 60204‑1 and EN 61131‑2 are permitted. In case of a single fault, the voltage between the outputs or between any output and grounded parts may not exceed DC voltage 60 V.
  • Page 11 Safety conditions Installation requirements – Use safety-related 24 V supply voltages. – Ensure a protected routing of the connected cables. • Install the field distributor in a way that at least the IP 54 degree of protection is en- sured. Do not make any changes to the field distributor that diminish the degree of protection.

  • Page 12: Connection Variants

    Connection variants MOVIMOT® with AS-Interface option MLK32A Connection variants MOVIMOT® with AS- Interface option MLK32A ® MOVIMOT with AS-Interface option MLK32A 3.1.1 General structure ® MOVIMOT with AS-Interface (control via AS-Interface) Inverter mounted to the motor Mounting close to the motor + 24 V + 24 V Safety Power...
  • Page 13 Connection variants MOVIMOT® with AS-Interface option MLK32A 3.1.2 Connection hybrid cable (motor cable) for installation close to the motor The following figure shows the core assignment of the hybrid cable and the associated ® terminals of the MOVIMOT connection box and the DR.. motor: BK/2 BK/1 BK/U1...
  • Page 14 Connection variants MOVIMOT® with AS-Interface option MLK32A 3.1.3 Group disconnection ® For notes on determining the number "n" of MOVIMOT units for group disconnection, see chapter 24 V power supply for group disconnection. + 24 V Safety Power 1 ... n 3 x 400 V + PE AS-Interface...
  • Page 15 Connection variants MOVIMOT® with MF../MM../Z.9. field distributor MOVIMOT® with MF../ MM../Z.9. field distributor ® MOVIMOT with MF../MM../Z.9. field distributor 3.2.1 General structure ® MOVIMOT drive with MF../MM../Z.9. field distributor: The drives are connected using prefabricated hybrid cables. peater MF../ MM../ Z.9. DR..
  • Page 16 Connection variants MOVIMOT® with MF../MM../Z.9. field distributor 3.2.2 Field distributor connection The following figure shows the connection of the MF../MM../Z.9. field distributor: + 24 V 3 x 400 V + PE MFZ.9F MF../MQ.. RS485 ® ® ® MOVIMOT 1 MOVIMOT 2 MOVIMOT 3 X4_1 [5] X4_2 [5]...
  • Page 17 Connection variants MOVIMOT® with MF../MM../Z.9. field distributor ® 3.2.3 Enabling the direction of rotation on the MOVIMOT inverter Make sure that "24V" and "⊥" are connected correctly and verify this with a test! Both directions of Only CCW direction of Only CW direction of rotation is en- rotation are enabled rotation is enabled...
  • Page 20 SEW-EURODRIVE—Driving the world SEW-EURODRIVE GmbH & Co KG P.O. Box 3023 76642 BRUCHSAL GERMANY Phone +49 7251 75-0 Fax +49 7251 75-1970 sew@sew-eurodrive.com www.sew-eurodrive.com...
