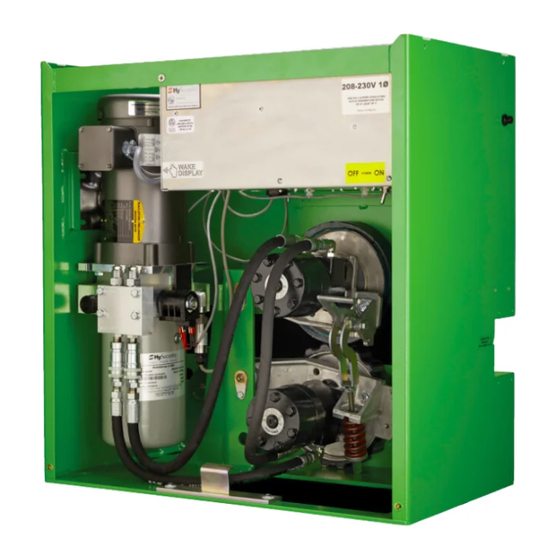

- Page 1 SlideDriver ™ SlideDriver II 15 SlideDriver II 40 SlideDriver II 50F SlideDriver II 80V SlideDriver II 200V Slide gate operator EN - Quick start guide...
-
Page 2: Table Of Contents
(XtremeDrive only) Rack kit Install and Secure Limits ..... 13-15 For Installation manuals, replacement part instructions, part diagrams and more visit support.hysecurity.com. Connect to The Smart Installer App ...16 The Digital Installation Manual is available in digital form Operator Configurations ...... 17-18 at the link above and physical copies from distributors. -
Page 3: Prepare An Installation Site
PREPARE AN INSTALLATION SITE Minimum conduit required No. Min. Size Addt’l conduit may be needed for: Min. Size AC Main power (incoming) 1 in (25 mm) DC cables 2 in (50 mm) Low voltage accessory wires 3/4 in (20 mm) Hydraulic hoses 2 in (50 mm) Ground... - Page 4 Minimum Conduit runs below ground clearance for between the two units. cover removal: 20 in (0.5 m) OPERATOR AND GATE HANDING OPEN OPEN Left hand Right hand gate gate Drawings NOT to Scale support.hysecurity.com...
- Page 5 PREPARE AN INSTALLATION SITE MARK THE ANCHOR BOLT LOCATIONS After you remove the operator, cut out the anchor bolt template on the side of the SlideDriver II box. Gate Use the template to mark the location of the anchor bolts that will secure the Side -Puerta SlideDriver II to the concrete pad.
- Page 6 SCREWS (x2) SELF-TAPPING OR TEK SCREWS (x7) WIRE HARNESS END TO EDGE SENSOR HEAT SHRINK BUTT SPLICES (x2) CONDUIT* WIRE HARNESS END TO SMARTTOUCH CONTROLLER JUNCTION BOX* EDGE SENSOR CHANNEL EDGE SENSOR EDGE SENSOR RESTS ON BOTTOM SCREW JUNCTION BOX* support.hysecurity.com...
-
Page 7: Install The Operator
INSTALL THE OPERATOR INSTALL THE CHASSIS HYDRAULIC HOSE SWAP WARNING Obtain help before lifting or moving the operator. SlideDriver II models can weigh over 260 lbs (118 kg). Failure to comply may result in serious injury to personnel, damage to the equipment, or both. 1. - Page 8 Article 250 requires a separate earth ground in addition to the required equipment ground. Ga. 6 minimum. The gate operator must be grounded per NEC, NFPA 780 and local building standards and codes. SlideDriver II chassis Control box 3 ft (0.9 m) Grade level Consult local codes for proper depth Earth ground support.hysecurity.com...
-
Page 9: Wiring Ac Power
WIRING AC POWER DANGER WARNING Turn off AC power at the source (circuit breaker panel) Each gate operator is built to run on a specific line before accessing the wires in the gate operator. power voltage and phase. Failure to ensure that Follow facility Lock Out/Tag Out procedures. -
Page 10: Assemble, Align, And Install Drive Rail
7. Drill holes through the vertical drive rail flange and install U bolts along the upright support structure, as needed. HySecurity recommends that you attach a minimum of 3 supports per length of drive rail. Keep drive rail spans straight and level. Distance between attachment points should be less than 10 ft (3 m). - Page 11 ASSEMBLE, ALIGN, AND INSTALL DRIVE RAIL Standard grooved drive rail Figure 2. Assemble Drive Rail Clamped Handle Use wire to secure the Position toggle handle so the clamp remains open and the drive wheel does not fall closed. When clamped on the drive Unclamped rail, the red spring should be compressed to a height of...
- Page 12 AD: AdvanceDrive Advanced Drive 9¼ in to 93/4 XD: XtremeDrive in (230 mm to 250 mm) XtremeDrive 9½ in to 10 in (240 mm to 255 mm) CONCRETE PAD Figure 6. Set Drive Rail Depth and Height support.hysecurity.com...
-
Page 13: Install And Secure Limits
INSTALL AND SECURE LIMITS CAUTION NOTICE Make sure power is disconnected and power switch Limit Flag Handing (All SlideDriver II Models) is set to OFF while installing the limit flags and limit When facing the operator from the secure side of the sensor. - Page 14 Figure 8. Mark Dual Limit Sensor Location on Drive Rail First hole Mark Operator 3 in (76 mm) BLACK (LEFT) Slow down limit flag (SD50F only) Centered in limit track Figure 9. Drill First Limit Flag Hole (Left Limit) support.hysecurity.com...
- Page 15 Controller. are clamped on 7. Set operator power to OFF, move gate to open HySecurity drive rail. position, and clamp the toggle handle. 8. Set operator power to ON. Figure 13. Toggle Handle Assembly Note: For SlideDriver II models with brake valves, make sure that the brake valves are adjusted properly to ensure that the gate stops smoothly at the limits.
-
Page 16: Connect To The Smart Installer App
9. Press the UP or DOWN arrow to select 1 (ON) and press SELECT. Figure 15. Bluetooth Switch 10. Press the UP or DOWN arrow to show HYSECURITY GATE PIN and GATE NAME. Record the PIN and GATE NAME. HYSECURITY H.6.06... -
Page 17: Operator Configurations
OPERATOR CONFIGURATIONS SlideDriver II 15, 40 (OT 1) SlideDriver II 50F, 80V, 200V (OT 7) OPERATOR OPERATOR CONFIGURATIONS CONFIGURATIONS † † USAGE CLASS 0 (GATE DISABLED) USAGE CLASS 0 (GATE DISABLED) 1 (RESIDENTIAL) 3 (INDUSTRIAL) 4 (HIGH-SECURITY) 2 (PUBLIC) 3 (INDUSTRIAL) 4 (HIGH-SECURITY) †... - Page 18 Factory set. Used only if replacing the SmartTouch 720/725 Controller. OT7 = VFD SLIDEDRIVER II OT12 = SWINGSMART CNX OT15 = SLIDESMART CNX 0 0 0 0 MENU PIN Allows installer to set a 4-digit security pin to restrict access to SmartTouch 720/725 Controller menus. support.hysecurity.com...
-
Page 19: Controller Inputs
CONTROLLER INPUTS SmartTouch 720/725 Controller Input Examples Only Hy5B Vehicle Detectors Radio Receiver Photo Eye Radio Photo eyes may be connected to SENSOR 1 & 2 and INPUT 1 & 2. Edge Sensor Photo Eye NICE BlueBUS Photo Eyes Wake Display MX5384 Rev. - Page 20 Nice North America | HySecurity Gate & Barrier Division 6705 S 209th St, Ste 101 hysecurity.com Kent, WA 98032...
