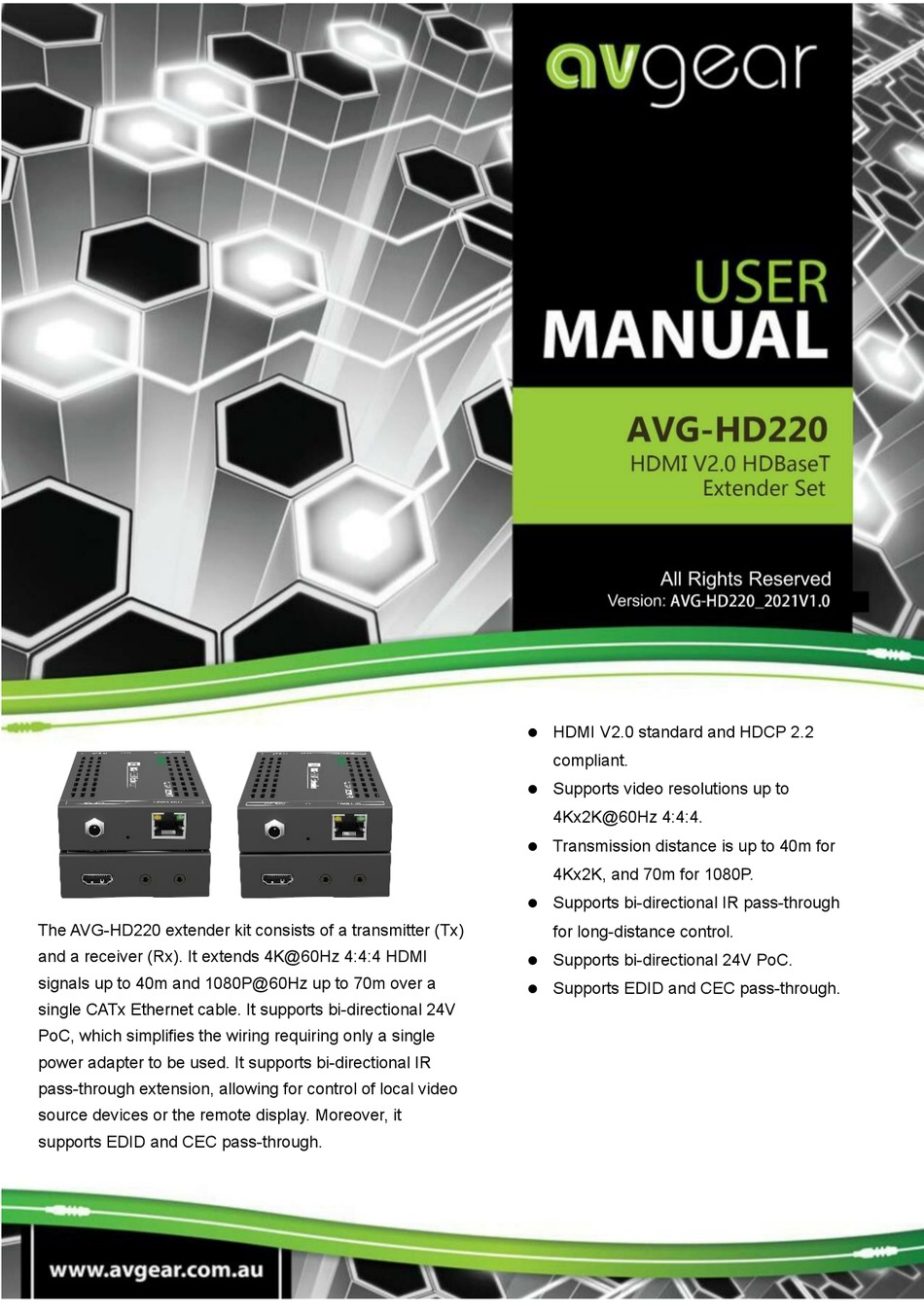

The AVG-HD220 extender kit consists of a transmitter (Tx)
and a receiver (Rx). It extends 4K@60Hz 4:4:4 HDMI
signals up to 40m and 1080P@60Hz up to 70m over a
single CATx Ethernet cable. It supports bi-directional 24V
PoC, which simplifies the wiring requiring only a single
power adapter to be used. It supports bi-directional IR
pass-through extension, allowing for control of local video
source devices or the remote display. Moreover, it
supports EDID and CEC pass-through.
HDMI V2.0 standard and HDCP 2.2
⚫
compliant.
Supports video resolutions up to
⚫
4Kx2K@60Hz 4:4:4.
Transmission distance is up to 40m for
⚫
4Kx2K, and 70m for 1080P.
Supports bi-directional IR pass-through
⚫
for long-distance control.
Supports bi-directional 24V PoC.
⚫
Supports EDID and CEC pass-through.
⚫
Advertisement
Related Manuals for AVGear AVG-HD220
Summary of Contents for AVGear AVG-HD220
- Page 1 Transmission distance is up to 40m for ⚫ 4Kx2K, and 70m for 1080P. Supports bi-directional IR pass-through ⚫ The AVG-HD220 extender kit consists of a transmitter (Tx) for long-distance control. and a receiver (Rx). It extends 4K@60Hz 4:4:4 HDMI Supports bi-directional 24V PoC. ⚫...
- Page 2 AVG-HD220 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. SAFETY OPERATION GUIDE This manual is only for operational instruction only, and not to be used for maintenance. The functions described in this version are current as at June 2021. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 AVG-HD220 SAFETY OPERATION GUIDE TABLE OF CONTENTS Product Introductions……………………………………………………………………….1 To guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: What’s in the Box……………………………………………………………………………2 The system must be earthed properly. Please do not use two blade plugs and ensure the alternating power supply ranges from 100v to 240v and from 50Hz Unit Description………………………………………………………………………………...
- Page 4 AVG-HD220 TABLE OF CONTENTS Product Introduction……………………………………………………………………….1 What’s in the Box……………………………………………………………………………2 Unit Description……………………………………………………………………………… 3 Transmitter………………………………………………………………………..3.1 Receiver…………………………………………………………………………..3.2 System Connection………………………………………………………………………….4 Specifications………………………………………….………………………..……………. 5...
- Page 5 AVG-HD220 Introduction Thanks for choosing the AVG-HD220 extender kit which consists of a transmitter (Tx) and a receiver (Rx). It allows extension of a 4K@60Hz 4:4:4 HDMI signal to a distance of up to 40m and a 1080P@60Hz signal up to 70m over a single CATx Ethernet cable. It supports bi-directional 24V Power over Cable (PoC), which simplifies the wiring to require only a single power adapter to power both ends.
- Page 6 AVG-HD220 Unit Description Transmitter Panel Description HDMI IN IR IN IR OUT DC 24V HDBT OUT Name Description ① HDMI IN Type-A HDMI port to connect the source device (e.g. Blu-ray DVD). IR IN 3.5mm jack to connect an IR receiver (not included).
- Page 7 AVG-HD220 Receiver Panel Description HDMI OUT IR IN IR OUT DC 24V HDBT IN Name Description ① HDMI OUT Type-A HDMI port to connect an HDMI display. IR IN 3.5mm jack to connect an IR receiver (not included). ② IR OUT 3.5mm jack to connect an IR emitter (not included).
- Page 8 AVG-HD220 System Connection Note: This picture is for reference only.
- Page 9 AVG-HD220 Specifications Transmitter (Tx) Input (1) HDMI Input Connector (1) Female type-A HDMI Output (1) HDBT Output Connector (1) RJ45 Control (1) IR IN, (1) IR OUT Control Connector (2) 3.5mm mini jacks Receiver (Rx) Input (1) HDBT Input Connector...
