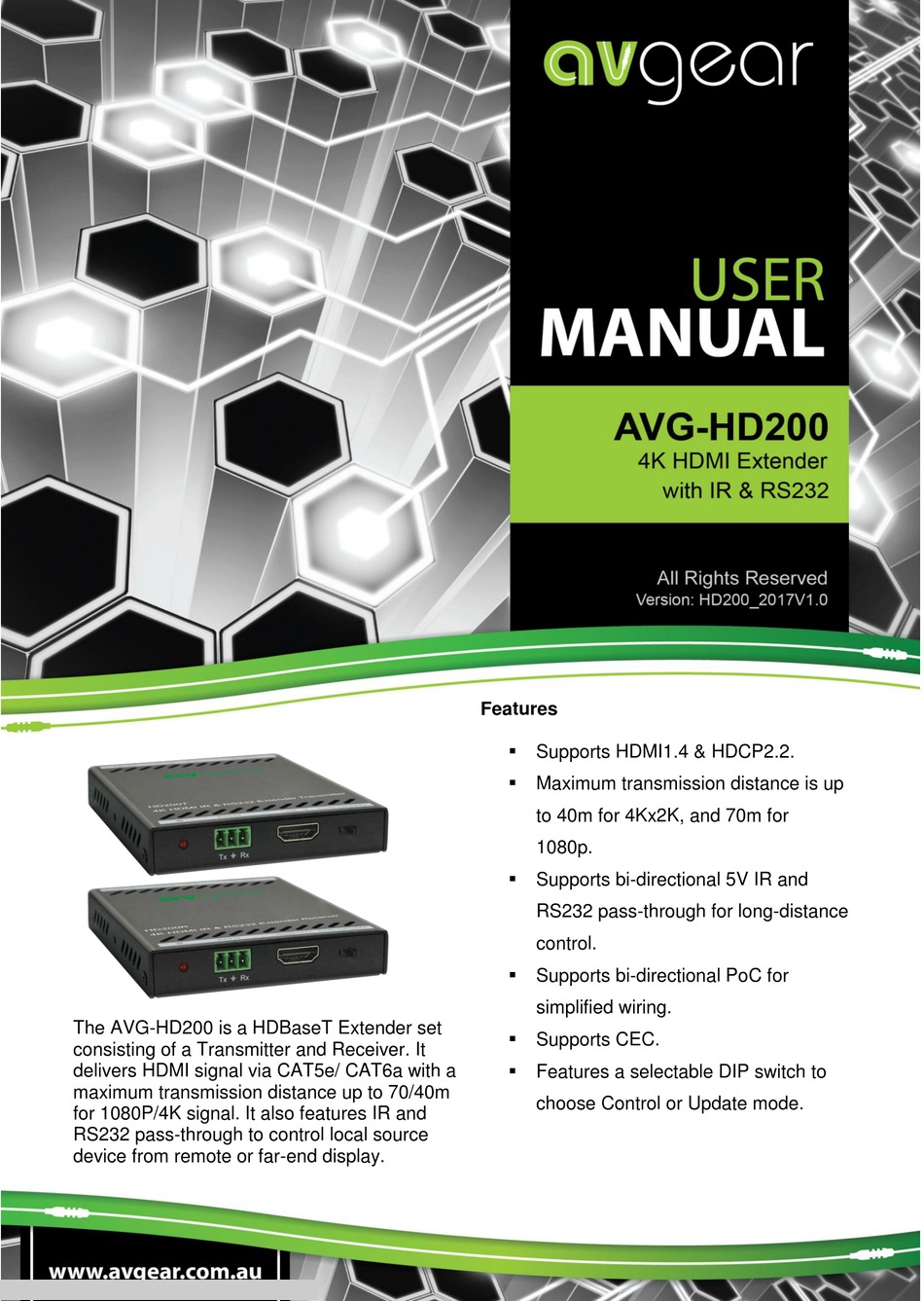

AVG-HD200
The AVG-HD200 is a HDBaseT Extender set
consisting of a Transmitter and Receiver. It
delivers HDMI signal via CAT5e/ CAT6a with a
maximum transmission distance up to 70/40m
for 1080P/4K signal. It also features IR and
RS232 pass-through to control local source
device from remote or far-end display.
Features
 Supports HDMI1.4 & HDCP2.2.
 Maximum transmission distance is up
to 40m for 4Kx2K, and 70m for
1080p.
 Supports bi-directional 5V IR and
RS232 pass-through for long-distance
control.
 Supports bi-directional PoC for
simplified wiring.
 Supports CEC.
 Features a selectable DIP switch to
choose Control or Update mode.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-HD200 SETAVG-HD200R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVGear AVG-HD200 SETAVG-HD200R

Summary of Contents for AVGear AVG-HD200 SETAVG-HD200R

  • Page 1 AVG-HD200 Features  Supports HDMI1.4 & HDCP2.2.  Maximum transmission distance is up to 40m for 4Kx2K, and 70m for 1080p.  Supports bi-directional 5V IR and RS232 pass-through for long-distance control.  Supports bi-directional PoC for simplified wiring. The AVG-HD200 is a HDBaseT Extender set ...
  • Page 2 AVG-HD200 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at September 2017. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-HD200 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures during installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    AVG-HD200 TABLE OF CONTENTS Introduction ......................1 Introduction to the AVG-HD200 ..............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-HD200 ..............3 Transmitter ....................3.1 Receiver ......................3.2 System Connection ....................4 System Applications ..................4.1 Usage Precautions ..................

  • Page 5: Introduction

    AVG-HD200 1. Introduction 1.1. Introduction to the AVG-HD200 The AVG-HD200 is a HDBaseT Extender set consisting of a Transmitter and Receiver. HDMI signal is input into the transmitter and HDBaseT technology is used to transmit a high-resolution 1080p / 4K signal to the receiver up to 70 / 40m via a Cat5e / Cat6A cable.

  • Page 6: Product Appearance Of The Avg-Hd200

    AVG-HD200 3. Product Appearance of the AVG-HD200 3.1. Transmitter Front Rear HDCP LINK Name Description ① Power LED Illuminates red when power is applied. ② RS232 Phoenix plug to connect a RS232 device. ③ HDMI IN HDMI port to connect your video source (e.g. Blu-ray DVD) Switch to determine the behavior of the RS232 port.

  • Page 7: Transmitter

    AVG-HD200 3.2. Receiver Front Rear HDCP LINK Name Description ① Power LED Illuminates red when power is applied. ② RS232 Phoenix plug to connect a RS232 device. ③ HDMI OUT HDMI port to connect the video display. Switch to determine the behavior of the RS232 port. When in the CTRL position, it serves as an RS232 serial extender.

  • Page 8: System Connection

    AVG-HD200 4. System Connection 4.1. System Applications Robust performance for control and signal transmission makes the AVG-HD200 ideal in the custom installation industry, IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc. 4.2.

  • Page 9: Connection Procedure

    AVG-HD200 4.4. Connection Procedure Step 1. Connect a HDMI source (such as Blu-ray DVD) to HDMI IN port of the transmitter with a HDMI cable. Step 2. Connect the HDBT OUT port of the transmitter to HDBT IN port of the receiver through a straight-thru CAT5e/CAT6a cable.

  • Page 10: Specification

    AVG-HD200 5. Specification Model Transmitter (TX) Receiver (RX) Spec Input HDMI IN HDBT IN Output HDBT OUT HDMI OUT Control IR IN, IR OUT, RS232 IR IN, IR OUT, RS232 General Maximum Video 4K×2K@60Hz 4:2:0, including 1080p@60Hz Resolution Transmission Mode HDBaseT Transmission Distance 1080p signal to 70m, 4K signal to 40m Bandwidth...

  • Page 11: Panel Drawing

    AVG-HD200 6. Panel Drawing HDCP LINK RS232 CTRL FW HDMI IN 84 mm Transmitter HDCP LINK RS232 HDMI OUT CTRL FW 84 mm Receiver...

  • Page 12: Troubleshooting & Maintenance

    AVG-HD200 7. Troubleshooting & Maintenance No image on the display:  Ensure that the display device has been set to the correct input.  Ensure that the HDMI cables used for both the Source/Transmitter and the Receiver/Display are properly connected and are working. Test the HDMI cables directly from a source to the display and ensure correct operation.
