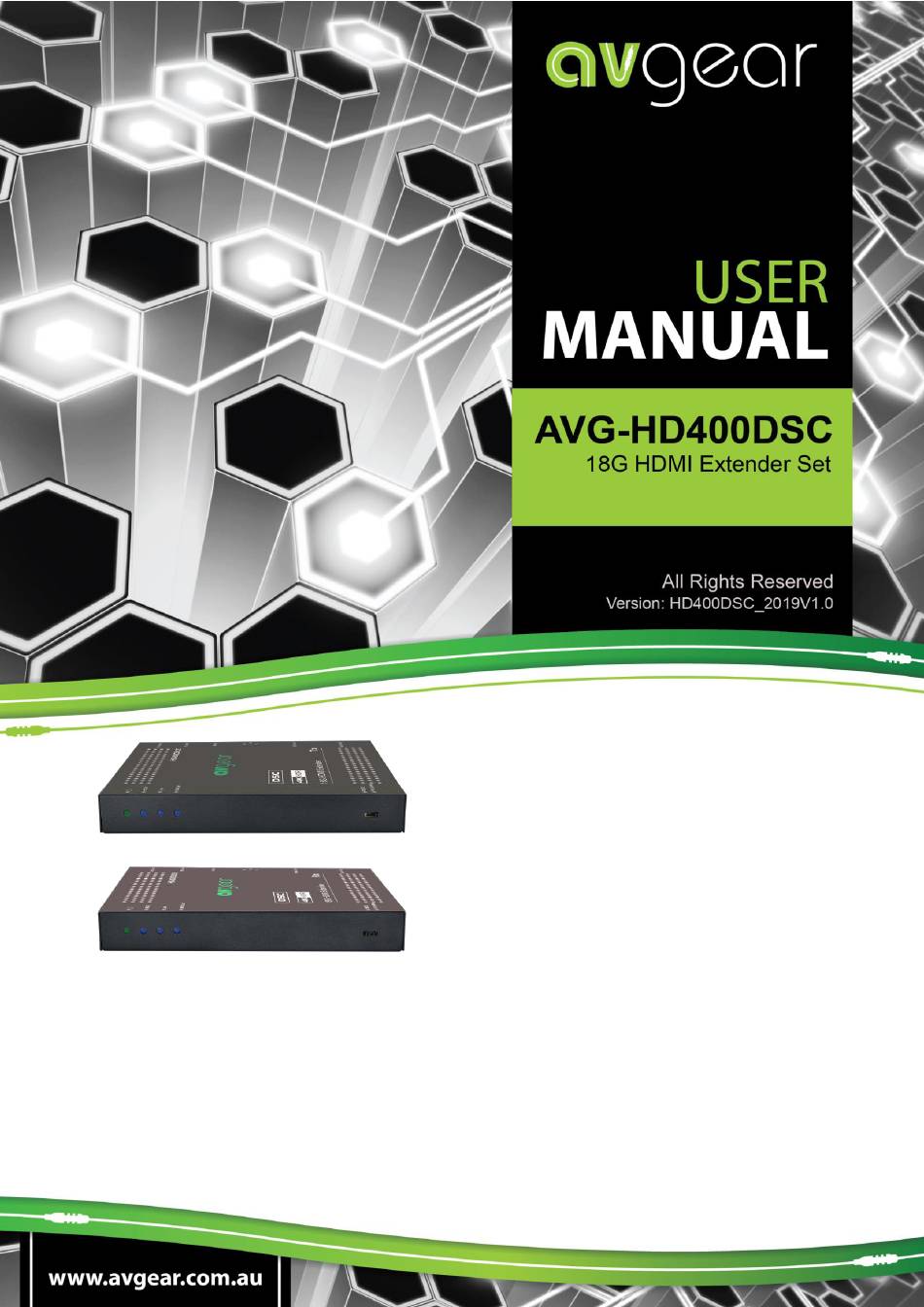

HD400DSC
This product is a professional 18G HDMI
Extender which consists a transmitter and a
receiver. The extender adopts DSC compression
technology to extend 4K@60Hz 4:4:4 HDMI
video to distance up to 40 meters (131 feet) and
1080p@60Hz video to distances up to 70 meters
(230 feet) over a single CATx cable. It supports
bi-directional IR and RS232 pass-through to
control source or display devices remotely.
Features
▪ Supports HDMI 1.4 & HDCP 2.2, is
compliant with lower standards.
▪ Supports HDMI 2.0 and the HDMI video
resolution up to 4K@60Hz 4:4:4, HDR.
▪ Supports HDCP pass-through and up to
HDCP 2.2 version.
▪ Extends 4K@60Hz 4:4:4 signal up to
40m and 1080p@60Hz signal up to 70m
via a single CATx cable.
▪ DSC (Display Stream Compression)
technology.
▪ Supports CEC pass-through.
▪ Supports bi-directional IR, RS232 and
48V PoH.
▪ Provides DIP switches for selecting
RS232 pass-through mode or firmware
upgrade mode.
Advertisement
Table of Contents
Related Manuals for AVGear AVG-HD400DSC
Summary of Contents for AVGear AVG-HD400DSC
- Page 1 HD400DSC Features ▪ Supports HDMI 1.4 & HDCP 2.2, is compliant with lower standards. ▪ Supports HDMI 2.0 and the HDMI video resolution up to 4K@60Hz 4:4:4, HDR. ▪ Supports HDCP pass-through and up to HDCP 2.2 version. ▪ Extends 4K@60Hz 4:4:4 signal up to 40m and 1080p@60Hz signal up to 70m via a single CATx cable.
- Page 2 HD400DSC PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at August 2019. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 HD400DSC SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.
-
Page 4: Table Of Contents
HD400DSC TABLE OF CONTENTS Introduction ......................1 Introduction to the HD400DSC ..............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the HD400DSC ..............3 HD400DSCT Panel Description ..............3.1 HD400DSCR Panel Description ..............3.2 Specifications ......................4 System Connection .................... -
Page 5: Introduction
HD400DSC 1. Introduction 1.1. Introduction to the HD400DSC This HD400DSC is a professional 18G HDMI Extender, which consists a transmitter and a receiver. The extender adopts DSC compression technology to extend 4K@60Hz 4:4:4 HDMI video to distance up to 40 meters (131 feet) and 1080p@60Hz video to distances up to 70 meters (230 feet) over a single CATx cable. -
Page 6: What's In The Box
HD400DSC 2. What’s in the Box ▪ 1x HD400DSCT ▪ 2x TX Mounting Ears with 2 Screws ▪ 4x TX Plastic Cushions HD400DSCT ▪ 1x 3-pin Terminal Block ▪ 1x Power Adapter (DC 24V) ▪ 1x HD400DSCR ▪ 2x RX Mounting Ears with 2 Screws HD400DSCR ▪... -
Page 7: Product Appearance Of The Hd400Dsc
HD400DSC 3. Product Appearance of HD400DSC 3.1 HD400DSCT Panel Description HDCP Link HDMI In HDBT Out HDMI In IR In IR Out DC 24V 1 2 3 4 Power LED: The LED illuminates green when power is applied and is off when no power is present. -
Page 8: Hd400Dscr Panel Description
HD400DSC 3.2 HD400DSCR Panel Description HDCP Link HDMI Out HDBT I HDMI Out IR In IR Out DC 24V 1 2 3 4 Power LED: The LED illuminates green when power is applied and is off when no power is present. HDCP LED: The LED illuminates blue when there is HDMI video traffic with HDCP. -
Page 9: Specifications
HD400DSC 4. Specifications HD400DSCT Input (1) HDMI Input Connector (1) Type-A female HDMI Output (1) HDBT Output Connector (1) RJ45 Control (1) RS232, (1) IR In (1) IR Out, Control Connector (1) 3-pin terminal block, (2) 3.5mm mini jacks HD400DSCR Input (1) HDBT Input Connector... -
Page 10: System Connection
HD400DSC 5. System Connection The following diagram illustrates the typical input and output connection of the extender: CATx: 4K 40m,1080P 70m HDMI: RS232: Power: Transmitter Receiver IR Emitter IR Receiver IR Emitter IR Recevier Blu-Ray TV Remote Remote 4K Blu-Ray Laptop HDTV...
