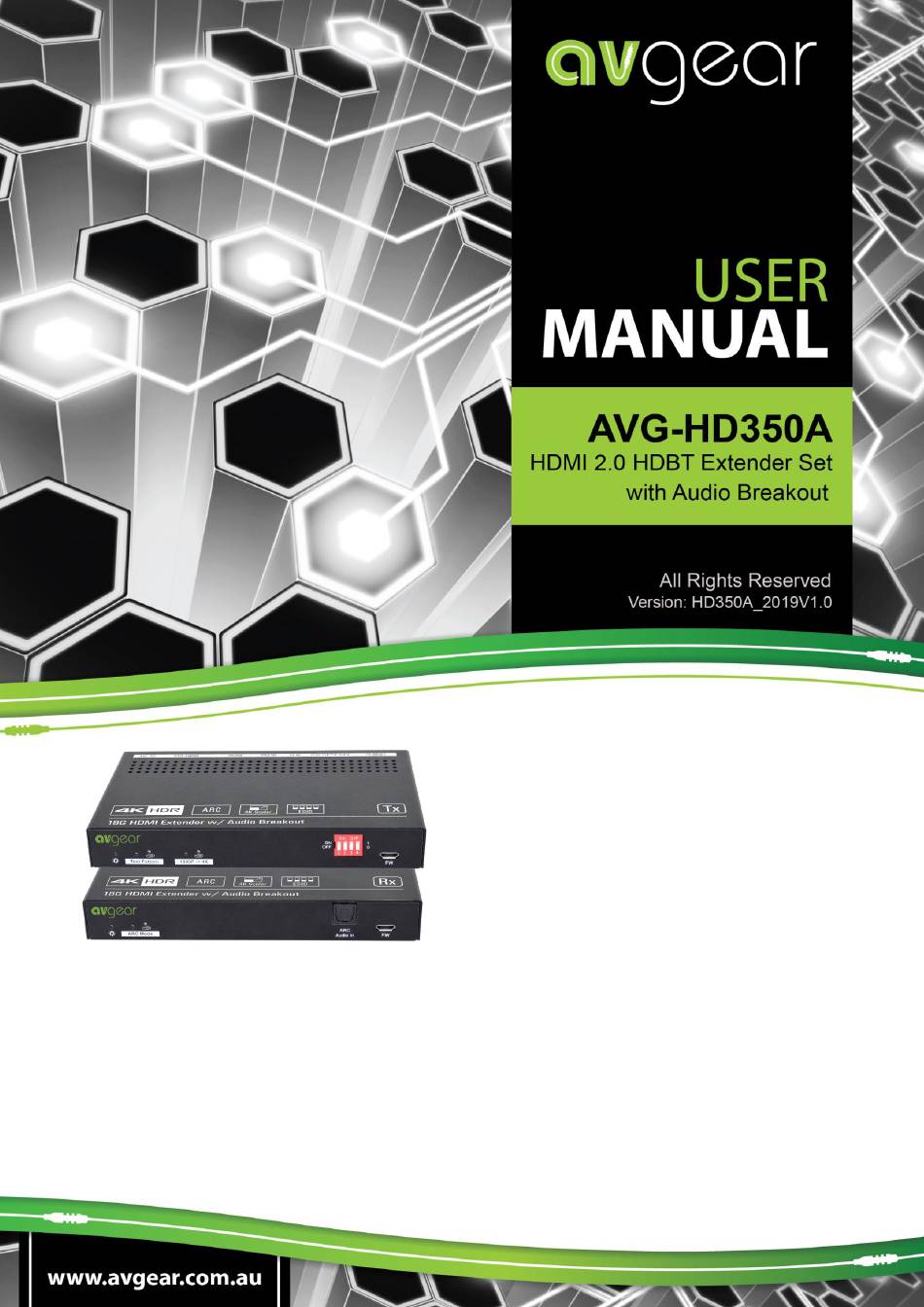

AVG-HD350A
The AVG-HD350A is a feature packed HDMI
2.0 extender set consisting of a Transmitter and
a Receiver. HDMI signal is input into the
transmitter and the HDBaseT technology is
used to transmit high-resolution 1080p / 4K
HDR HDMI signals to the receiver up to 70 /
40m via a Cat5e / Cat6a cable.
Features
▪ Supports HDMI 2.0, resolutions up to
4K@60Hz 4:4:4 HDR.
▪ HDMI input supports HDCP2.2, and
the output supports HDCP
Active/Passive.
▪ Maximum transmission distance is up
to 40m for 4K and 70m for 1080p.
▪ Features video resolution up-scaling.
▪ SPDIF out on receiver for source
audio de-embedding.
▪ 18Gbps high bandwidth.
▪ Advanced EDID management.'
▪ Test pattern generator.
▪ Bidirectional IR, RS232 and 24V PoC.
▪ ARC, and CEC pass through.
▪ LED indicators for operating status.
▪ Firmware upgradable.
Advertisement
Table of Contents
Related Manuals for AVGear AVG-HD350A
Summary of Contents for AVGear AVG-HD350A
- Page 1 40m for 4K and 70m for 1080p. ▪ Features video resolution up-scaling. ▪ SPDIF out on receiver for source The AVG-HD350A is a feature packed HDMI audio de-embedding. 2.0 extender set consisting of a Transmitter and ▪ 18Gbps high bandwidth.
- Page 2 AVG-HD350A PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at June 2019. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 AVG-HD350A SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures during installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.
-
Page 4: Table Of Contents
Introduction ......................1 Introduction to the AVG-HD350A ..............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-HD350A ............. 3 Transmitter ....................3.1 Receiver ......................3.2 DIP Switch operation ....................4 ARC Mode ......................... 5 System Connection .................... -
Page 5: Introduction
1.1. Introduction to the AVG-HD350A The AVG-HD350A is a feature packed HDMI 2.0 extender set consisting of a Transmitter and Receiver. It can extend 4K video a distance of 40m and 1080P up to 70m over a single CATx cable. It features audio de-embedding and ARC. It also supports bi-directional IR and RS232 pass-through to control source or display devices remotely. -
Page 6: What's In The Box
AVG-HD350A 2. What’s in the Box ▪ 1 x AVG-HD350A set (includes Transmitter & Receiver) ▪ 4 x Mounting Brackets ▪ 8 x Screws for brackets ▪ 8 x Rubber Feet ▪ 1 x Power Adapter (DC 24V 1.25A) ▪ 1 x 3pin Phoenix plug, 1 x RS232 cable (phoenix plug to DB9) ▪... -
Page 7: Product Appearance Of The Avg-Hd350A
AVG-HD350A 3. Product Appearance of the AVG-HD350A Transmitter HDMI In ARC Audio Out HDCP LINK ① Power LED: The LED illuminates red when power is applied. ② Test Pattern: Press the button with paper clip or other sharp tool to enable the test pattern, and the left LED illuminates blue, the product generates an image of 1080P/60Hz color bar to output;... -
Page 8: Receiver
AVG-HD350A Receiver ① Power LED: The LED illuminates red when power is applied. ② ARC Mode: Press the button with paper clip or other sharp tool to enable the ARC mode, and then the left LED illuminates blue. Press it again to exit the ARC mode and the LED is off. -
Page 9: Dip Switch Operation
AVG-HD350A 4. DIP Switch Operation EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays with... - Page 10 AVG-HD350A Note: ▪ 2CH: Supports LPCM 2CH. ▪ Multi-CH: Supports LPCM 8CH, Dolby TrueHD, DTS-HD , Dolby Digital5.1, DTS 5.1, Dolby Digital Plus. User-defined EDID Setting ⚫ Except directly invoking the built-in EDID, the specific EDID can be customised by following the below operation process.
-
Page 11: Arc Mode
AVG-HD350A HDCP Mode Put the switch 4 on the “ON” position to select HDCP Active mode, or on the “OFF” position for HDCP Passive mode. Switch Status Mode HDCP Passive Automatically follows the HDCP version of source OFF (0) (Default) device. -
Page 12: System Connection
AVG-HD350A 6. System Connection The following diagram illustrates the typical input and output connection of the extender: HDMI: Audio: RS232: HDBaseT: 4K 40m 1080P 70m HDCP LINK HDCP LINK 1 2 3 4 Emitter Receiver Speaker Laptop Speaker HDTV Remote... -
Page 13: Specifications
AVG-HD350A 7. Specifications Transmitter Receiver Video Input (1) HDMI (1) HDBT Input Connector (1) Type-A female HDMI (1) RJ45 Up to 4Kx2K@60Hz 4:4:4 Input Resolution Up to 4Kx2K@60Hz 4:2:0 8bit HDR10 Output (1) HDBT Out (1) HDMI Output Connector (1) RJ45... - Page 14 AVG-HD350A Control (1) Test Pattern button, (1)1080P → 4K button, (1) ARC Mode button, (1) FW, Control Part (1) EDID 4-pin DIP switch, (1) IR In, (1) IR Out, (1) RS232 (1) FW, (1) IR In, (1) IR Out, (1) RS232...
