AVGear AVG-HD50 User Manual

Ultra-compact hdmi extender set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AVG-HD50

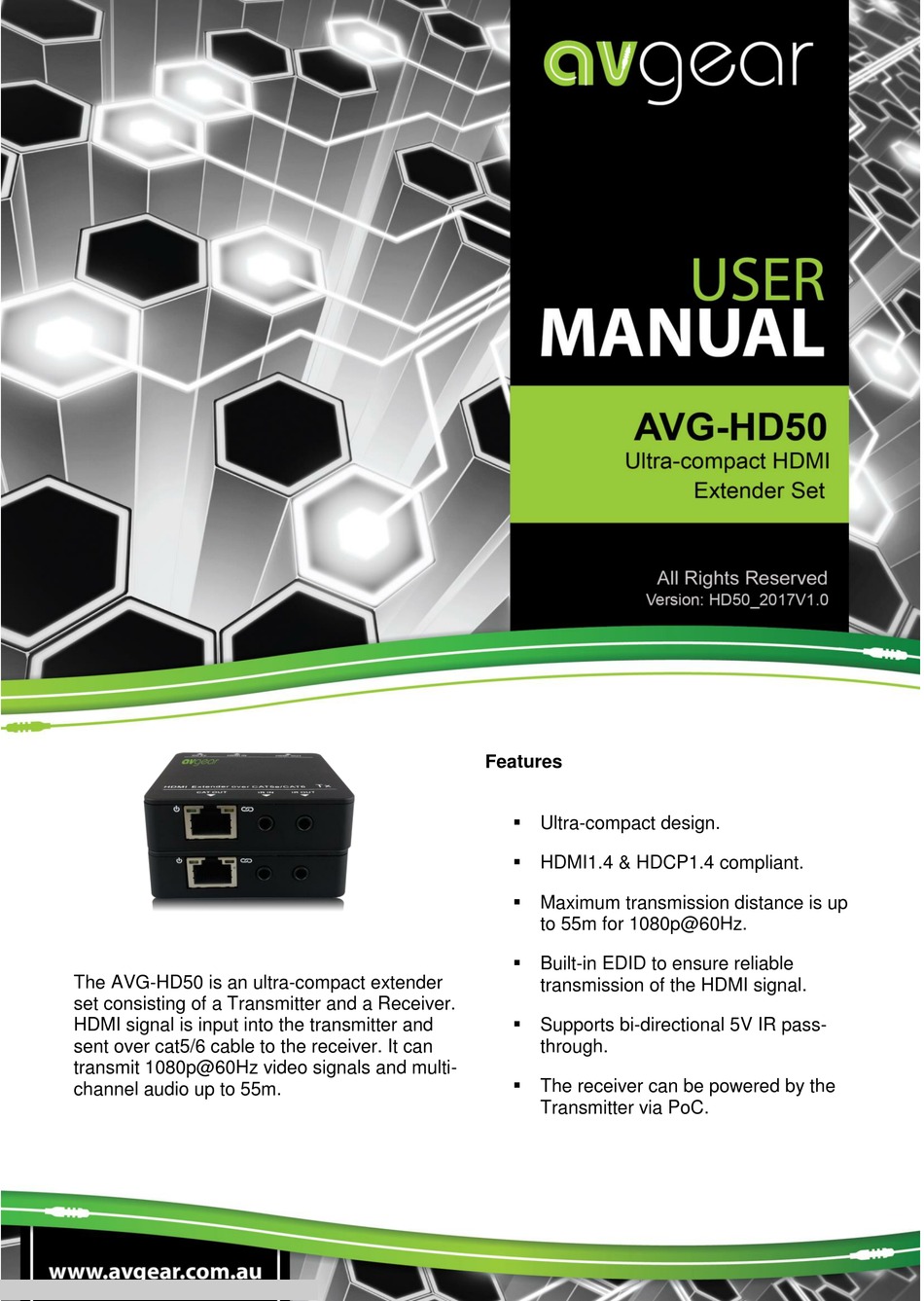

The AVG-HD50 is an ultra-compact extender
set consisting of a Transmitter and a Receiver.
HDMI signal is input into the transmitter and
sent over cat5/6 cable to the receiver. It can
transmit 1080p@60Hz video signals and multi-
channel audio up to 55m.
Features
 Ultra-compact design.
 HDMI1.4 & HDCP1.4 compliant.
 Maximum transmission distance is up
to 55m for 1080p@60Hz.
 Built-in EDID to ensure reliable
transmission of the HDMI signal.
 Supports bi-directional 5V IR pass-
through.
 The receiver can be powered by the
Transmitter via PoC.
