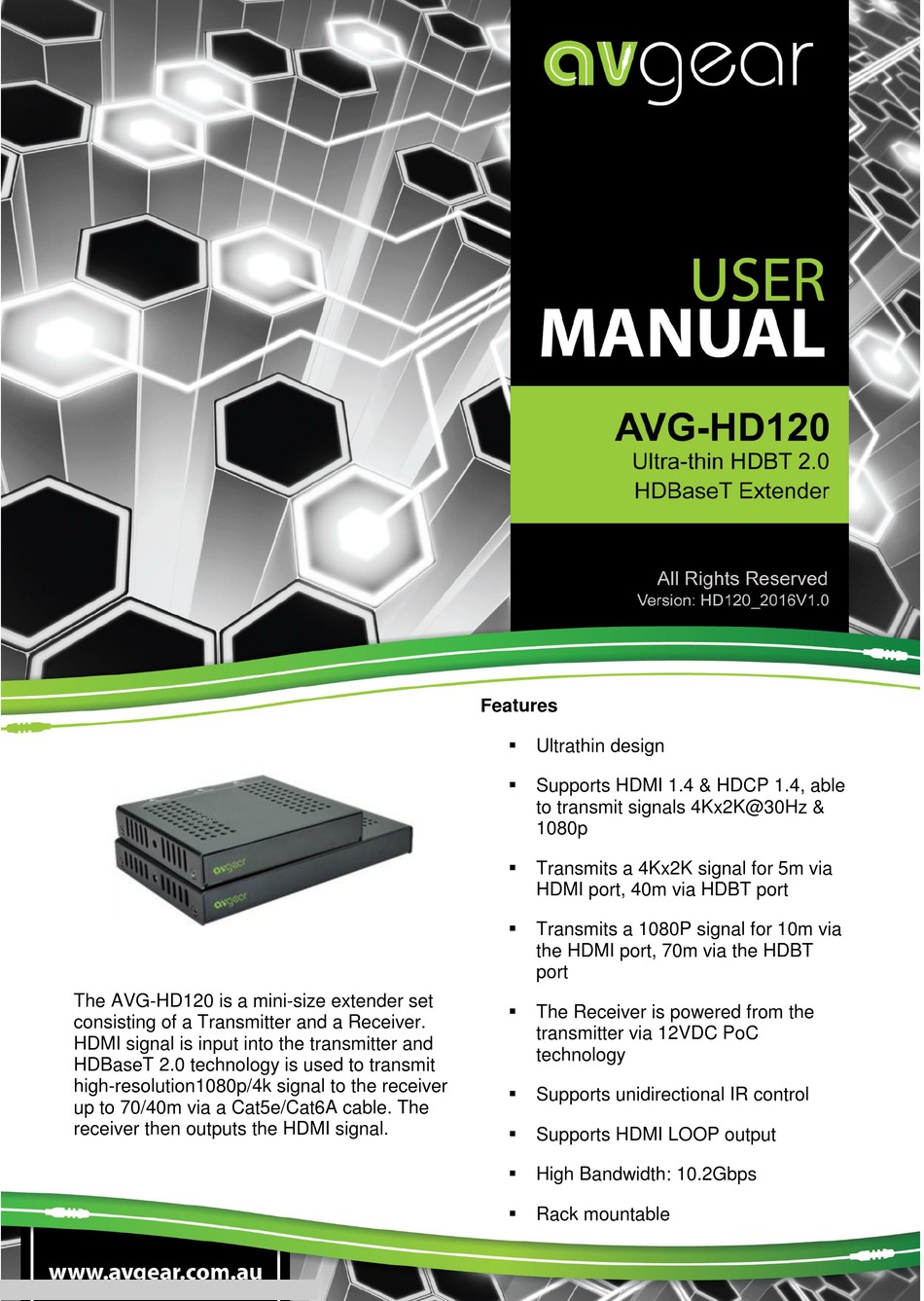

AVG-HD120

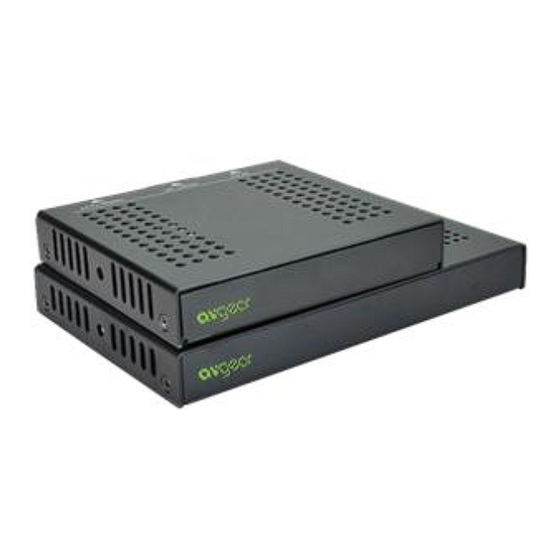

The AVG-HD120 is a mini-size extender set
consisting of a Transmitter and a Receiver.
HDMI signal is input into the transmitter and
HDBaseT 2.0 technology is used to transmit
high-resolution1080p/4k signal to the receiver
up to 70/40m via a Cat5e/Cat6A cable. The
receiver then outputs the HDMI signal.
Features
 Ultrathin design
 Supports HDMI 1.4 & HDCP 1.4, able
to transmit signals 4Kx2K@30Hz &
1080p
 Transmits a 4Kx2K signal for 5m via
HDMI port, 40m via HDBT port
 Transmits a 1080P signal for 10m via
the HDMI port, 70m via the HDBT
port
 The Receiver is powered from the
transmitter via 12VDC PoC
technology
 Supports unidirectional IR control
 Supports HDMI LOOP output
 High Bandwidth: 10.2Gbps
 Rack mountable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-HD120 and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-HD120

Summary of Contents for AVGear AVG-HD120

  • Page 1  Transmits a 1080P signal for 10m via the HDMI port, 70m via the HDBT port The AVG-HD120 is a mini-size extender set  The Receiver is powered from the consisting of a Transmitter and a Receiver. transmitter via 12VDC PoC...
  • Page 2 AVG-HD120 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operation instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at March 2016. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-HD120 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures during installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Introduction ......................1 Introduction to the AVG-HD120 ..............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-HD120 ............... 3 Transmitter ....................3.1 Receiver ......................3.2 System Connection ....................4 Usage Precautions ..................4.1 Connection Diagram ..................

  • Page 5: Introduction

    1. Introduction 1.1. Introduction to the AVG-HD120 The AVG-HD120 is a mini-size extender set consists of a Transmitter and a Receiver. HDMI signal is input into the transmitter and HDBaseT 2.0 technology is used to transmit a high-resolution 1080p/4k signal to the receiver up to 70/40m via a Cat5e/Cat6A cable.

  • Page 6: What's In The Box

    AVG-HD120 2. What’s in the Box  1 x AVG-HD120 (includes Transmitter & Receiver)  4 x Mounting Brackets  8 x Screws  8 x Rubber Feet  1 x Power Adapter (DC 12V 2A)  1 x IR Emitter ...

  • Page 7: Product Appearance Of The Avg-Hd120

    AVG-HD120 3. Product Appearance of the AVG-HD120 HDBT OUT HDCP LINK 3.1. Transmitter Name Description ① Power Illuminates red when powered on Connect with an IR Emitter to send infrared signal, works with the ② IR OUT IR IN port of the Receiver.

  • Page 8: Receiver

    AVG-HD120 3.2. Receiver HDBT IN HDCP LINK Name Description Power ① Illuminates red when powered on indicator Connect with IR receiver to collect infrared signals, work with the ② IR IN IR OUT port of the Transmitter. Connect to the HDBT OUT socket on the Transmitter via CAT5e/ ③...

  • Page 9: System Connection

    AVG-HD120 4. System Connection 4.1. System Applications Robust performance for control and signal transmission makes the AVG-HD120 ideal in the custom installation industry, IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc.

  • Page 10: Connection Procedure

    AVG-HD120 4.4. Connection Procedure Step 1. Connect a HDMI source (such as Blu-ray DVD) to HDMI IN port of the transmitter with a HDMI cable. Step 2. Connect the HDBT OUT/PoH port of the transmitter to HDBT IN/PoH port of the receiver through a straight-thru CAT5e/CAT6a cable.

  • Page 11: Specification

    AVG-HD120 5. Specifications Model Transmitter Receiver Spec Input 1 x IR IN, Signal 1 x HDMI IN 1 x HDBT IN 1 x19-pin Type-A female HDMI 1 x 3.5mm mini jack Connector 1 x RJ-45 Output 1 x HDMI OUT;...

  • Page 12: Panel Drawing

    AVG-HD120 Power 11W(Max) Consumption Dimension 128x 16x 84 mm 90x 16x 84 mm (W*H*D) Weight 157g 116g 6. Panel Drawing HDBT OUT 128 mm HDCP LINK Transmitter HDBT IN 90 mm HDCP LINK Receiver...

  • Page 13: Troubleshooting & Maintenance

    AVG-HD120 7. Troubleshooting & Maintenance No image on the display:  Ensure that the display device has been set to the correct input.  Ensure that the HDMI cables used for both the Source/Transmitter and the Receiver/Display are properly connected and are working. Test the HDMI cables directly from a source to the display and ensure correct operation.
