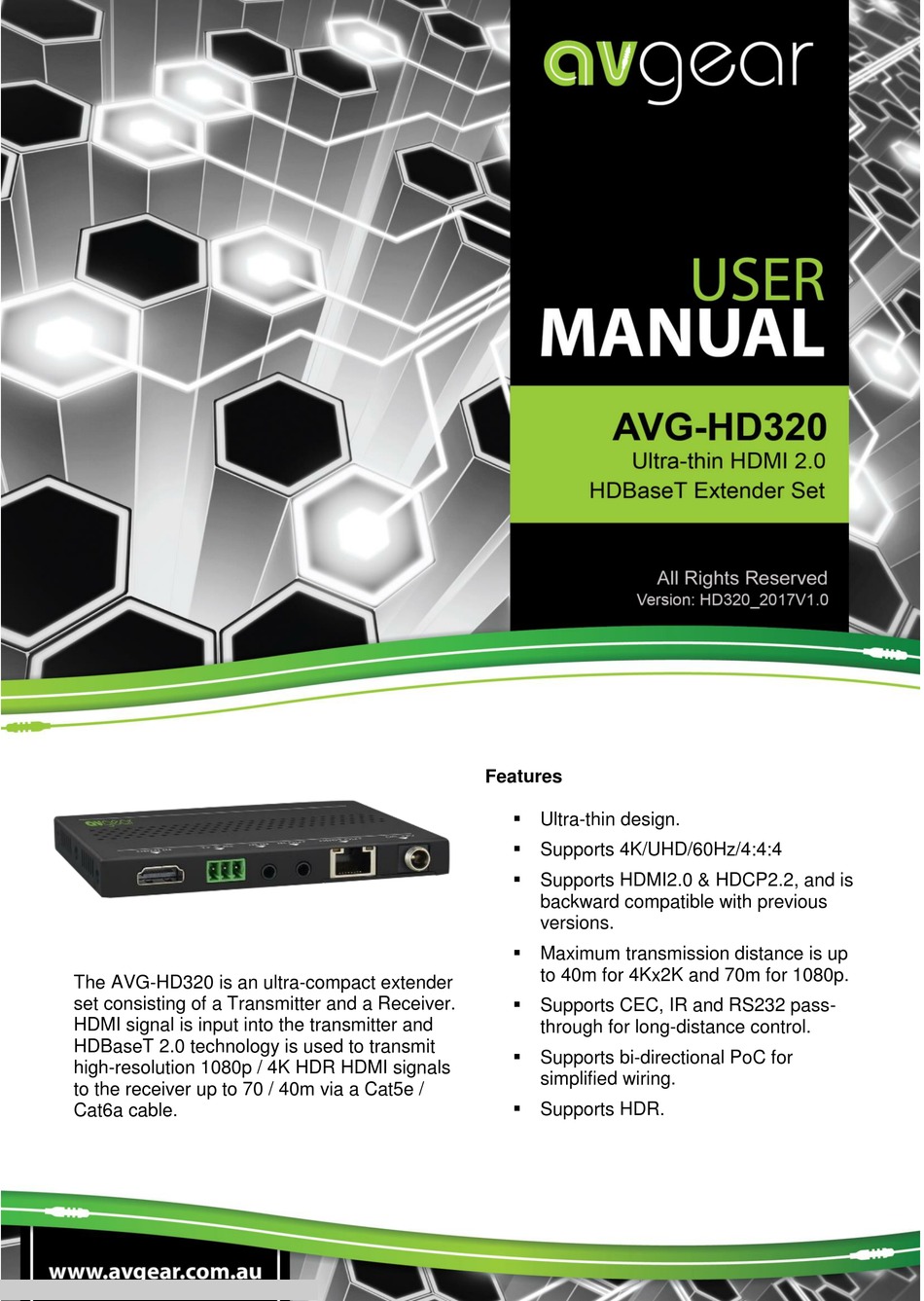

AVGear AVG-HD320 User Manual

Ultra-thin hdmi 2.0 hdbaset extender set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AVG-HD320
The AVG-HD320 is an ultra-compact extender
set consisting of a Transmitter and a Receiver.
HDMI signal is input into the transmitter and
HDBaseT 2.0 technology is used to transmit
high-resolution 1080p / 4K HDR HDMI signals
to the receiver up to 70 / 40m via a Cat5e /
Cat6a cable.
Features
 Ultra-thin design.
 Supports 4K/UHD/60Hz/4:4:4
 Supports HDMI2.0 & HDCP2.2, and is
backward compatible with previous
versions.
 Maximum transmission distance is up
to 40m for 4Kx2K and 70m for 1080p.
 Supports CEC, IR and RS232 pass-
through for long-distance control.
 Supports bi-directional PoC for
simplified wiring.
 Supports HDR.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-HD320 and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-HD320

Summary of Contents for AVGear AVG-HD320

  • Page 1  Maximum transmission distance is up to 40m for 4Kx2K and 70m for 1080p. The AVG-HD320 is an ultra-compact extender  Supports CEC, IR and RS232 pass- set consisting of a Transmitter and a Receiver. HDMI signal is input into the transmitter and through for long-distance control.
  • Page 2 AVG-HD320 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at May 2017. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-HD320 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures during installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Introduction ......................1 Introduction to the AVG-HD320 ..............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-HD320 ............... 3 Transmitter ....................3.1 Receiver ......................3.2 System Connection ....................4 Usage Precautions ..................4.1 Connection Diagram ..................

  • Page 5: Introduction

    1.1. Introduction to the AVG-HD320 The AVG-HD320 is an ultra compact extender set consisting of a Transmitter and Receiver. HDMI signal is input into the transmitter and HDBaseT 2.0 technology is used to transmit a high-resolution 1080p / 4K signal to the receiver up to 70 / 40m via a Cat5e / Cat6A cable.

  • Page 6: What's In The Box

    AVG-HD320 2. What’s in the Box  1 x AVG-HD320 (includes Transmitter & Receiver)  4 x Mounting Brackets  8 x Screws  8 x Rubber Feet  1 x Power Adapter (DC 12V 2A)  2 x RS232 cables ...

  • Page 7: Product Appearance Of The Avg-Hd320

    AVG-HD320 3. Product Appearance of the AVG-HD320 Transmitter HDBT OUT DC 12V UPDATE B UPDATE A CTRL Receiver HDBT IN DC 12V UPDATE B UPDATE A CTRL Name Description  CTRL: RS232 pass-through control mode. UPDATE A: Update Valens IC program, connect a PC to ...

  • Page 8: System Connection

    AVG-HD320 4. System Connection 4.1. System Applications Robust performance for control and signal transmission makes the AVG-HD320 ideal in the custom installation industry, IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc.

  • Page 9: Connection Procedure

    AVG-HD320 4.4. Connection Procedure Step 1. Connect an HDMI source (such as Blu-ray DVD) to HDMI IN port of the transmitter with a HDMI cable. Step 2. Connect the HDBT OUT port of the transmitter to HDBT IN port of the receiver via a straight-thru CAT5e/CAT6a cable.

  • Page 10: Specifications

    AVG-HD320 5. Specifications Model Transmitter Receiver Spec Input HDMI IN HDBT IN Output HDBT OUT HDMI OUT Control Ports IR IN, IR OUT, RS232 IR IN, IR OUT, RS232 General Transmission Mode & HDBaseT; 1080p ≤ 70m; 4K×2K ≤ 40m...

  • Page 11: Panel Drawing

    AVG-HD320 6. Panel Drawing Transmitter Receiver...

  • Page 12: Troubleshooting & Maintenance

    AVG-HD320 7. Troubleshooting & Maintenance No image on the display:  Ensure that the display device has been set to the correct input.  Ensure that the HDMI cables used for both the Source/Transmitter and the Receiver/Display are properly connected and are working. Test the HDMI cables directly from a source to the display and ensure correct operation.
