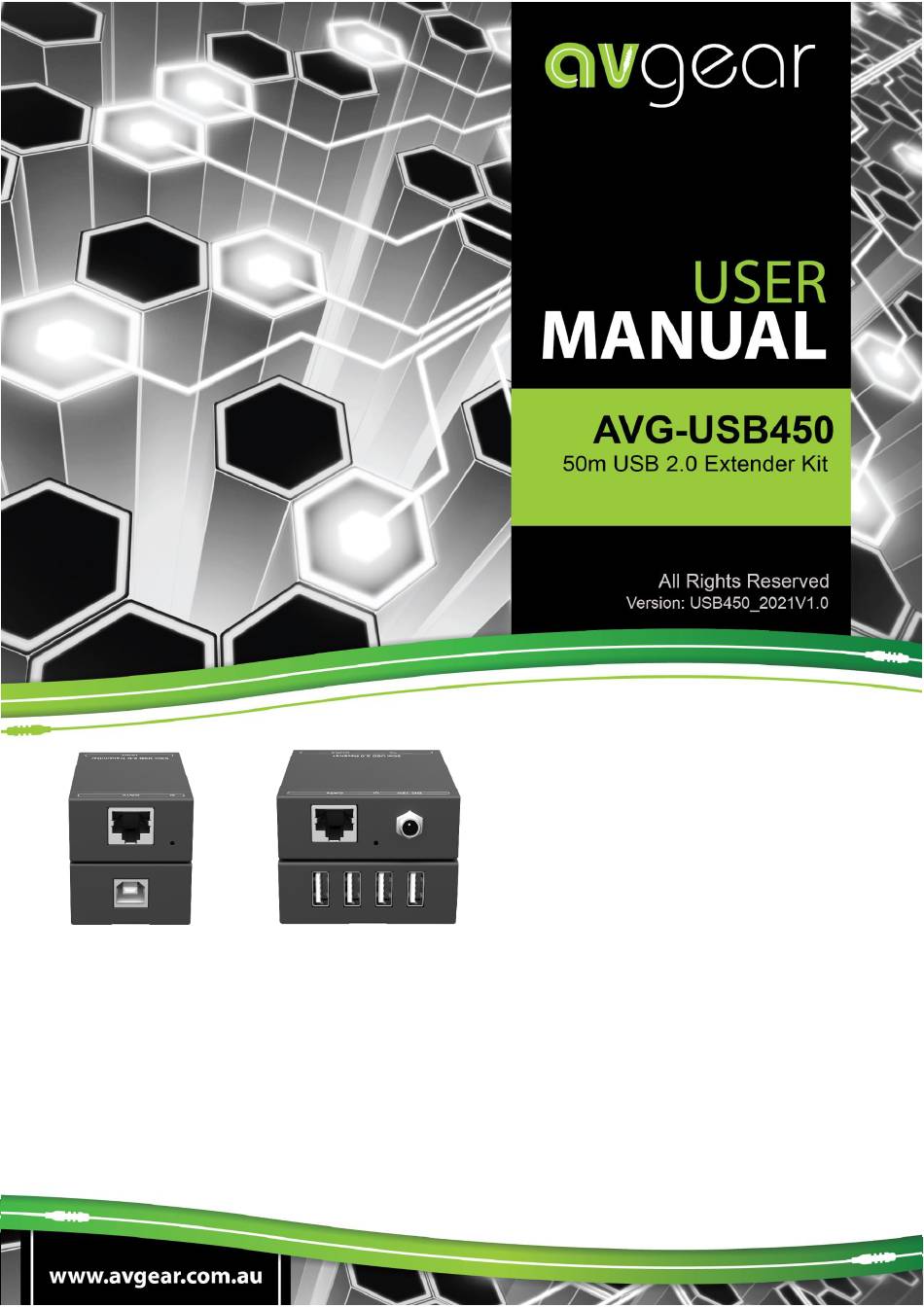

AVG-USB450
Thanks for choosing the AVG-USB450 extender
kit which consists of a transmitter (Tx) and a
receiver (Rx). It serves as a four in one USB
hub and extends USB 2.0 signals up to 50
meters over a Cat5e/6/7 cable.
The transmitter is powered by the computers
USB outlet. The power supply is used at the
remote receiver that's helps provide sufficient
power to any type of USB device, such as flash
drives, keyboards, mouses, cameras, or
printers, etc.
With its durable metal housing, this high-quality
USB extender provides a fast and flexible
solution for users. In addition, the compact size
enables space-saving installation.
Features
High-Speed USB 2.0 compliant, the
▪
transfer data rate is up to 480Mbps.
Transmission distance is up to a
▪
maximum of 50m over a CAT5e/6/7
cable.
Equipped with 4 USB peripherals to
▪
connect with keyboards, mouse,
cameras and more.
The first two USB-A ports provide 5V
▪
1A each, and the other two output
5V 500mA each.
Compatible with Windows, IOS and
▪
Linux.
Plug and play.
▪
Advertisement
Table of Contents
Related Manuals for AVGear AVG-USB450
Summary of Contents for AVGear AVG-USB450
- Page 1 Equipped with 4 USB peripherals to ▪ connect with keyboards, mouse, Thanks for choosing the AVG-USB450 extender kit which consists of a transmitter (Tx) and a cameras and more. receiver (Rx). It serves as a four in one USB The first two USB-A ports provide 5V ▪...
- Page 2 AVG-USB450 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operation instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at June 2021. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 AVG-USB450 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.
-
Page 4: Table Of Contents
AVG-USB450 TABLE OF CONTENTS Introduction ......................1 Introduction to the AVG-USB450 ..............1.1 Features ....................... 1.2 Package List ....……………………………………………………………………2 Product Appearance of the AVG-USB450 .............. 3 Front Panel ....................3.1 System Connection ....................4... -
Page 5: Introduction
1. Introduction 1.1. Introduction to the AVG-USB450 Thanks for choosing the AVG-USB450 extender kit which consists of a transmitter (Tx) and a receiver (Rx). It serves as a four in one USB hub and extends USB 2.0 signals up to 50 meters over a Cat5e/6/7 cable. -
Page 6: Package List
AVG-USB450 2. Package List 1x Transmitter (TX) ▪ 1x Receiver (RX) ▪ 1x Power Adaptor (DC12V2A) ▪ 1 x USB-A male to USB-B male Cable (1m) ▪ 1x User Manual ▪ Note: Please confirm if the product and the accessories are all included, if not, please... -
Page 7: Product Appearance Of The Avg-Usb450
AVG-USB450 3. Product Appearance of the AVG-USB450 Transmitter Panel Description Name Description ① HOST Type-B USB port to connect with the computer. ② Power LED Illuminates green when the unit is powered on. RJ45 connector for a CAT5e/6/7 Ethernet cable to connect the ③... -
Page 8: System Connection
AVG-USB450 4. System Connection Note 1: This picture is for reference only and may not apply in your installation application. Note 2: This transmission distance between TX and RX is affected by the following: The lengths of USB cables. ⚫...
