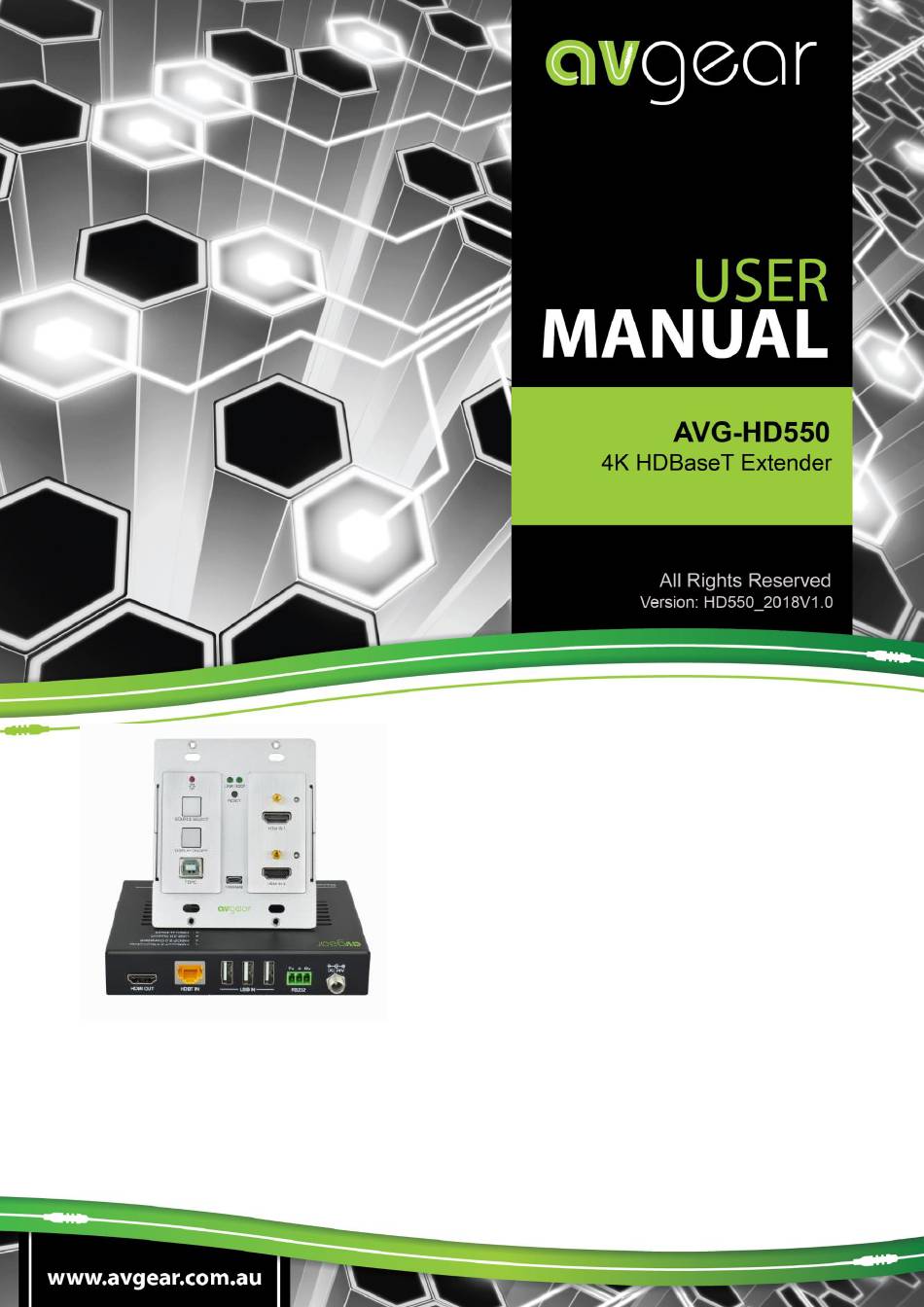

AVG-HD550
The AVG-HD550 consists of a Wall Plate Transmitter
and a receiver which can transmit HDMI(1080P,
4K@60Hz 4:2:0), RS232 and USB signals up to
100m using a single CATx cable. The Wallplate
features two HDMI inputs and a USB-B port for HID
devices such as a Mouse or keyboard.
Features
▪
HDMI signal up to 4K@60Hz 4:2:0.
▪
HDMI1.4 and HDCP2.2 compliant.
▪
Auto input switching.
▪
HDBaseT technology extends HDMI,
USB and RS232 signals up to 100m
over CATx cable.
▪
Bi-directional RS232 pass-through
with HDBaseT connection and local
control.
▪
CEC control via the Display Button.
▪
Ensures display of content protected
media and interoperability with other
HDCP compliant devices.
▪
24V PoC, transmitter is powered by
the receiver.
Advertisement
Table of Contents
Related Manuals for AVGear AVG-HD550
Summary of Contents for AVGear AVG-HD550
- Page 1 HDBaseT connection and local control. ▪ CEC control via the Display Button. The AVG-HD550 consists of a Wall Plate Transmitter and a receiver which can transmit HDMI(1080P, ▪ Ensures display of content protected 4K@60Hz 4:2:0), RS232 and USB signals up to media and interoperability with other 100m using a single CATx cable.
- Page 2 AVG-HD550 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is for operational use only, and not to be used in a maintenance capacity. The functions described in this version are current as at October 2018. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 AVG-HD550 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. Unpack the equipment carefully and save the original box and packing material for possible future shipment 2.
-
Page 4: Table Of Contents
AVG-HD550 TABLE OF CONTENTS Introduction ......................1 Introduction to the AVG-HD550 ..............1.1 Features ....................... 1.2 Package List ....……………………………………………………………………2 Product Appearance ....................3 Transmitter Front Panel ................3.1 Transmitter Rear Panel ................3.2 Receiver Front Panel ..................3.3 Receiver Rear Panel ..................3.4 System Connection .................... -
Page 5: Introduction
AVG-HD550 1. Introduction 1.1. Introduction to the AVG-HD550 The AVG-HD550 consists of a Wall Plate Transmitter and a receiver which can transmit HDMI(1080P, 4K@60Hz 4:2:0), RS232 and USB signals up to 100m using a single CATx cable. The Wallplate features two HDMI inputs which can be selected by the SOURCE/AUTO button on the front panel. -
Page 6: Package List
AVG-HD550 2. Package List ▪ 1 x Wallplate Transmitter ▪ 4 x Mounting Screws Wallplate ▪ 1 x 2-pin Phoenix plug Transmitter ▪ 1 x 3-pin Phoenix plug ▪ 1 x Receiver ▪ 2 x Mounting Ears plus screws ▪ 4 x Rubber Feet Receiver ▪... -
Page 7: Product Appearance
AVG-HD550 3. Product Appearance 3.1. Transmitter Front Panel LINK HD550T RESET SOURCE SELECT HDMI IN 1 DISPLAY ON/OFF TO PC HDMI IN 2 FIRMWARE 12 1 1 ① POWER LED: The LED illuminates red when power is applied. ② LINK LED: The LED illuminates green when the transmitter and the receiver are successfully connected by a CATx cable. -
Page 8: Transmitter Rear Panel
AVG-HD550 connected to a source device, and it will turn green once the device is selected as input source. ⑩ HDMI IN 2: Type-A HDMI port to connect a HDMI source. ⑪ RESET: Press this button to reboot the wallplate. -
Page 9: Receiver Front Panel
AVG-HD550 3.3. Receiver Front Panel ① POWER LED: The LED illuminates red when power is applied. ② ON LED: The LED blinks green when the receiver is working. ③ LINK: The LED illuminates green when the transmitter and the receiver are successfully connected by a CATx cable. -
Page 10: System Connection
⑤ DC 24V: Power port to connect the 24V DC power adaptor. 4. System Connection 4.1. System Applications Reliable performance for control and transmission makes the AVG-HD550 ideal in the IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc. -
Page 11: Button Control
AVG-HD550 5. Button Control 5.1. Signal Switching 1) Press the SOURCE SELECT button to switch to the next source device, the corresponding input LED will turn green. 2) Press and hold the SOURCE SELECT button for at least 3 seconds to enable... -
Page 12: Rs232 Control
AVG-HD550 6. RS232 Control 6.1. RS232 Connection Depending on the RS232 control mode you are using, there are three possible RS232 connections. ① When you are only controlling the transmitter, connect a control device (e.g. PC) to the RS232 port of the transmitter, the connection diagram is shown below:... - Page 13 AVG-HD550 ② When controlling a far-end third party device from local a control device (e.g. PC), connect the PC to the RS232 port of the transmitter, and then connect the third party device (e.g. projector) to the RS232 port of receiver. The connection diagram is shown below: ③...
-
Page 14: Control Software
AVG-HD550 6.2. RS232 Control Software After connecting all your required input and output devices according to one of the three methods, the RS232 control software needs to be installed into the control PC to send RS232 commands. Installation Copy the control software file to the control PC. -
Page 15: Rs232 Commands
AVG-HD550 Set the port number, baud rate, data bit, stop bit and the parity bit correctly, then the RS232 commands can be sent in Command Sending Area. Baud rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 and 115200. Data bit: 8;... - Page 16 AVG-HD550 CEC Command Command Function Feedback Example 50730% Volume up the display CEC VOLUME INCREASE 50731% Volume down the display CEC VOLUME DECREASE 50732% Mute the display CEC VOLUME MUTE 50733% Display ON CEC DISPLAY ON 50734% Display OFF CEC DISPLAY OFF Note: The display must support CEC.
- Page 17 AVG-HD550 b=3, Baud rate is 19200 b=4, Baud rate is 38400 b=5, Baud rate is 57600 b=6, Baud rate is 115200 k=0, Set the DISPLAY ON /-12:30 31 32 33 k=1, Set the DISPLAY OFF xx xx xx xx: HEX characters...
-
Page 18: Specification
AVG-HD550 7. Specification Transmitter Input Input (2) HDMI Input Connector (2) Female type A HDMI Output Output (1) HDBT, (1) TO PC, (1) DC OUT Output Connector (1) RJ45, (1) Type-B USB; (1) 2-pin Phoneix plug Control Control Port (1) FIRMWARE, (1) RS232... - Page 19 AVG-HD550 Receiver Input Input (1) HDBT, (3) USB Input Connector (1) RJ45, (3) Type-A USB Output Output (1) HDMI Output Connector (1) Female type A HDMI Control Control port (1) FIRMWARE, (1) RS232 Control Connector (1) Micro-USB, (1) 3-pin Phoenix plug...
-
Page 20: Panel Drawing
AVG-HD550 8. Panel Drawing Transmitter Receiver 136 mm Note: Pictures shown in this manual are for reference only. -
Page 21: Troubleshooting & Maintenance
AVG-HD550 9. Troubleshooting & Maintenance Causes Solutions Problems Colour loss or no video signal output in the HDMI display No HDMI signal output in The cables may be Check whether the cables the device while local incorrectly connected are connected correctly and...
