AVGear AVG-HD600 User Manual

Ultra-thin hdmi 2.0 hdbaset extender set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AVG-HD600

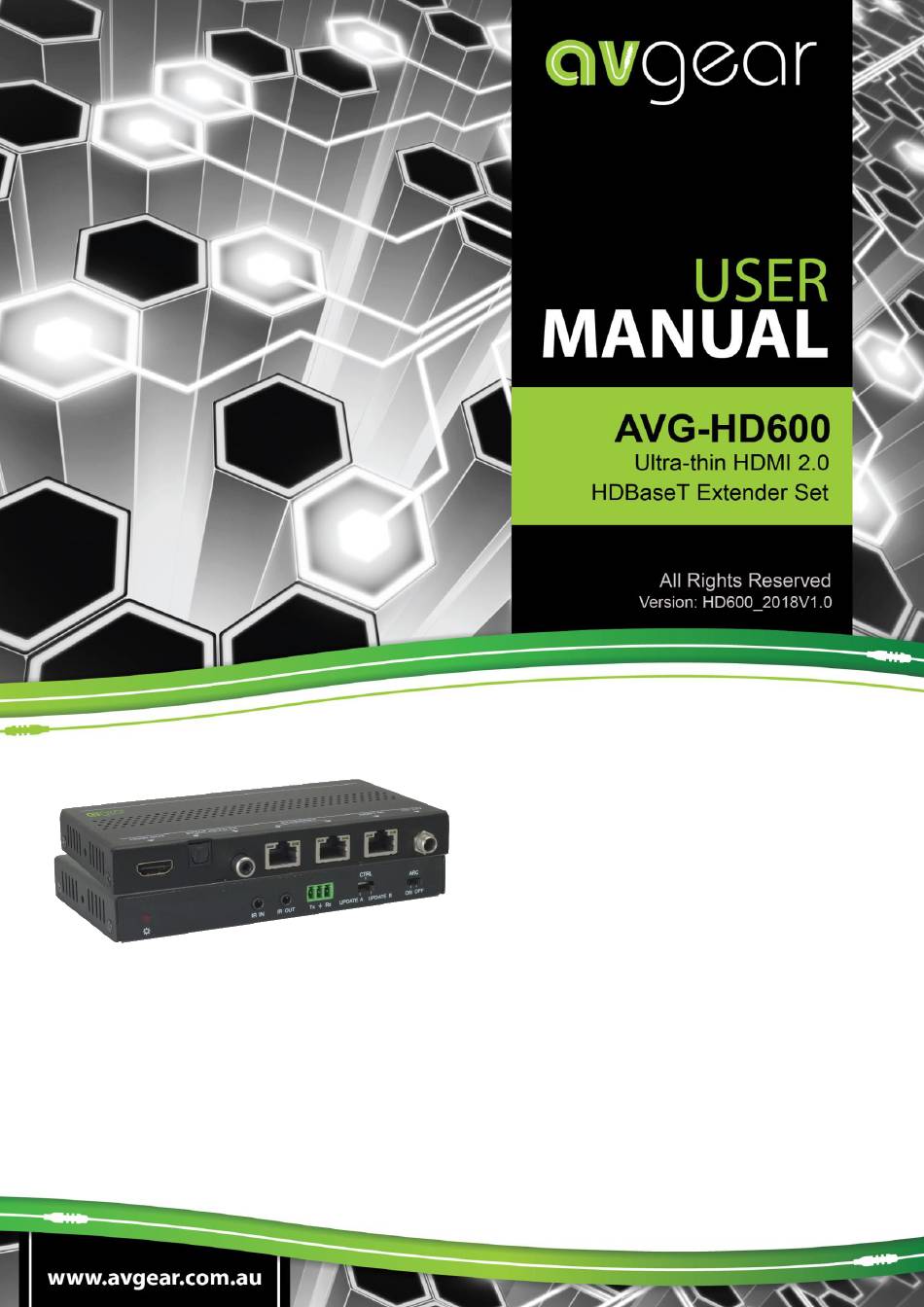

The AVG-HD600 is a 4K ultra-thin HDMI2.0
extender set consisting of a Transmitter and a
Receiver. It can extend 4K HDMI signals of
3840x2160@60Hz 4:4:4 (max) up to 100m via
Cat5e/6 cable. It also features a built in Ethernet
switch to extend your LAN throughout the
project.
Features
▪ Supports HDMI2.0 3840x2160@60Hz
4:4:4, HDR.
▪ HDCP2.2 pass-through.
▪ Extends 3840x2160@60Hz 4:4:4
(Max) signal up to 100m.
▪ Supports bi-directional IR and RS232
pass-through.
▪ Supports bi-directional 24V PoC.
▪ Built in Ethernet Switch.
▪ Ultra-thin design.
▪ LED indicators.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-HD600 and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-HD600

Summary of Contents for AVGear AVG-HD600

  • Page 1 ▪ HDCP2.2 pass-through. ▪ Extends 3840x2160@60Hz 4:4:4 (Max) signal up to 100m. ▪ Supports bi-directional IR and RS232 The AVG-HD600 is a 4K ultra-thin HDMI2.0 pass-through. extender set consisting of a Transmitter and a ▪ Supports bi-directional 24V PoC. Receiver. It can extend 4K HDMI signals of ▪...
  • Page 2 AVG-HD600 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at June 2018. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-HD600 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures during installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Introduction ......................1 Introduction to the AVG-HD600 ..............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-HD600 ............... 3 Transmitter ....................3.1 Receiver ......................3.2 System Connection ....................4 Usage Precautions ..................4.1 Connection Diagram ..................

  • Page 5: Introduction

    1. Introduction 1.1. Introduction to the AVG-HD600 The AVG-HD600 is an ultra-thin HDMI2.0 extender set consisting of a Transmitter and a Receiver. It can extend 3840x2160@60Hz 4:4:4 (max) HDMI signals up to 100m via Cat5e/6 cable. Flexible power design (24V PoC) allows this extender to be powered at either the Transmitter or the Receiver end.

  • Page 6: Product Appearance Of The Avg-Hd600

    AVG-HD600 3. Product Appearance of the AVG-HD600 Transmitter CTRL IR IN IR OUT UPDATE A UPDATE B Name Description ① Power LED RED when DC power present. Connect an IR Receiver to collect infrared signal, works in combination ② IR IN with the far-end IR OUT port.

  • Page 7: Receiver

    AVG-HD600 Receiver CTRL IR IN IR OUT UPDATE A UPDATE B Name Description ① Power LED RED when DC power present. Connect an IR Receiver to collect infrared signal, works in combination ② IR IN with the far-end IR OUT port.

  • Page 8: System Connection

    4. System Connection 4.1. System Applications Robust performance for control and signal transmission makes the AVG-HD600 ideal in the custom installation industry, IT computer space, signal monitoring, big screen displays, conference systems, television broadcast, education, banking and security institutions etc.
  • Page 9 AVG-HD600 ② Transmitter: ARC OFF; Receiver: ARC OFF IR Emitter ARC OFF Laptop IR Receiver TV Remote IR Receiver Blu-Ray HDTV Remote IR Emitter 4K Blu-Ray 4K 100m 1080P 150m CATx: HDMI: RS232: Power: Router Laptop Laptop Speaker Amplifier Figure 0-2 System Diagram (OFF OFF) ...

  • Page 10: Connection Procedure

    AVG-HD600 4.4. Connection Procedure Step 1. Connect an HDMI source (such as Blu-ray DVD) to HDMI IN port of the transmitter with an HDMI cable. Step 2. Connect the HDBT OUT port of the transmitter to HDBT IN port of the receiver via a straight-thru CAT5e/CAT6a cable.

  • Page 11: Specifications

    AVG-HD600 5. Specifications Model Transmitter Receiver Spec Audio& Video (1) HDMI Input (1) HDBT; (1) SPDIF Input Connector (1) 19-pin Type-A male (1) RJ45; (1) Toslink/Coax Output (1) HDBT; (1) L+R ; (1) SPDIF (1) HDMI (1) RJ45; (1) L&R (RCA);...

  • Page 12: Troubleshooting & Maintenance

    AVG-HD600 6. Troubleshooting & Maintenance Problem Possible Causes Solutions No reaction to any Hasn’t been powered on. Insert power adapter to either end. operation, power indicator is off Abnormal Incorrect power adapter has been Use the supplied DC 24V 1.25A power indication of the used.
