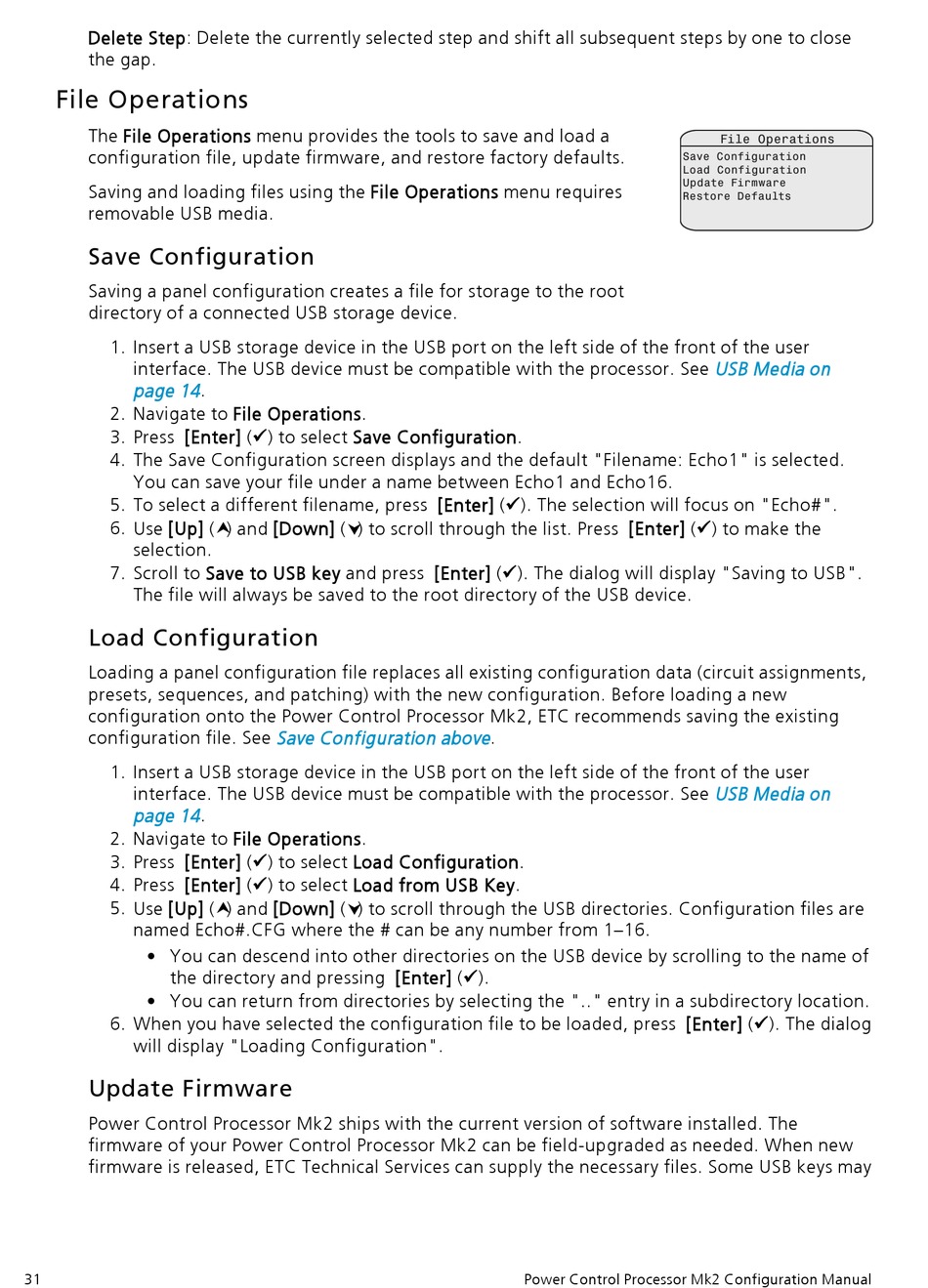

Delete Step: Delete the currently selected step and shift all subsequent steps by one to close
the gap.

File Operations

The File Operations menu provides the tools to save and load a
configuration file, update firmware, and restore factory defaults.
Saving and loading files using the File Operations menu requires
removable USB media.

Save Configuration

Saving a panel configuration creates a file for storage to the root
directory of a connected USB storage device.
1. Insert a USB storage device in the USB port on the left side of the front of the user
interface. The USB device must be compatible with the processor. See
page 14
2. Navigate to File Operations.
3. Press [Enter] (ü) to select Save Configuration.
4. The Save Configuration screen displays and the default "Filename: Echo1" is selected.
You can save your file under a name between Echo1 and Echo16.
5. To select a different filename, press [Enter] (ü). The selection will focus on "Echo#".
6. Use [Up] (‡ ) and [Down] (ˆ ) to scroll through the list. Press [Enter] (ü) to make the
selection.
7. Scroll to Save to USB key and press [Enter] (ü). The dialog will display "Saving to USB".
The file will always be saved to the root directory of the USB device.

Load Configuration

Loading a panel configuration file replaces all existing configuration data (circuit assignments,
presets, sequences, and patching) with the new configuration. Before loading a new
configuration onto the Power Control Processor Mk2, ETC recommends saving the existing
configuration file. See
1. Insert a USB storage device in the USB port on the left side of the front of the user
interface. The USB device must be compatible with the processor. See
page 14
2. Navigate to File Operations.
3. Press [Enter] (ü) to select Load Configuration.
4. Press [Enter] (ü) to select Load from USB Key.
5. Use [Up] (‡ ) and [Down] (ˆ ) to scroll through the USB directories. Configuration files are
named Echo#.CFG where the # can be any number from 1–16.
• You can descend into other directories on the USB device by scrolling to the name of
the directory and pressing [Enter] (ü).
• You can return from directories by selecting the ".." entry in a subdirectory location.
6. When you have selected the configuration file to be loaded, press [Enter] (ü). The dialog
will display "Loading Configuration".

Update Firmware

Power Control Processor Mk2 ships with the current version of software installed. The
firmware of your Power Control Processor Mk2 can be field-upgraded as needed. When new
firmware is released, ETC Technical Services can supply the necessary files. Some USB keys may
31
.
Save Configuration above
.
.
Power Control Processor Mk2 Configuration Manual
File Operations
Save Configuration
Load Configuration
Update Firmware
Restore Defaults
