ETC Response Mk2 Setup Manual

ETC Setup Guide
Response Mk2 One-Port Gateway
This guide covers setup and installation of the Response Mk2 One-Port Gateway. You can
configure additional software features using ETC Concert software. Reference the Help system in
Concert for more information. Concert software can be found at etcconnect.com/Concert.
Overview
There are two versions of the One-Port Gateway: a wall-mount version and a portable version.

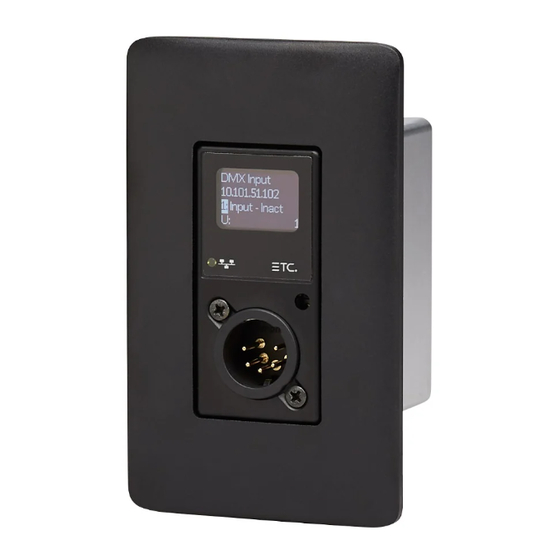

Wall-mount Front View with Faceplate
OLED screen
Network indicator
Label Symbols
The Response Mk2 Gateways are conveniently labeled with relevant symbols for your safety. Refer
to the product label to see which symbols apply to your product.
General warning
This product should not be discarded as unsorted
waste but must be sent to separate collection facilities
for recovery and recycling.
Protective earth (ground)
LED Indicators
• Network - Solid green indicates network connection and blinking indicates network activity
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offices n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong | Dubai, UAE | Singapore
New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX | © 2024 Electronic Theatre Controls, Inc.
Web
Trademark and patent info:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
4268M2220 Rev G Released 2024-07
Touch to
Wake Sensor
Available connectors:
DMX Out (XLR socket)
DMX In (XLR plug)
etcconnect.com | Support support.etcconnect.com
etcconnect.com/ip
Wall-mount Front View
Avertissement général
Ce produit ne doit pas être jeté avec les déchets
ménagers mais doit être déposé dans une collecte de
déchets électroniques ou dans un point de collecte.
Protection Classe I Mise à la terre
| Contact etcconnect.com/contactETC
| Third-party license agreement info: etcconnect.com/licenses
Wall-mount Back View
Back
button
Up
button
Down
button
Enter
button
Reset
button
Ethernet
Aux power
Termination
switch
