ETC Setup Guide
Response Mk2 One-Port Gateway
This guide covers installation and basic setup of the Response Mk2 One-Port Gateway. You can
configure additional software features using the Net3 Concert software from ETC. Reference the Help
system built into Concert for more information. Net3 Concert software can be found at
etcconnect.com/Concert.

Overview

There are two versions of the One-Port Gateway: a wall-mount version and a portable version.

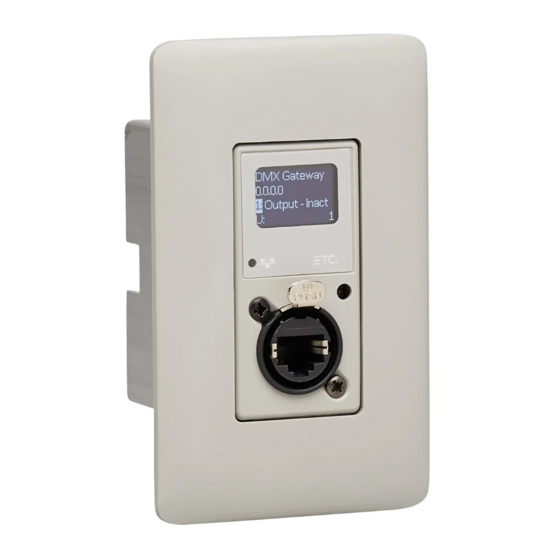

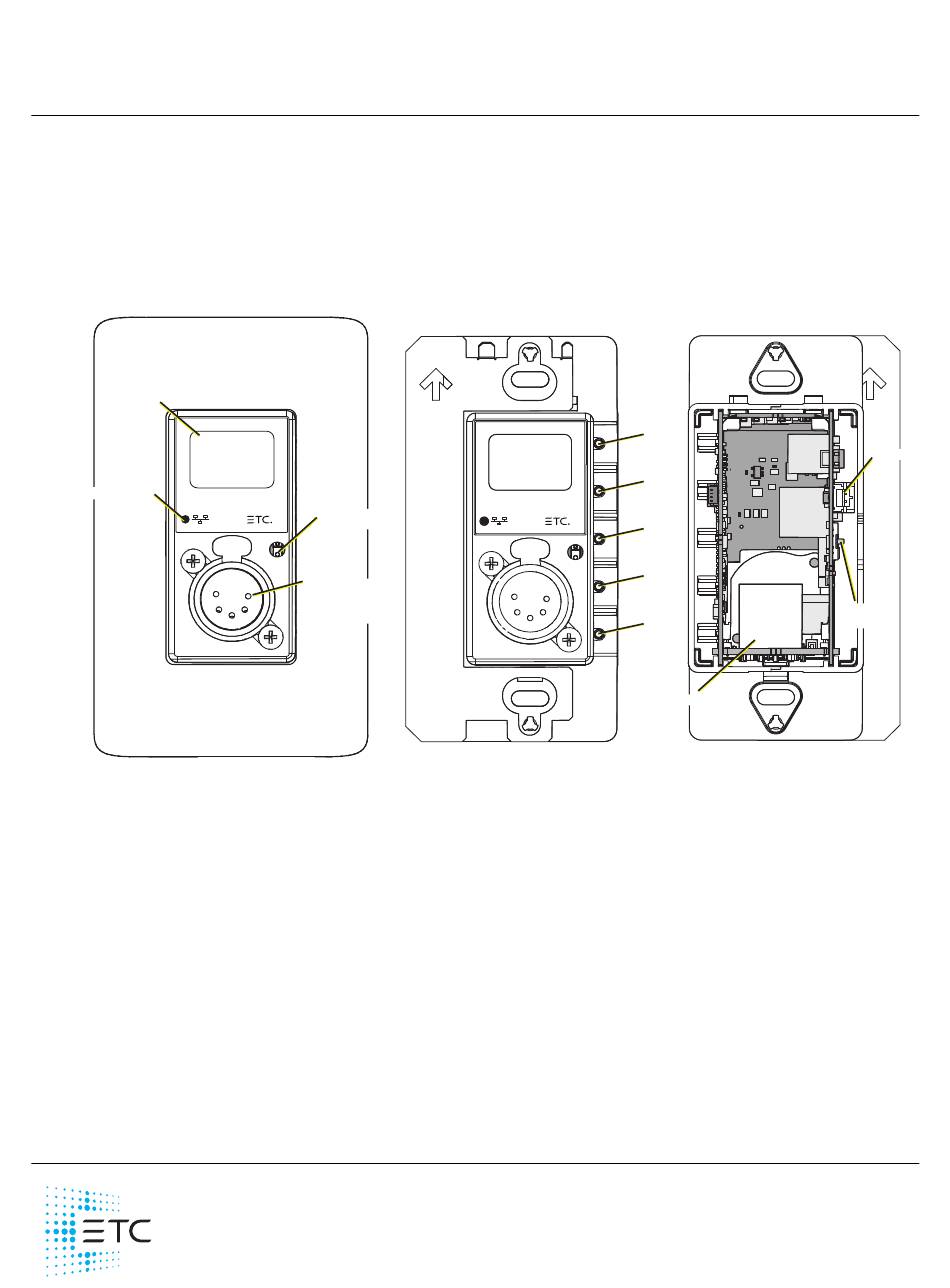

Wall-mount Front View with Faceplate
OLED screen
Network indicator
Action Buttons
Up, Down, Back buttons - The Back button allows you to return to the previous menu or option
•
and the Up and Down buttons navigate between menu options
Enter - The Enter button allows you to advance to the next available menu option or commit a
•
modified selection
Reset - The Reset button provides a physical button to reset the gateway
•
Touch to Wake Sensor - Cover the sensor with your hand to wake the display
•
LED Indicators
Network - Solid green indicates network connection and blinking indicates network activity
•
Corporate Headquarters Middleton, WI, USA +1 608 831 4116 London, UK +44 (0)20 8896 1000
Holzkirchen, DE +49 (80 24) 47 00-0 Rome, IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 Paris, FR +33 1 4243 3535
Web
© 2019 Electronic Theatre Controls, Inc. Trademark and patent
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
4268M2220 Rev A Released 2019-07
Touch to
Wake Sensor
Available connectors:
DMX Out (XLR Female)
DMX In (XLR Male)
DMX RJ45
etcconnect.com
Support
support.etcconnect.com
Wall-mount Front View
Contact
etcconnect.com/contactETC
info: etcconnect.com/ip
Wall-mount Back View
Up
button
Down
button
Left
button
Enter
button
Reset
button
Ethernet
Aux power
Termination
switch
